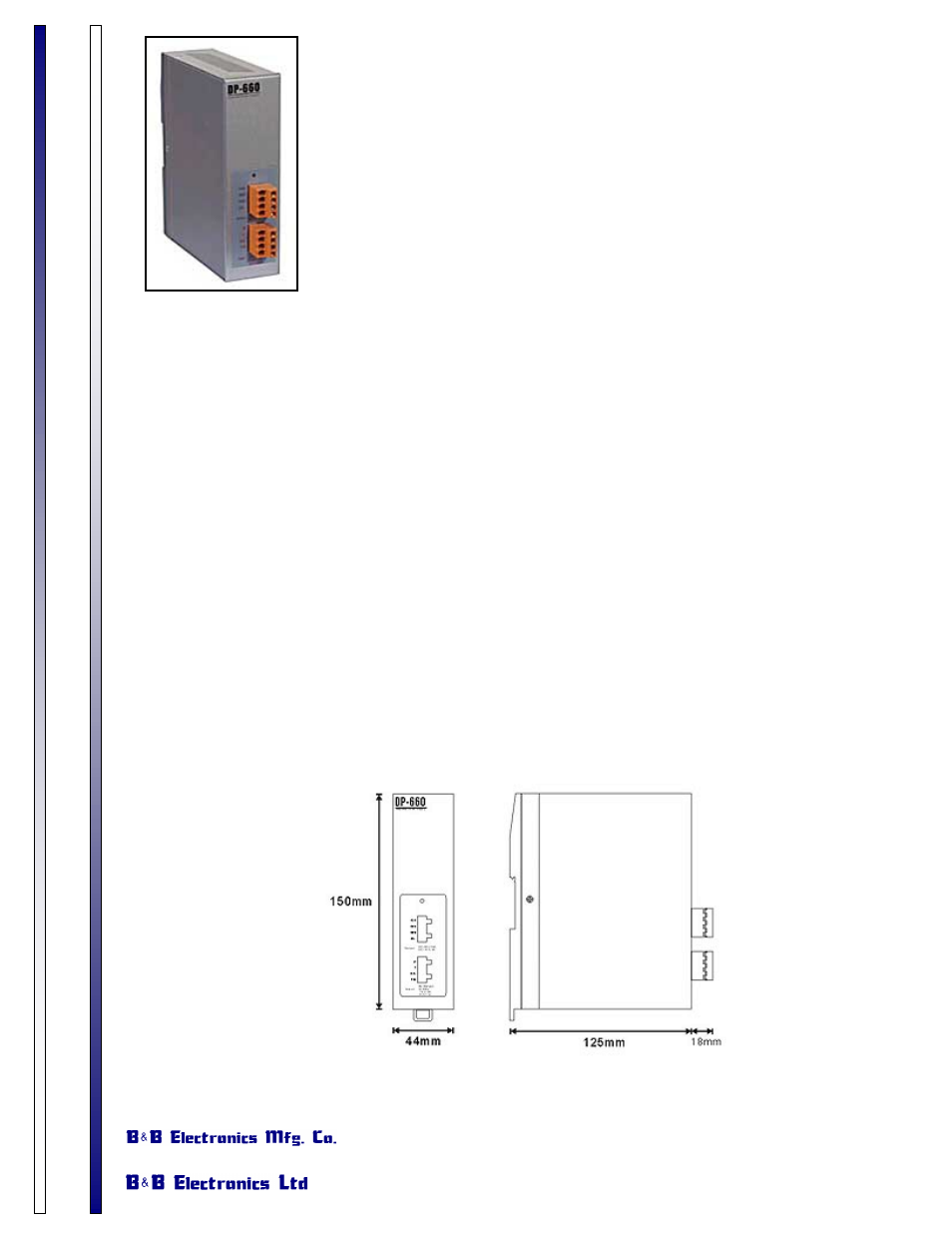

Model DP-660
DIN Mount Power Supply
with 24VDC and 5VDC Outputs
Model DP-660 is a 65 watt, universal input switching mode power supply intended to power devices in motor or
solenoid applications. It has a built in +5V 3T-regulator for logical control circuits.
85 to 270 VAC, 47 to 63 Hz AC input. DC output: +24VDC @ 1.7A and +5 VDC@ 0.5A. Terminal block input and
output. DIN rail mount
.
Specifications
Input voltage: 85 to 270 VAC
AC input frequency: 47 to 63 Hz
DC outputs: +24VDC@ 1.7A 24 VDC @ 1.7A
5VDC@ 0.5A 5 VDC @ 0.5A
Dimensions: 5.9 x 5.6 x 1.7 in (15 x 14.3 x 4.4 cm)
Inrush current (cold start): Less than 30A @ 115VAC
Less than 60A @ 230VAC
Efficiency: Higher than 70% at rated load and 115 VAC
Holdup time: 16 ms at rated load and 115VAC
Over-voltage protection: Hiccup mode
Short circuit protection: Latch off
Over-voltage protection: Latch off
Operating temperature: 0 to 50 °C (32 to 122 °F)
Cooling: Free air convection
Storage temperature: -40 to +85 °C (-40 to 185 °F)
