The
N-TRON ®
7018FX2 gigabit capable Industrial Ethernet Switch
offers outstanding performance and ease of use. It is ideally suited
for connecting Ethernet enabled industrial and/or security equipment
and is a fully managed switch.
PRODUCT FEATURES
• Fourteen 10/100BaseTX RJ-45 Ports
• Two 100BaseFX Ports, ST or SC Style
• Two Optional SFP (Mini-GBIC) Gigabit Transceivers
• 1000BaseSX/LX Fiber with LC style connectors or
• 1000BaseT Copper with RJ-45 connectors
• -40 o C to 70 o C Operating temperature
• ESD and Surge Protection Diodes on all Ports
• Auto Sensing 10/100BaseTX, Duplex, and MDIX
• Redundant Power Inputs (10-30VDC)
• High Voltage Option (40-160VDC)
• Confi gurable Alarm Contact & Bi-Color Fault Status LED
Fully Managed Features:
• SNMP v1, v2, v3 and Web Browser Management
• Detailed Ring Map and Fault Location Charting
• N-Ring
™ Technology with ~30ms Healing
• N-View ™ OPC Monitoring
• N-Link ™ Redundant N-Ring Coupling
• Plug-and-play IGMP Support
• 802.1Q tag VLAN and Port VLAN
• 802.1p QoS and Port QoS
• EtherNet/IP™ CIP Messaging
• LLDP (Link Layer Discovery Protocol)
• Port Trunking
• Port Mirroring
• 802.1d, 802.1w, 802.1D RSTP
• DHCP Server, Option 82 relay, Option 61
Management Features
The
7018FX2
offers several management functions that can be easily
confi gured using a web browser.
IGMP Snooping - Internet Group Management Protocol allows the
7018FX2 switch to forward and fi lter multicast traffi c intelligently.
VLAN - Virtual Local Area Network allows you to segment the switch
in order to create two or more separate local area network domains.
QoS - Quality of Service provides prioritization of network traffi c in
order to provide better network service. QoS improves the latency of
prioritized Ethernet packets required for ring management, real-time,
and other interactive applications.
Port Trunking - Trunking (link aggregation) enables multiple physical
ports to be linked together and function as one uplink to another
N-TRON
trunking capable switch confi gured in the same manner,
thereby increasing the bandwidth between switches. This confi guration
can provide increased bandwidth and redundancy to applications
requiring high levels of fault tolerant operation.
Port Mirroring - Allows the traffi c on one port to be duplicated and sent
to a designated mirror port. Port mirroring is used to monitor Ethernet
traffi c on the designated source port using the assigned mirror port.
DHCP-DHCP Server / Client automates the assignment of IP addresses.
DHCP Option 82 assures that if a device on a specifi c port is replaced,
the replacement receives the same IP address as the original device.

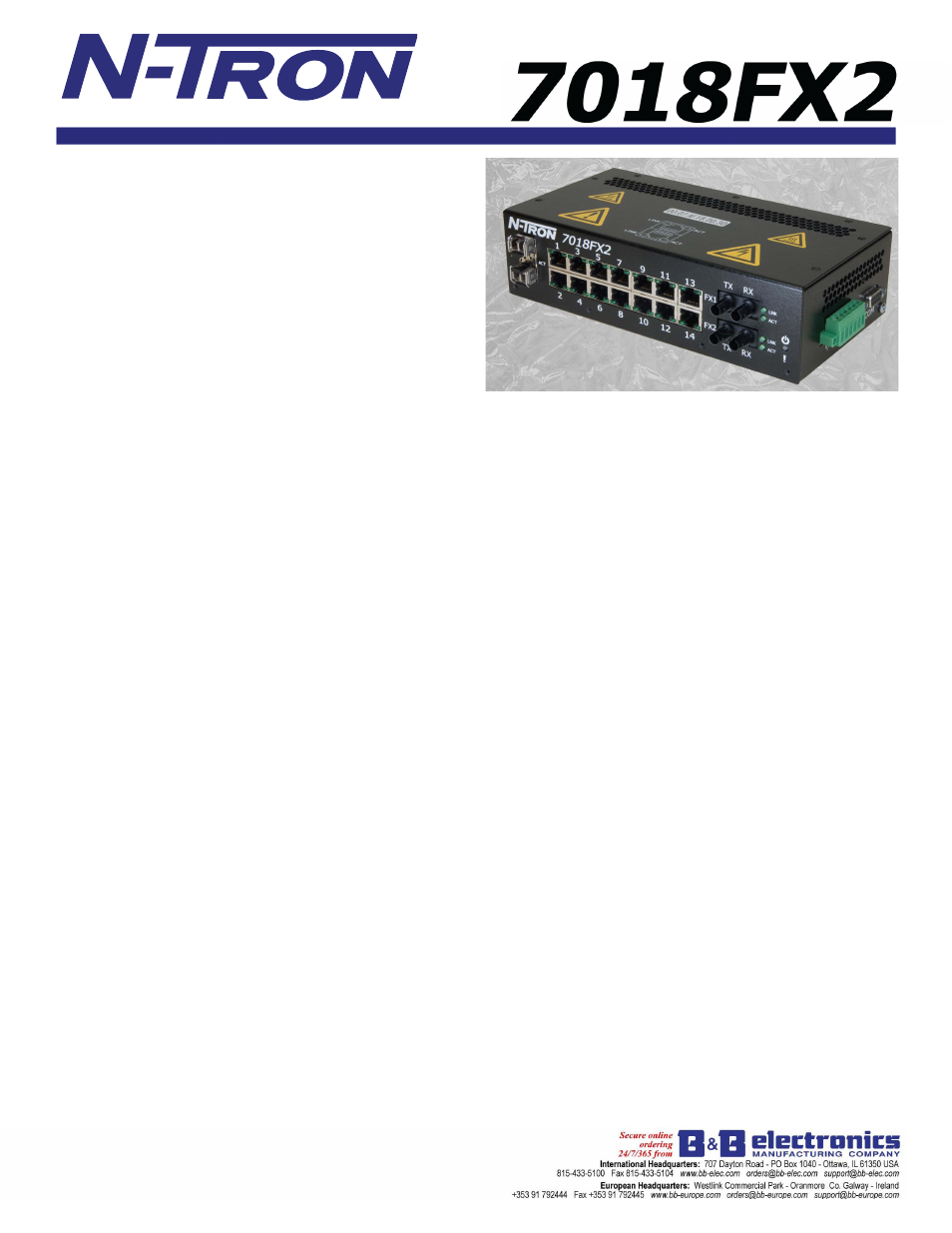

Shown with Optional Gigabit
SFP Transceivers installed
Rapid Spanning Tree Protocol
RSTP allows the switch to be confi gured in a ring or mesh topology,
and provides support for redundant path communications with high
speed (rapid) healing.
Remote Monitoring Options
For ease of confi guration and monitoring, the
7018FX2
offers web
browser management and
N-VIEW
OLE for process control (OPC)
server software. The
N-TRON N-VIEW
software can be combined
with popular HMI software packages to add network traffi c monitoring,
trending, and alarming to any application using
N-TRON
switches In
addition, SNMP is available for switch link and status monitoring. The
alarm contact and status LED can be confi gured to respond to power
failure on power input 1 or input 2,
N-Ring
broken, partial break high,
partial break low, or if multiple ring managers are detected.
N-Ring Technology
N-TRON's 7018FX2
ring manager using
N-TRON's N-Ring
technology offers expanded ring size capacity, detailed fault
diagnostics, and a standard healing time of ~30ms. The 7018FX2
ring manager periodically checks the health of the ring via
packets. If the ring manager stops receiving these health check
packets, it converts the ring to a linear topology within ~30ms.
When all
switches in the ring are N-TRON fully managed switches, a detailed
ring map and fault location chart will also be provided on the ring
manager’s web browser and OPC server to identfy the health status of the
ring.
N-Link™
allows the linking of two
N-Rings
. Up to 250 fully
managed
N-TRON
switches can participate in
N-Ring
topologies.
Industrial Packaging and Specifi cations
The
7018FX2
is designed to operate in industrial environments. It is
housed in a rugged steel DIN-Rail enclosure. It has extended industrial
specifi cations and features to meet or exceed the operating parameters
of connected equipment. These include extended temperature ratings,
extended shock and vibration specs, redundant power inputs, and high
MTBF (greater than 2M hours).
Ease of Use
The 10/100BaseTX ports are auto sensing and auto confi guring. Each
copper port is automatically negotiated for maximum speed and
performance by default, but can also be hard coded through the user
interface. The two optional gigabit ports support full 2000 Mb/s
communications via 1000BaseSX/LX/T. For added fl exibility, these
SFP (Mini-GBIC) gigabit transceivers are fi eld upgradable or can be
factory installed at the time of purchase.
