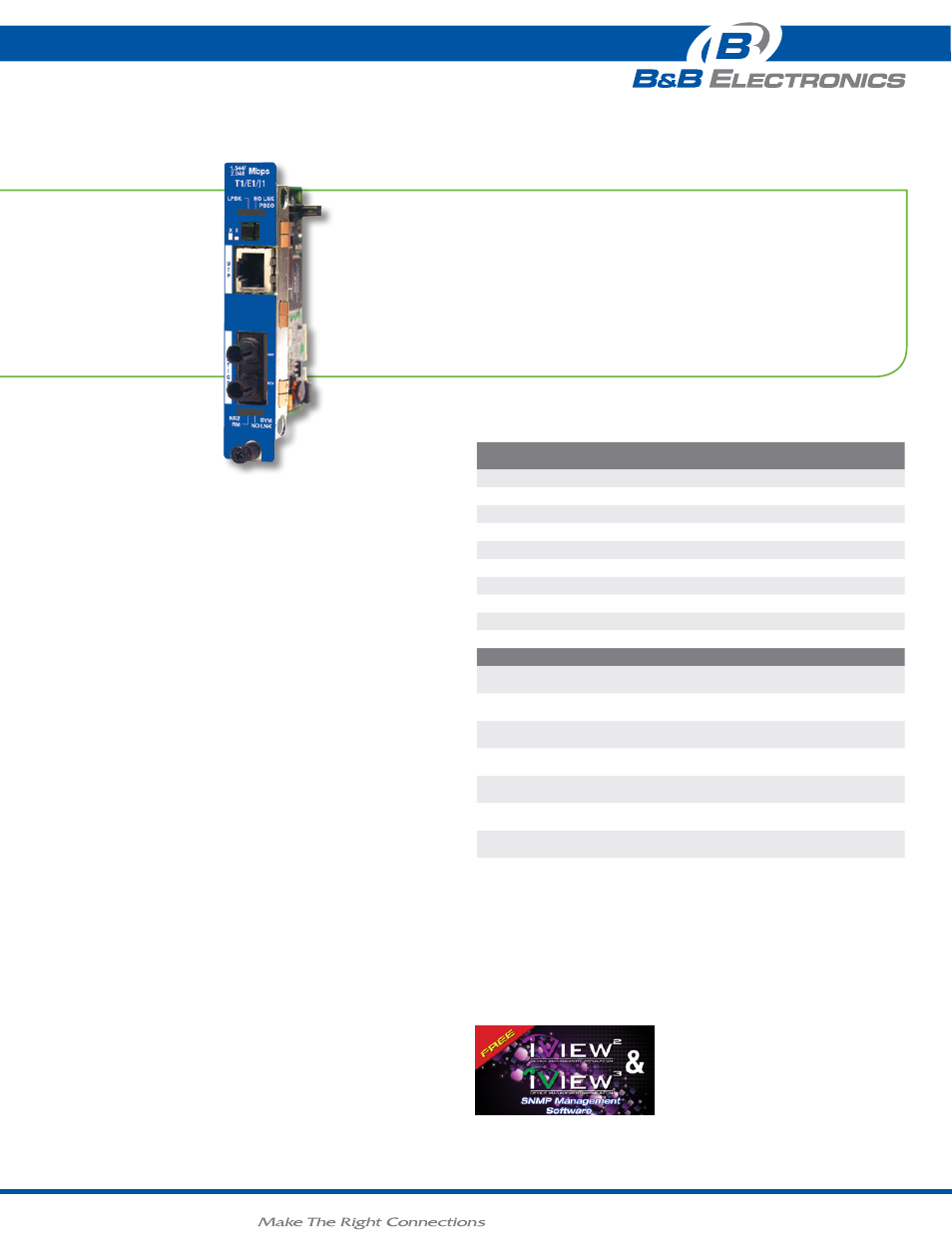

t1/E1/J1 media converter
iMcV-T1/E1/J1 Repeater
t1/E1/J1 media converter
iMcV-T1/E1/J1 Repeater
SNMP-manageable, the iMcV-T1/E1/J1 converter series of modules
extend 1.544 Mbps T1/J1 and 2.048 Mbps E1 copper-based PBX,
router and switch circuits over regular duplex fiber or single-strand
fiber optics. Supporting fiber distances of up to 80 km, the iMcV-T1/
E1/J1 series of converters include built-in jitter removal, line integrity
testing, diagnostic tools (Loopback mode and Transmit Data Source)
and remote management features.
Select from the iMcV-T1/E1/J1, offering standard repeater-like
functionality, or the IE-iMcV-T1/E1/J1-LineTerm which incorporates
advanced features such as Line Terminating functionality and config
control, support for both Alarm Indication Signals (AIS) and Remote
Alarm Indications (RAI).
Both versions are installed as a HOST-REMOTE pair and can be
remotely managed when the HOST is installed in an iMediaChassis
with an SNMP–Management Module. This enables network managers
to conduct loopback testing, to monitor, and to manage units located
up to 80 km away.
• Operates at (T1/J1 1.544 Mbps) and (E1 2.048 Mbps)
• Conduct Loopback tests, monitor/manage units via GUI-based iView2
• Remote unit supports secure, out-of-band management
• Available for multi-mode, single-mode, or single-strand fiber
• Supports fiber and copper remote loopback control
• Layer 1 modules
• LED display for monitoring of line diagnostics
ordErIng InFormatIon
Model
nuMBer
FiBer
FiBer
Ports range
ethernet
Ports
ethernet
ConneCtor
iMcv-t1/e1/J1 repeater
850-14198 MM850-ST
1 2 km 1 RJ48
850-14199 MM850-SC 1 2 km 1 RJ48
850-14200 MM1300-ST 1 5 km 1 RJ48
850-14201 MM1300-SC 1 5 km 1 RJ48
850-14202 SM1310/PLUS-ST 1 40 km 1 RJ48
850-14203 SM1310/PLUS-SC 1 40 km 1 RJ48
850-14204 SM1310/LONG-ST 1 80 km 1 RJ48
850-14205 SM1310/LONG-SC 1 80 km 1 RJ48
850-14206 SM1550/LONG-SC 1 80 km 1 RJ48
single strand FiBer *
850-14288 MM1310-SC
(1310xmt/1550rcv)
1 2 km 1 RJ48
850-14289 MM1550-SC
(1550xmt/1310rcv)
1 2 km 1 RJ48
850-14290 SM1310-SC
(1310xmt/1550rcv)
1 20 km 1 RJ48
850-14291 SM1550-SC
(1550xmt/1310rcv)
1 20 km 1 RJ48
850-14292 SM1310/PLUS-SC
(1310xmt/1550rcv)
1 40 km 1 RJ48
850-14293 SM1550/PLUS-SC
(1550xmt/1310rcv)
1 40 km 1 RJ48
850-14294 SM1310/LONG-SC
(1310xmt/1550rcv)
1 60 km 1 RJ48
850-14295 SM1550/LONG-SC
(1550xmt/1310rcv)
1 60 km 1 RJ48
iMcV-T1/E1/J1 also available in CWDM Fiber.
Call for details.
* These products have single-strand fiber technology. Deploy in pairs or connect another compatible
B&B IMC LLC single-strand fiber product.
product FEaturEs
iView: Windows 2000/XP/Vista/Win7
iMcV-T1/E1/J1 Repeater_3713ds
