10/100 mbps Ethernet
media converter
iMcV-MediaLinX & IE-iMcV-MediaLinX
(dimensions in inches )

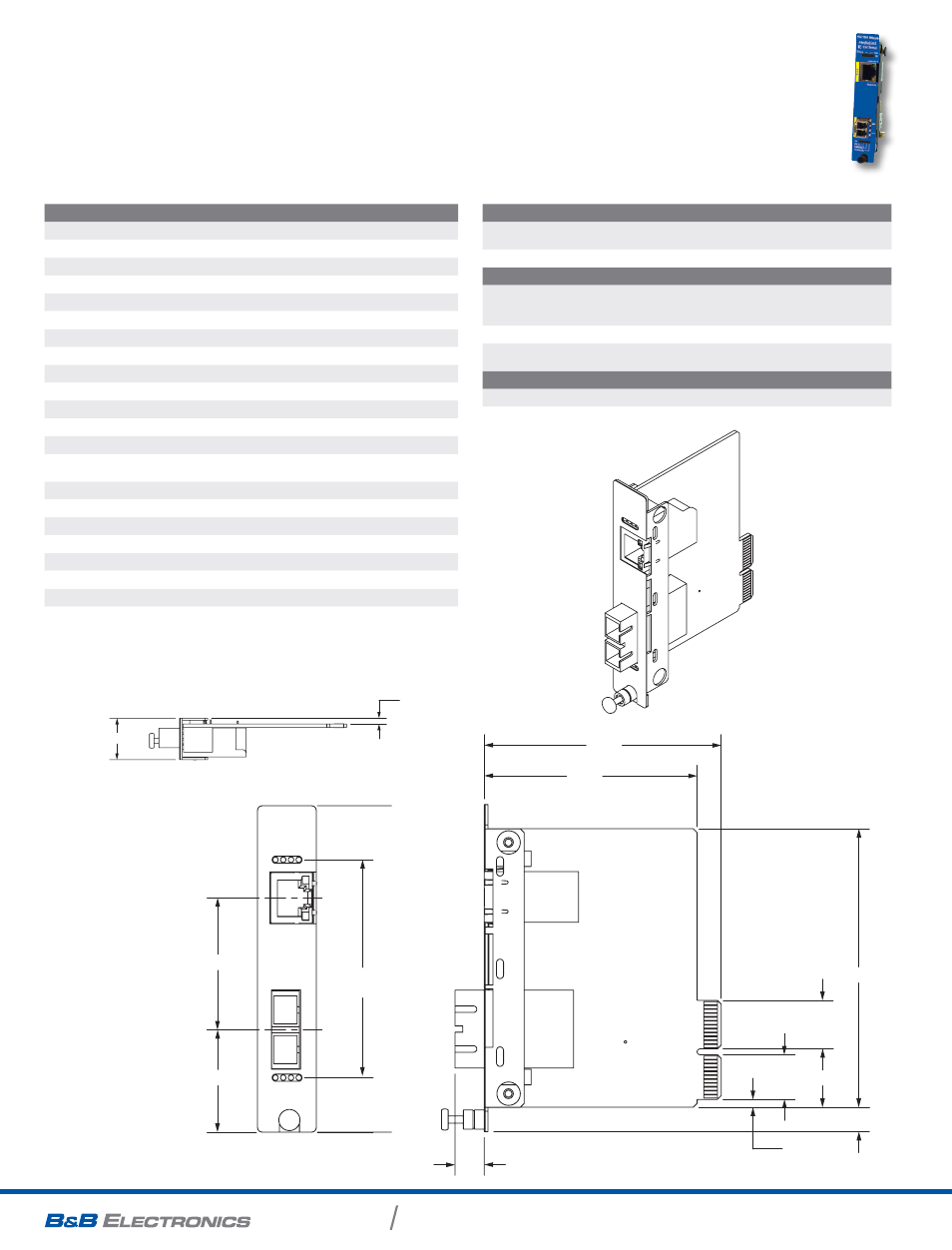

mEchanIcal dIagram
SpecificationS
Technical
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3u 100Base-FX or SX fiber
IE-SFP 100/155 Mbps (OC-3) (IE-iMcV-MediaLinX)
Supports jumbo packets up to 1916 bytes
Supports Config Control
Connectors: RJ-45 and ST, SC, LC or SFP
IEEE 802.3x Flow Control
AutoCross for MDI/MDIX
Features LinkLoss and FiberAlert
Features Link Fault Pass-Through (LFPT)
Features Auto Negotiation and Selective Advertising
Layer 2 packet switching, store and forward operation
Forwarding rate: 14,881 pps for 10 Mbps; 148,810 pps for 100 Mbps; 1,488,100
pps for 1000 Mbps (Gig only)
50/125µm or 62.5/125µm multi-mode fiber
9/125µm single-mode fiber
Available for single-strand fiber
Installs in any iMediaChassis or MediaChassis
Supports GUI-Based iView²
Supports Half- and Full-Duplex operation
Includes diagnostic LEDs
Includes hot-swappable architecture
Mechanical
Dimensions
4.19”H x 0.78”W x 2.75”D
(10.74 x 2 x 7.05 cm)
Shipping Weight
0.30 lbs (.11 kg)
environMental
Operating Temperature:
+32° to +122° F (0° to +50° C)
-40° to +185° F (-40° to +85° C) IE-iMcV-
MediaLinX
Storage Temperature:
-13° to +158° F (-25° to +70° C)
Operating Humidity
5% to 95% (non-condensing),
0 – 10,000 ft. altitude
regulatory approvals
FCC Class B
CE
.76
.11
.38
.31
.10
.57 .75
.62
3.57
2.73
3.04
4.19
.70
2.80
1.31
1.69
