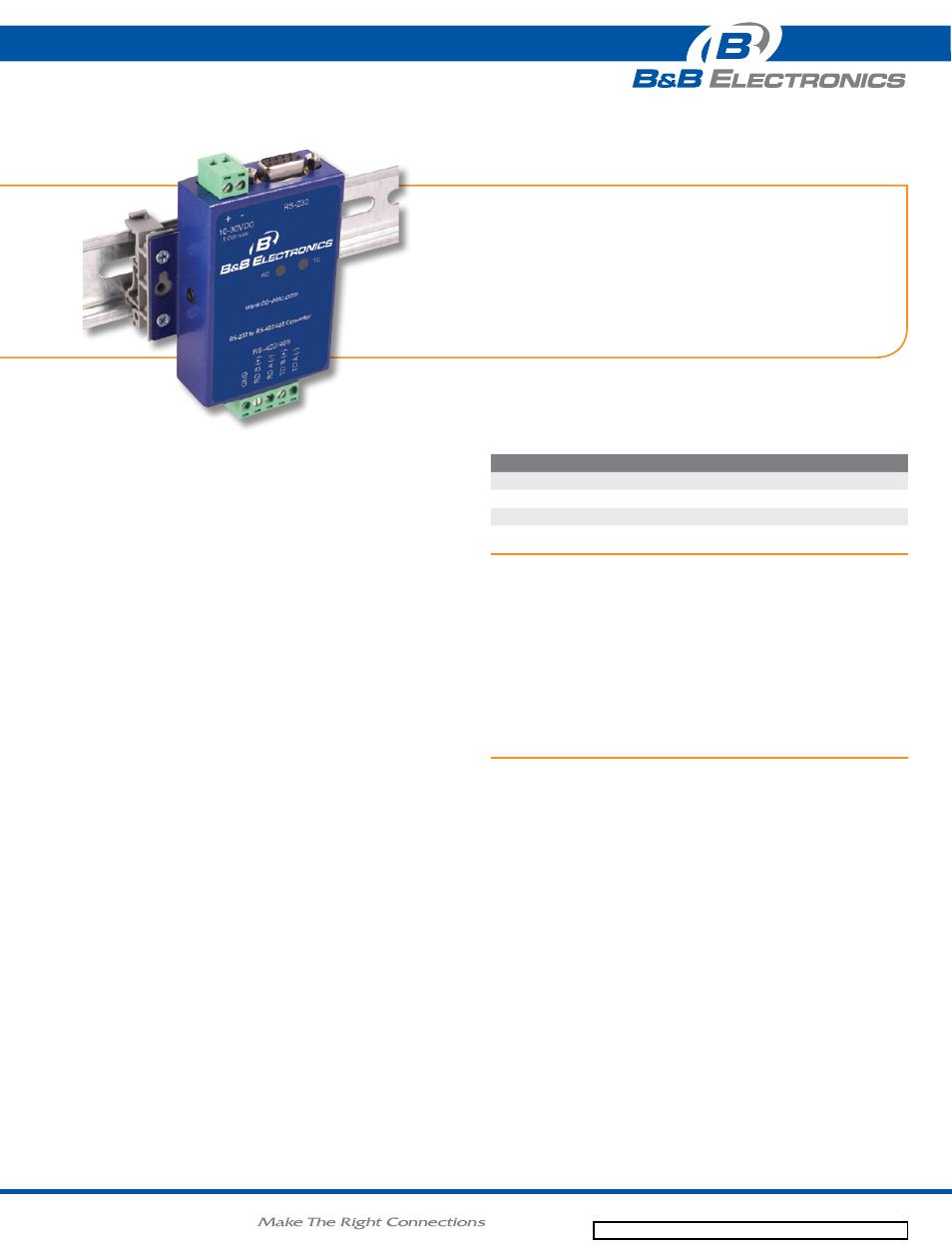

rS-232 to rS-422/485 Converters

SCP211 & SCP311

The SCP series RS-232 to RS-422/485 serial converters are compact
and tough. Each model is designed and tested to meet heavy industrial
EMC standards. The RS-232 signal is connected through a female DB9
connector. The RS-422/485 (2-Wire and 4-Wire) signal is connected
through a removable terminal block, making wiring easy. Power is
connected through a two position removable terminal block. Bit-wise
enabled circuitry automatically detects the character time-out eliminating
the need to set DIP switches for the baud rate.

Basic model SCP211-DFTB3 is non-isolated and made for less demanding
temperature extremes. If you need a wider operating temperature but do
not require isolation, model SCP211T-DFTB3 is available. These models
should be used when isolation is not required, such as applications in
which the data line does not exit the control cabinet.

Model SCP311T-DFTB3 offers 2 kV Isolation and will stand up to -40 to
80° C temperature variations. This is our most rugged model in this series.
The SCP311 is an excellent investment for protecting your expensive
control equipment.

• Isolated and Non-Isolated Models
• ESD Protection - 8 kV Contact, 15 kV Air
• Rugged Metal Case
• Wide Operating Temperature Models
• Panel Mount with Available DIN Rail Adapters
• Built in Switchable Bias & Termination

proDuCt FeatureS

aCCeSSorieS

MDR-40-24 - DIN Rail Mount Power Supply 24VDC, 1.7 A output power
DRAD35 - DIN Rail Mounting Clips 35mm
TBKT1 - Replacement Term Block, 2 position 5.08mm
TBKT2 - Replacement Term Block, 5 position 5.08mm
TBKT4 - (2) Replacement Term Block, 5 position 5.08mm
9PAMF6 - RS-232 serial cable DB9 Male To DB9 Female, 6 ft. (1.8 m)
232AMF500 - RS-232 serial cable DB25 Male To DB25 Female, 6 ft. (1.8 m)

orDering inFormation

Model nuMber

desCriPtion

SCP211-DFTB3

RS-232 to 422/485 Converter

SCP211T-DFTB3

Wide-Temp, RS-232 to RS-422/485 Converter

SCP311T-DFTB3

Wide-Temp, Isolated, RS-232 to 422/485 Converter

SCP211 & SCP311_3713ds
