Heavy industrial rs-232 isolated repeater, 232opdri-ph

www
.
bb
-
elec
.
com
|

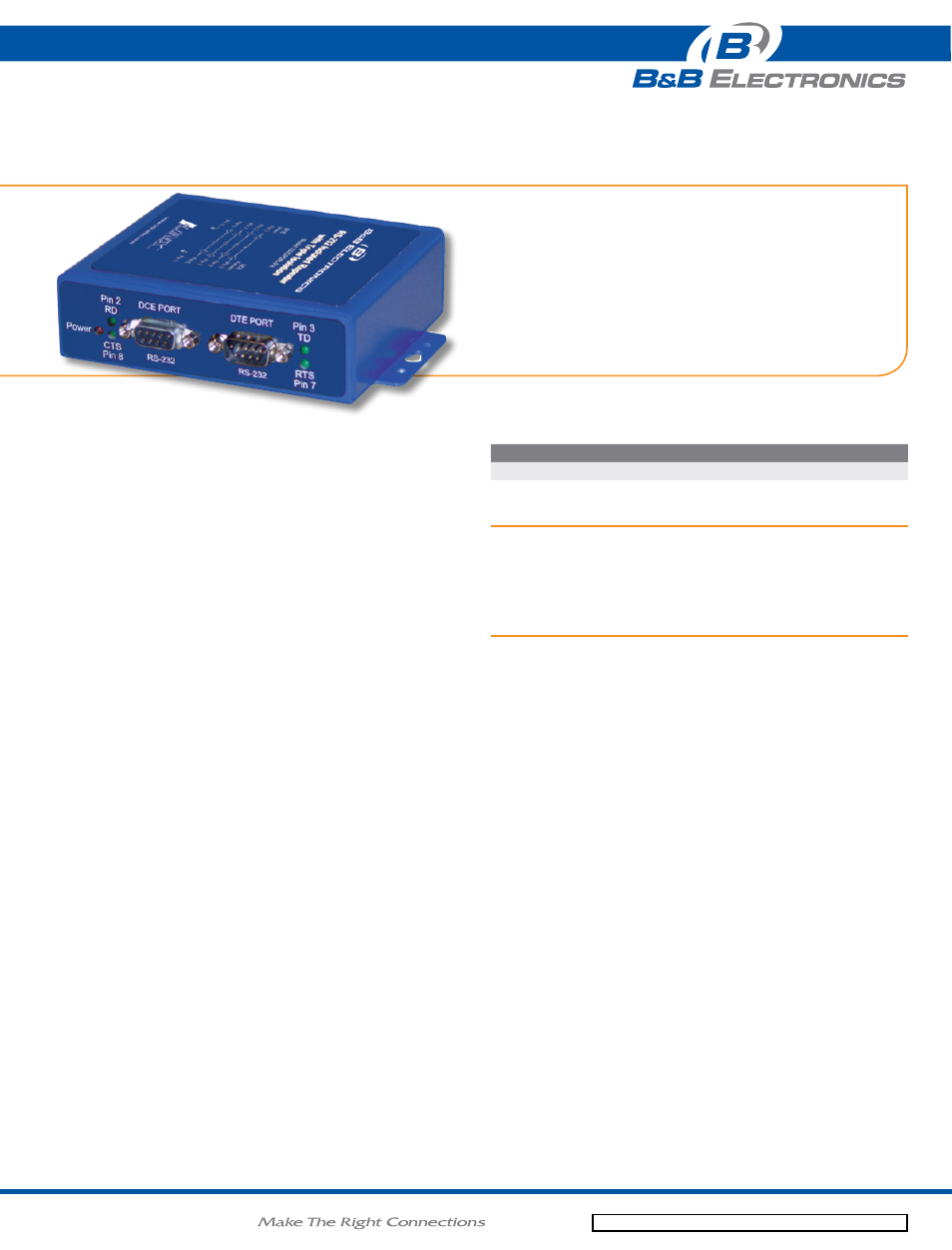

The 232OPDRI-PH is our premium Heavy Industrial RS-232 Isolated
Repeater. Designed for rugged industrial environments, it has been put
through some of the most exacting compliance tests in the industry.
Meeting the requirements of IEC 61850-3 and IEEE 1613, it is suitable for
installation in electrical substations. These specifications are more stringent
than the NEMA TS1/TS2 requirements for transportation applications.
Powerful isolation on both data ports protects your equipment and data
from damaging ground loops and surges. Additional isolation on the power
supply circuits adds a third degree of protection.
Packaged in a rugged IP30 metal case, this repeater operates in wide
temperature extremes. The panel mount form factor with DIN Rail mount
option makes it easy to integrate into your control panel or other industrial
equipment.
Installation and configuration is easy. Data is connected with a DB9 female
connector (DCE) and a DB9 male connector (DTE). Power is connected
through terminal block that accepts 10 to 48 VDC from any external source.
• IEEE-61850-3, IEEE-1613
• NEMA TS2
• -40 to 85°C Operating Temperature
• Rugged IP30 Metal Panel Mount Case
• 50G Shock, 4G Vibration
• 2kV Triple Isolation
• 10 to 48 VDC Input Power
proDuCt FeatureS
aCCeSSorieS
MDR-40-24 - DIN Rail Mount Power Supply 24VDC, 1.7 A output power
DRAD35 - DIN Rail Mounting Kit 35mm
TBKT1 - Replacement Term Block, 2
orDering inFormation
Model nuMber
desCriPtion
232OPDRI-PH
Heavy Industrial RS-232 Isolated Repeater
heavy industrial rS-232 isolated repeater
232OPDRI-PH
