Industrial grade 10/100 miniature
media converters
IE-MiniMc/LFPT & Telco-LFPT
SpecificationS
Technical
IEEE 802.3 10Base-T twisted pair
IEEE 802.3u 100Base-TX twisted pair
IEEE 802.3u 100Base-FX fiber
IEEE 802.3af Power Over Ethernet
Supports jumbo packets up to 1916 bytes
Plug-and-play operation
RJ45 and ST or SC ports available
50/125µm or 62.5/125µm multi-mode fiber
9/125µm single-mode fiber
Available with single-strand fiber support
Includes terminal DC power block
Country-specific, high-reliability power adapter
Auto Negotiation
Auto-Cross for MDI/MDIX
Layer 2 packet switching, store and forward (forwarding rate: 14,881 pps for 10
Mbps, 148,100 pps for 100 Mbps)
Status LEDs
Mechanical
Dimensions
0.83”H x 1.80”W x 3.35”D
(2.11 x 4.57 x 8.51 cm)
Shipping Weight
0.7 lbs (.317 kg)
input specifictaions
DC Terminal (Telco): 12 to 48 VDC
Barrel Connector: 5 to 24 VDC
PoE: Maximum supply voltage is 50V
environMental
Operating Temperature: DC or
PoE (PD)
-13° F to 185° F (-25° C to +85° C)
Operating Temperature: AC wall
adapter
+14° F to +122° F (-10° C to +50° C)
Storage Temperature:
-31° F to +167° F (-35° C to +75° C)
Operating Humidity
5% to 95% (non-condensing)
regulatory approvals
FCC Class A (using DC terminal or PoE power)
FCC Class B (using any DC jack, optional)
UL/cUL, CSA, CE

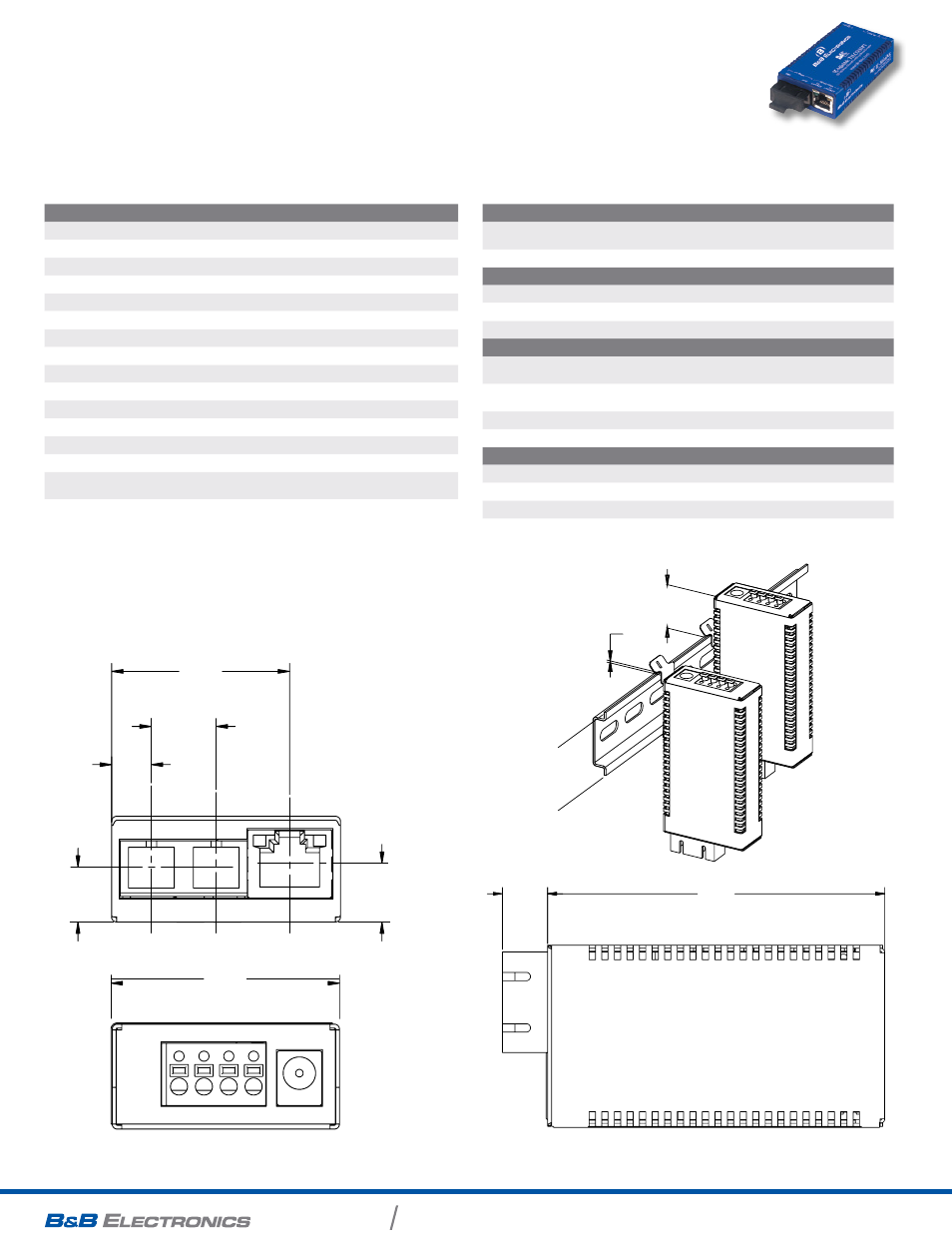

mEchanIcal dIagram
(dimensions in inches & millimeters)
(85,1)
3.35
(11,4)
.45
(7,9)
.31
(12,9)
REF
.51
(35,6)
1.40
(11,0)
.43
(11,7)
.46
(31,75)
1.25
(1.0)
.04
(26,4)
1.04
(46,0)
1.81
