The Giga-AccessEtherLinX-II enables service providers to offer
differentiated “Transparent LAN” services to multi-tenant building
and business customers without the need for costly remote routers.
Residing at the customer premises, the Giga-AccessEtherLinX-II
provides a VLAN-based, Layer 2 entry point to the last mile fiber
network to support trunking, differentiating and separating customer
traffic. Featuring SNMP management with per-port 802.1Q VLAN,
802.1p QoS, traffic prioritization, bandwidth control and multicast
pruning/snooping (using IGMP v1, v2), the Giga-AccessEtherLinX-II
is perfect for a wide range of Fiber-to-the-Home, Fiber-to-the-Curb
and Fiber-to-the-Business (FTTx) services, and is an ideal solution
for delivering Ethernet-based services to customers quickly and cost
effectively. Designed with a small footprint, the Giga-AccessEtherLinX-
II facilitates easy installation inside the premises. It features four
10/100/1000 twisted pair Ethernet downlink ports (for connecting
users/LANs), with either a 1000Base-FX fiber or SFP uplink port, and is
powered from an internal AC or DC power supply.
The Giga-AccessEtherLinX-II accepts traffic containing VLAN tags on
the Uplink port and directs that traffic to the twisted pair downlink
ports based on the VLAN ID. In addition to assigning 802.1Q VLAN-tags
on a per-port basis, users can also “Qualify” the different VLAN TAGS
to assign based on the DiffServ or PRI value of the incoming frame.
Traffic priority for each port is supported with a hi/low prioritization
queues. The Giga-AccessEtherLinX-II includes per port bi-directional
bandwidth control, and supports IGMP multicast pruning which ensures
only the necessary amount of IP multicast packets are bridged.
• 802.1Q VLAN-tags on per-port basis, based on DiffServ or PRI values
• SNMP Manageable
• QoS - 802.1p-based packet prioritization
• Per-port bi-directional Bandwidth control
• VLAN-tagging and Q-in-Q (double-tagging) segregates customer traffic
• Up and running in less then five minutes
product FEaturEs
ordErIng InFormatIon
Model
nuMBer
FiBer
FiBer
Ports range
ethernet
Ports
ethernet
ConneCtor
giga-accessetherlinx-ii dC
852-32302 SFP
1 Various 4 RJ45
852-32303 SX-MM850-SC 1 550 m 4 RJ45
852-32304 LX-SM1310-SC 1 15 km 4 RJ45
852-32305 LX-SM1310/PLUS-SC 1 40 km 4 RJ45
852-32306 LX-SM1550/PLUS-SC 1 80 km 4 RJ45
852-32307 LX-SM1550/XLONG-SC 1 100 km 4 RJ45
single strand FiBer *
852-32310 SSLX-SM1310-SC 1 15 km 4 RJ45
852-32311 SSLX-SM1550-SC 1 15 km 4 RJ45
852-32312 SSBX-SM1310-SC 1 10 km 4 RJ45
852-32313 SSBX-SM1490-SC 1 10 km 4 RJ45
852-32314 SSLX-SM1310/PLUS-SC 1 40 km 4 RJ45
852-32315 SSLX-SM1550/PLUS-SC 1 40 km 4 RJ45
852-32316 SSBX-SM1310/PLUS-SC 1 30 km 4 RJ45
852-32317 SSBX-SM1490/PLUS-SC 1 30 km 4 RJ45
852-32318 SSLX-SM1490/LONG-SC 1 70 km 4 RJ45
852-32319 SSLX-SM1550/LONG-SC 1 70 km 4 RJ45
10/100/1000 mbps managed multi-port
optical demarcation device

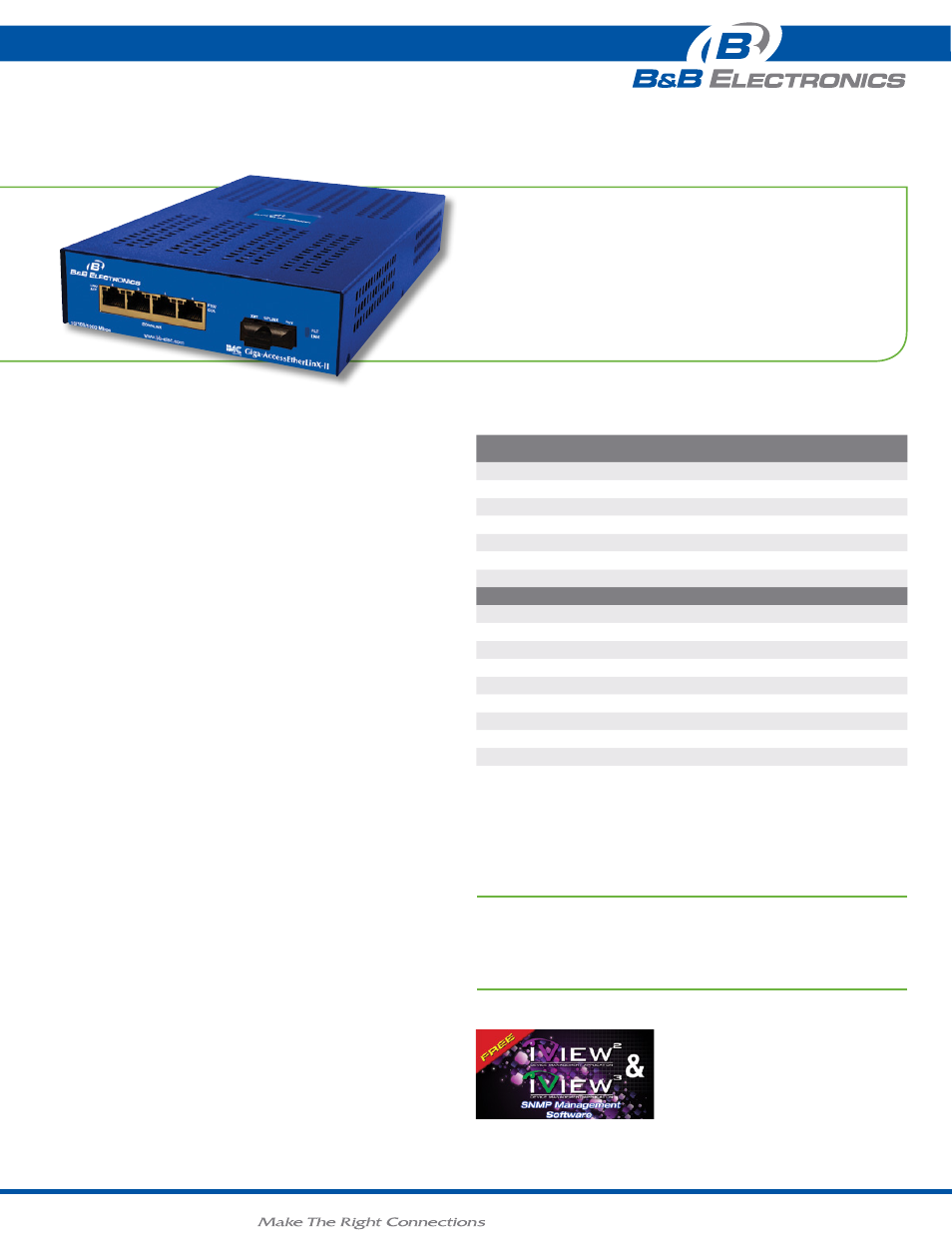

Giga-AccessEtherLinX-II DC Version
* These products have single-strand fiber technology. Deploy in pairs or connect another compatible
B&B IMC LLC single-strand fiber product.
Giga-AccessEtherLinX-II DC also available in CWDM Fiber.
Call for details.
accEssorIEs
895-39226 - Rackmount Bracket
895-39949 - Rackmount Shelf
iView: Windows 2000/XP/Vista/Win7
Giga-AccessEtherLinX-II DC Version_3713ds
