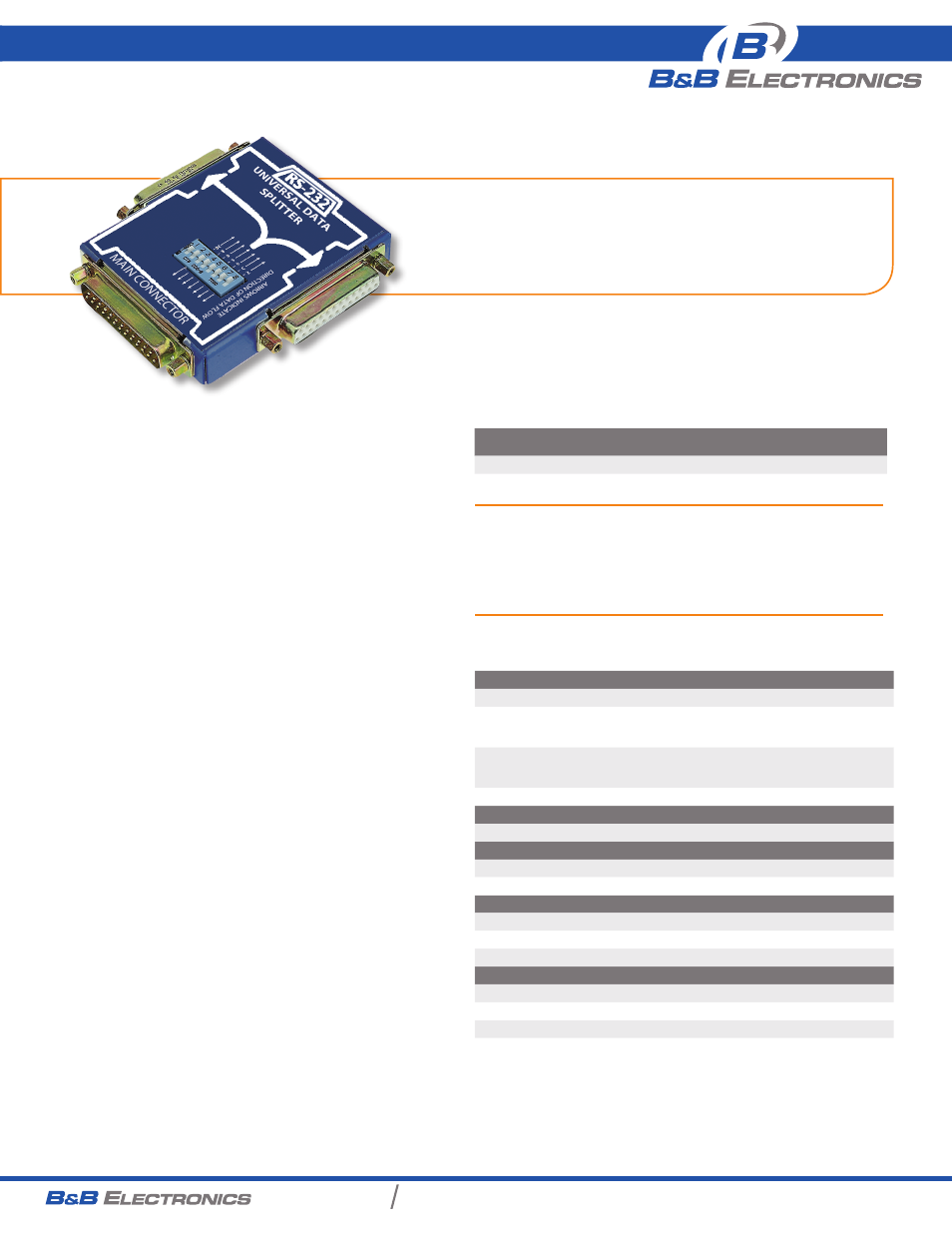

rS-232 universal Data Splitter

232UDS

Model

232uds universal serial data splitter,can be connected so that any

two RS-232 devices can connect to any one RS-232 device. For example,
two computers can share the same modem or serial printer at the same
time and each can remain connected at all times.

The 232UDS can function as either an modem data splitter or a printer data
splitter. It allows you to switch select which lines are OR’d together and
which lines are passed straight through. This unit is self-powered from the
RS-232 line and can be left permanently installed.

• Share your printer or modems
• Use as either a modem or printer data splitter
• Program data flow via DIP switch

proDuCt FeatureS

aCCeSSorieS

232SGM - DB25 Gender Reverser – Changes Female Port to Male (M to M)
232SGF - DB25 Gender Reverser – Changes Male Port to Female (F to F)
232AMF5 - DB25 Male to DB25 Female, 6 ft. (1.8 m)

SpeCiFiCationS

serial teChnology

rs-232

Connectors

DB25 female

DB25 male

DB25 female

Pins Supported

Pins 1 through 8, 20.

(Pins 1 and 7 connected between all 3 connectors.)

(Other pins programmable for data flow direction.)

Installation

In-line

isolation

2,000 VDC

Power

Power

Port-powered

Source

RS-232 handshake lines

MeChaniCal

Weight

176.9 grams (0.39 lbs)

MTBF

400449

MTBF Calc. Method

Parts Count Reliability Prediction

environMental

Operating Temperature

0 to +70 °C (+32 to +158 °F)

Storage Temperature

-40 to +85 °C (-40 to +185 °F)

Operating Humidity

0 to 95% Non-Condensing

orDering inFormation

Model

nuMber

ConneCtor

Main ConneCtor

ConneCtor

232UDS

DB25 Female

DB25 Male

DB25 Female

232UDS_3713ds
