10/100/1000 mbps managed
multi-port optical
demarcation device
Giga-AccessEtherLinX-II AC Version
SpecificationS
General
Monitors (remote) status without a physical presence or separate “IP” connection
through UMA
Maintains security; all management traffic can remain isolated from the data traffic
Read/write IEEE 802.1Q VLAN-tags
Q-in-Q (double-tagging) to further segregate customer VLAN traffic
Can assign different TAGS based on DiffServ or PRI values of incoming frames.
QoS: IEEE 802.1p-based or DSCP packet prioritization
(2 queues [high/low] with 8 levels of priority)
VLAN Tag-based on DSCP or priority of incoming frame (“traffic grooming”)
Layer 2 packet switching, store and forward operation
Forwarding rate: 14,881 pps for 10 Mbps; 148,810 pps for 100 Mbps; 1,488,100
pps for 1000 Mbps
Includes per-port bi-directional bandwidth control
AutoCross for MDI/MDIX
Features Auto Negotiation and Selective Advertising
MTU: Supports packets up to 9600 bytes
Supports Half- and Full-Duplex operation
Supports IEEE 802.3x Flow Control
ManaGeMent
Includes GUI-based iView² software, featuring
iConfig utility for rapid IP configuration
SNMP V1 and V2c compatible
Includes DHCP client for IP address assignment
Features TFTP client for remote upgrades
Supports Telnet - Includes DB-9 connector for
serial configuration
Includes per port loopback test modes
Includes diagnostic LEDs
ethernet Protocols suPPorted
802.3 10Base-T twisted pair
802.3u 100Base-TX twisted pair
802.3ab 1000Base-T twisted pair
802.3z 1000Base-LX or SX fiber
Mechanical
Dimensions
1.64” H x 5.64” W x8.95” D
(4.2 cm x 14.3 cm x 22.7 cm)
Enclosure Metal
Shipping Weight 1.6 lbs. (0.6 kg)
Power rating
100-240V AC, 50/60Hz, 0.5/0.25A
environMental
Operating Temperature +32° to 122° F (0° to +50° C)
Storage Temperature -13° to +158°F (-25° to +70°C)
Operating Humidity 5 to 95% Non-condensing
regulatory aPProvals
FCC Class B
UL/cUL, CE, CB
1.76
9.30
.64
2.63
.56
2.300
.83
.82
1.030
.550
3X
.97
.96
1.03
1.13

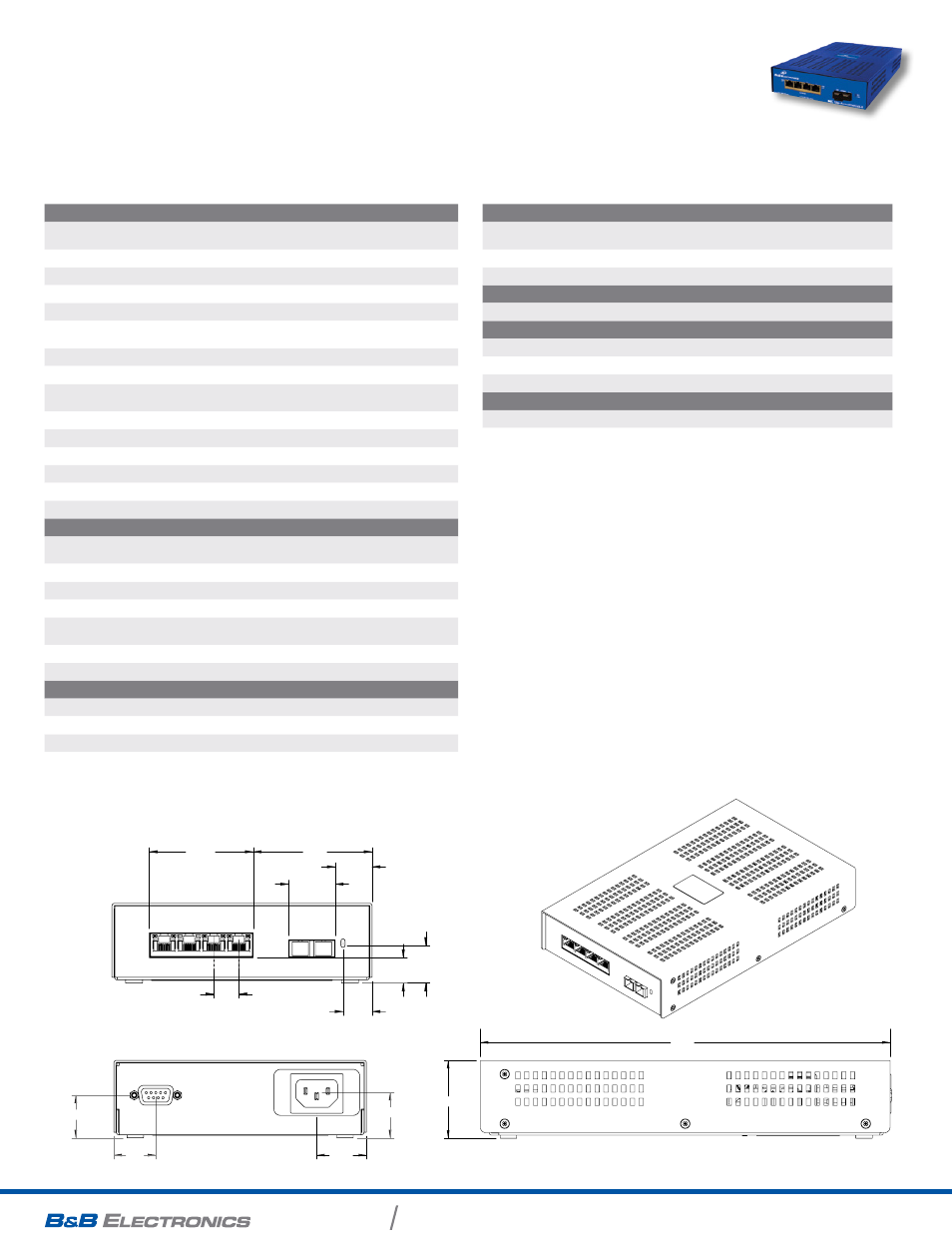

mEchanIcal dIagram
(dimensions in inches)
