ds3/E3 repeaters with remote management

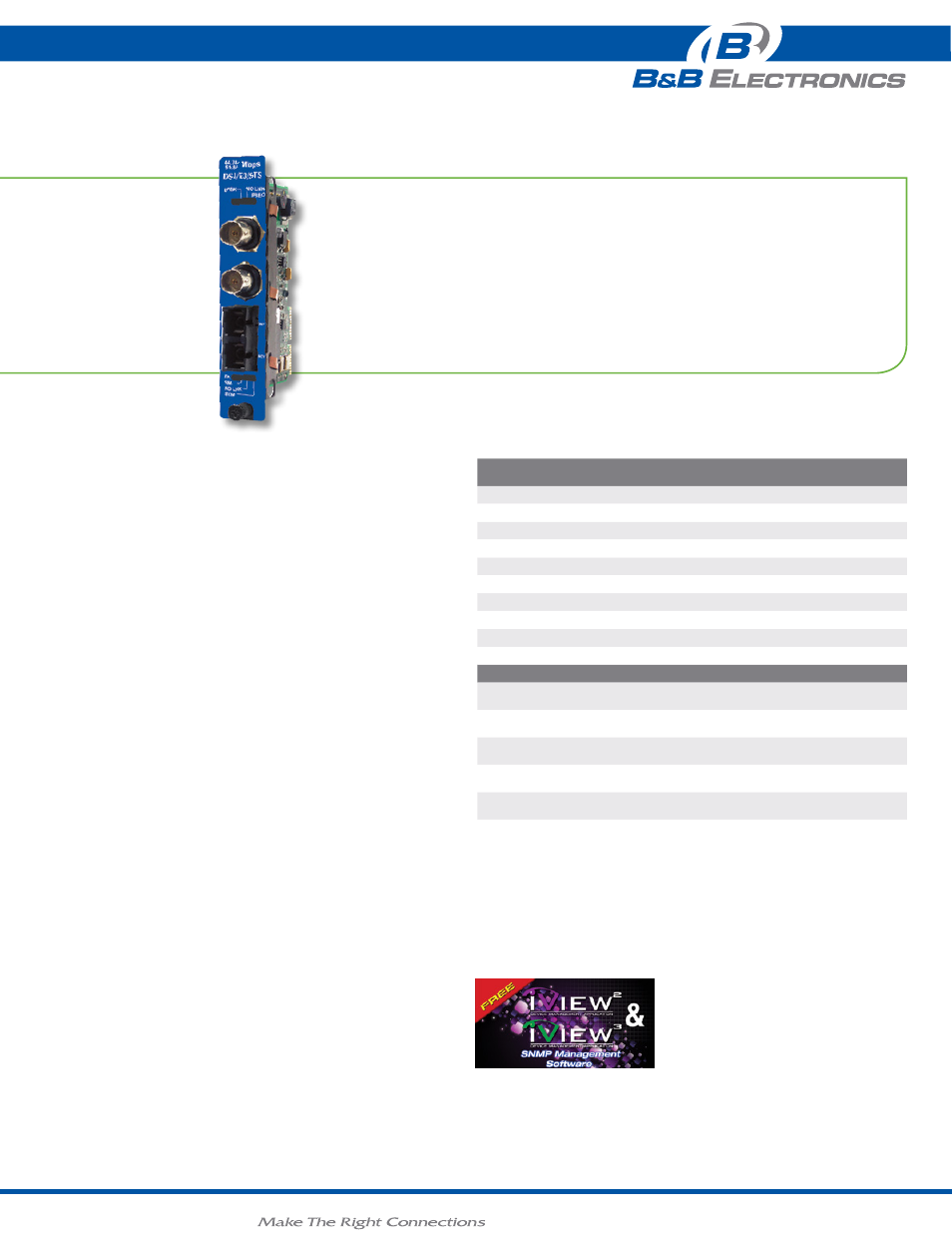

iMcV-DS3/E3/STS Repeater
iMcV-DS3/E3/STS converters are perfect for service providers and
enterprise campus networks utilizing DS3/E3/STS coaxial circuits.
The modules enable users to convert coax media to single-mode
fiber and extend the distance of data transmissions over MAN access
networks up to 80 km. The modules support premises networking
applications to convert the incoming circuit to fiber for distribution into
the structured cabling system.
Choose from versions offering repeater-like functionality or Line-
Terminating functionality; all models are Layer 1 devices.
All versions of modules are installed as a HOST-REMOTE pair and can
be remotely managed when the HOST is installed in an iMediaChassis
with an SNMP–Management Module. This enables network managers
to conduct loopback testing, to monitor, and to manage units located
up to 80 km away. Since B&B Electronics’ management technology
functions transparently to the user data, real-time, end-to-end
management is provided at all times.
• Operates at 45 Mbps (DS3), 34 Mbps (E3) or 52 Mbps (STS-1)
• Conduct Loopback tests, monitor/manage units via GUI-based iView2
• Remote unit supports secure, out-of-band management
• Available for multi-mode, single-mode, or single-strand fiber
• Layer 1 modules
• Supports fiber and coax remote loopback control
• LED Line Diagnostics
ordErIng InFormatIon
Model
nuMBer
FiBer
FiBer
Ports range
BnC
Ports
iMcv-ds3/e3/sts repeater
850-14338
MM850-ST 1 2 km 2
850-14339 MM850-SC 1 2 km 2
850-14300 MM1300-ST 1 5 km 2
850-14301 MM1300-SC 1 5 km 2
850-14302 SM1310/PLUS-ST 1 40 km 2
850-14303 SM1310/PLUS-SC 1 40 km 2
850-14304 SM1310/LONG-ST 1 80 km 2
850-14305 SM1310/LONG-SC 1 80 km 2
850-14306 SM1550/LONG-SC 1 80 km 2
single strand FiBer *
850-14310
SSFX-SM1310-SC
(1310xmt/1550rcv)
1 20 km 2
850-14311
SSFX-SM1550-SC
(1550xmt/1310rcv)
1 20 km 2
850-14312
SSFX-SM1310/PLUS-SC
(1310xmt/1550rcv)
1 40 km 2
850-14313
SSFX-SM1550/PLUS-SC
(1550xmt/1310rcv)
1 40 km 2
850-14314
SSFX-SM1310/LONG-SC
(1310xmt/1550rcv)
1 60 km 2
850-14315
SSFX-SM1550/LONG-SC
(1550xmt/1310rcv)
1 60 km 2
iMcV-DS3/E3/STS also available in CWDM Fiber.
Call for details.
* These products have single-strand fiber technology. Deploy in pairs or connect another compatible
B&B IMC LLC single-strand fiber product.
product FEaturEs
iView: Windows 2000/XP/Vista/Win7
iMcV-DS3/E3/STS Repeater_3713ds
