8 Port managed gB Industrial
ethernet switches
EIR608-2SFP & EIR608-4SFP
sPecIFIcAtIons
technology
IEEE Standards
802.3 10Base-T Ethernet, 802.3u 100Base-TX and
100Base-FX Fast Ethernet, 802.3ab 1000Base-TX;
802.3x Flow Control and Back Pressure, 802.1d
Spanning Tree, 802.1w Rapid Spanning Tree; 802.1p
Class of Service, 802.1Q VLAN Tag, 802.3z Gigabit
fiber, 802.3ad Port Trunk with LACP, 802.1x User
Authentication
Processing Type Store and Forward
Flow Control
Flow control on full duplex, Back Pressure on half
duplex
MAC Address Table Size 8 KB
Packet Buffer
1M bit
Flash ROM 4M byte
DRAM 32M byte
Protocol CSMA/CD
Management SNMP (v2, v2C, V3), Web GUI, TELNET, CLI.
Management Security
Up to 10 IP addresses can have permission to manage
the switch. 802.1x (RADIUS) Authentication
Transfer Rate
14,880 pps 10BaseT, 148,800 100BaseTX/FX,
1,488,000 Gigabit
Packet throughput ability 23.8 Mbps @ 64 bytes
X-Ring
2 ports for X-Ring provide redundant backup with a
recovery time below 300 MS.
Packet Filter
4 Selection Rules to filter combinations of Broadcast ,
Multicast, Unicast, and Unknown packets.
VLAN
Port based / Tag (256 entries) / VLAN ID (up to 4K) /
GRVP (256 groups) / Double Tag VLAN (Q in Q)
Private VLAN
Port Trunk
LACP Port Trunk. 4 Trunk Groups. Maximum 4 Trunk
Members
Class of Service 4 priority queues per port
Quality of Service
Port based, Tag and IPv4 Type of Service, IPv4 / IPv6
Different Service
IGMP
IGMP snooping v1, v2. 256 multicast groups and IGMP
query
Clock Synchronization SNTP
Port Mirror TX packet only or TX and RX packet
Firmware Update TFTP
DHCP
DHCP Client Function to obtain addresses from DHCP
server
Bandwidth Control Ingress Packet Filter rules and Egress Rate Control
interFace
LAN/WAN Ports
EIR608-2SFP: (6) RJ45 10/100/1000, (2) RJ-45
10/100/1000 or SPF Mini-GBIC Combo (RJ45 disabled
when SFP installed), (SFP ports are 100/1000);
EIR608-4SFP: (4) RJ45 10/100/1000, (4) SPF Mini-
GBIC (SFP ports are 100/1000)
Console Port RS-232 RJ-45 (Adapter Cable Included)
Port Indicators (each
port)
Green LED for Link / Activity, Green LED for speed
1000M, Green LED for SFP Link Activity
System Indicators
Green LEDs for Power, Power 1, Power 2, and Master.
Yellow LED for Fault.
Power
Input Voltage 12 to 48 VDC, dual source
Power Consumption 11.2 W max
Input Connection Terminal Block
Relay Alarm 1A @ 24V
enVironMental
Operating Temperature 14 to 140°F (-10 to 60°C)
Storage Temperature -40 to 185°F (-40 to 85°C)
Operating Humidity 0 to 95% NC
MTBF EIR608-2SFP 220593
MTBF EIR608-4SFP 286945
Mechanical
Enclosure IP30 Aluminum Case
Mount 35 mm DIN or Panel
Dimensions 7.4 x 10.7 x 16.3 cm (2.9 x 4.2 x 6.4 in)
regulatory aPProVals
EMI
FCC Class A
EN6100-4-2, -4-3, -4-4,
EN6100-4-5, -4-6
Safety EN60950
Free Fall IEC60068-2-32
Shock IEC60068-2-27
Vibration IEC60068-2-6
snMP MiB snMP traP
RFC 1213 MIBII Up to 3 Trap Stations
RFC 1493 Bridge MIB Cold Start
RMON RFC 1757 Port link up
RFC 2674 VLAN MIB Port link down
RFC 1643 Ethernet like MIB Authentication Failure
RFC 1215 Trap MIB Power status
RFC 1157 SNMP MIB Port Alarm
RSTP MIB Fault Alarm
Private MIB for switch info X-Ring

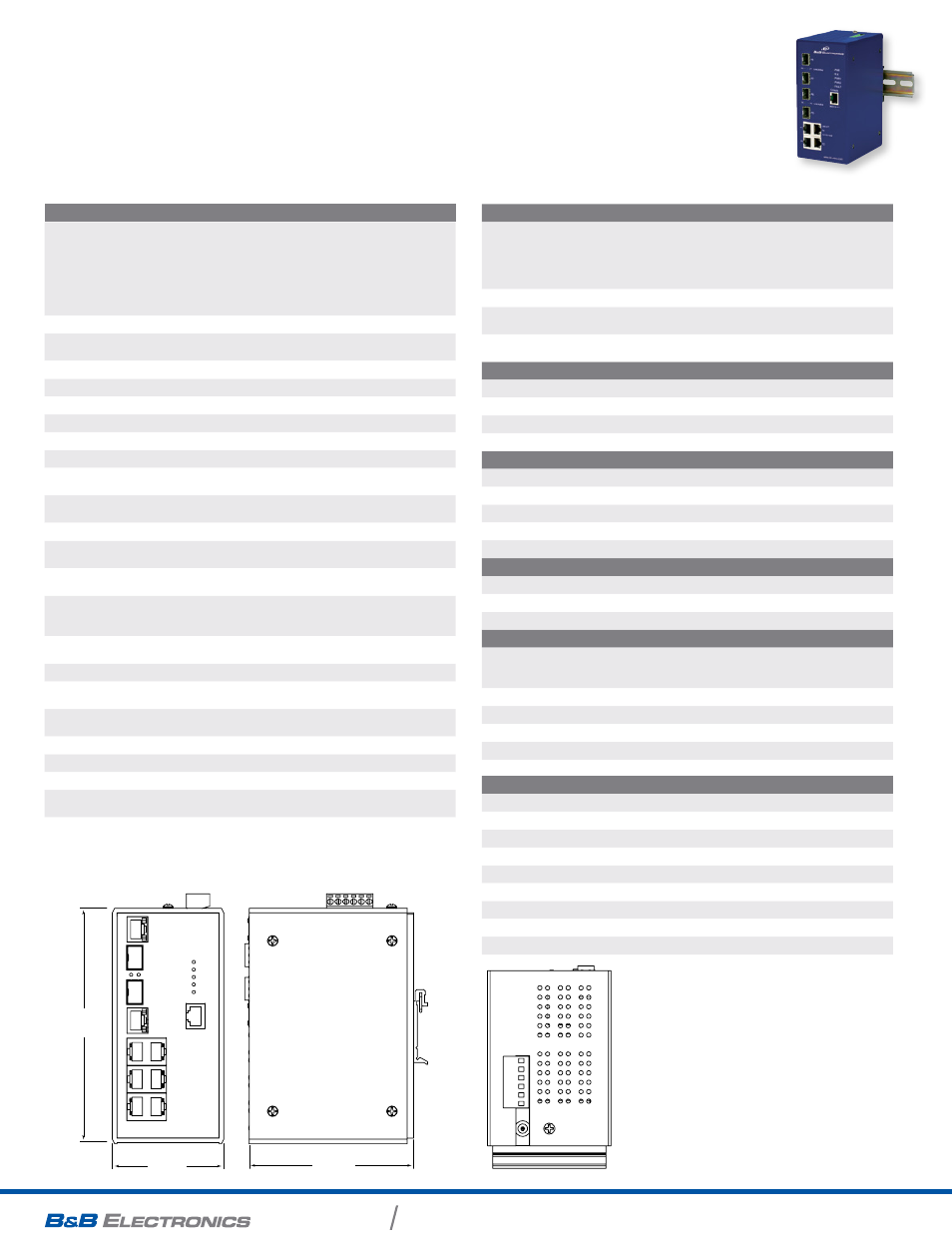

mechAnIcAl dIAgrAm
7.20 cm
2.83 in
10.62 cm
4.18 in
15.20 cm
5.98 in
