Features

www.advantech.com/products

Online Download

Provides 4 x 10/100 Mbps Ethernet ports with RJ-45 connector
Provides 1 x 100 Mbps multi/single-mode fiber port with SC/ST connector
Supports full/half duplex flow control
Supports Integrated Loop-up engine
Supports MDI/MDI-X auto crossover
Provides broadcast storm protection
Supports +10 ~ 30 V

DC

voltage power input

Provides surge (EFT) protection 3,000 V

DC

for power line

Supports 4,000 VDC Ethernet ESD protection
Provides flexible mounting: DIN-rail, Wall, Stack
Supports operating temperatures from -10 ~ 65° C











ADAM-6521 Series

Specifications

Communications

Standard

IEEE 802.3, 802.3u, 802.3x

LAN

10/100Base-T, 100Base-FX

Transmission Distance Ethernet : Up to 100 m

Multi-mode Fiber : Up to 2 km
(ADAM-6521, ADAM-6521/ST)
Single-mode Fiber : Up to 15 km (ADAM-6521S)

Transmission Speed

Up to 100 Mbps

Interface

Connectors

4 x RJ-45, 1 x SC type fiber connector (ADAM-6521,
ADAM-6521S) or 1 x ST type fiber connector
(ADAM-6521/ST)
2-pin removable screw terminal (power)

LED Indicators

Power, Link (100Base-FX), 100/10M (Ethernet)

Power

Power Consumption

ADAM-6521, ADAM-6521/ST: Max. 3 W
ADAM-6521S: Max. 4 W

Power Input

1 x Unregulated 10 ~ 30 V

DC

Mechanism

Dimensions (W x H x D) 70 x 112 x 27 mm
Enclosure

IP30, ABS+PC with solid mounting kits

Mounting

DIN 35 rail, Wall, Stack





Protection

ESD (Ethernet)

4,000 V

DC

Surge (EFT for power) 3,000 V

DC

Environment

Operating Temperature -10 ~ 65° C (14 ~ 149° F)

stack : -10 ~ 60° C (14 ~ 140° F)

Storage Temperature -20 ~ 80° C (-4 ~ 176° F)
Operating Humidity

20 ~ 95% (non-condensing)

Storage Humidity

0 ~ 95% (non-condensing)

MTBF

1,150,000 hrs

Certifications

Safety

UL 60950-1, CAN/CSA-C22.2 No.60950

EMC

U.S.A.: FCC Part 15 CISPR 22
EU: EN55011, EN61000-6-4

EN55022 Class A,

EN61000-3-2/3,

EN55024,

IEC61000-4-2/3/4/5/6/8/11

EN61000-6-2

Ordering Information

ADAM-6521

Industrial Ethernet Switch with 4 x 10/100Base-TX
Ports & 1 Multi-mode SC Type Fiber Optic Port

ADAM-6521/ST

Industrial Ethernet Switch with 4 x 10/100Base-TX
Ports & 1 Multi-mode ST Type Fiber Optic Port

ADAM-6521S

Industrial Ethernet Switch with 4 x 10/100Base-TX
Ports & 1 Single-mode SC Type Fiber Optic Port






Industrial Ethernet

Switches with 4 x

10/100Base-TX Ports

& 1 x 100Base-FX

Fiber Optic Port

Introduction

ADAM-6521 and ADAM-6521S are industrial-grade Ethernet switch with a fiber optic port that makes it possible to expand industrial networks fast and cost-effectively. ADAM-6521
and ADAM-6521S of 1 fiber port and 4-RJ-45 ports. With fiber optics, you can prevent noise interfering with your system and implement transmission distances up to 15 km.
ADAM-6521 and ADAM-6521S are especially suited for industrial environments with Ethernet networking needs such as: semi-conductor factories, inventory control environments,
assembly line and production and more.
ADAM-6521 and ADAM-6521S support a wide voltage range of +10 ~ 30 V

DC

over the terminal block, and 3,000 V

DC

surge (EFT) protection to protect it from being damaged by

over-voltage. A wide operating temperature range from -10 to 65° C (14 ~ 149° F), makes it functional in harsh operating environments. They also have six inclusive LED indicators
which make troubleshooting the ADAM-6521 and ADAM-6521S easier. Each port has a pair of LEDs that indicate link status and transmission speed. This function conveniently
informs users of any collisions, the link status, power failure and data receipts for immediate on-site diagnostics.

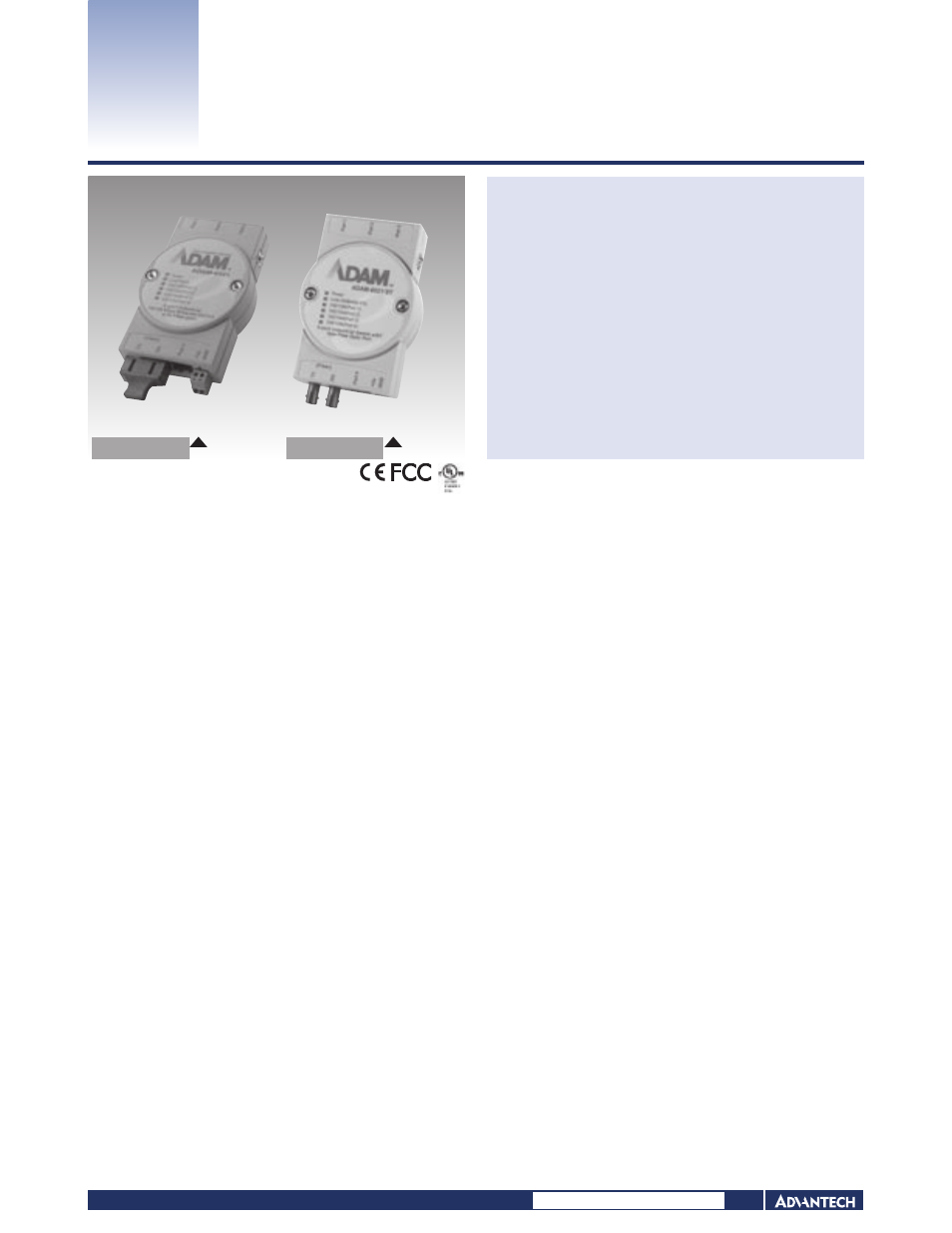

ADAM-6521

ADAM-6521/ST
