EIR-EXTEND-C-0812qsg
4

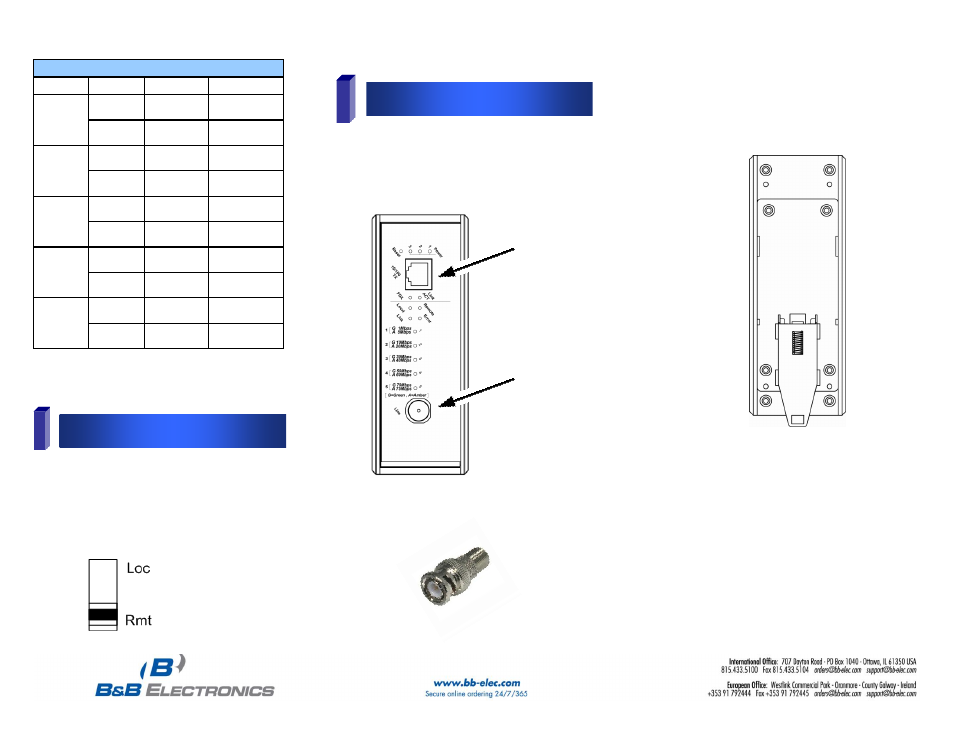

DIP Switch Settings
5 Ports
Top LEDs (BNC Line Connections)
LEDs Status Speed Distance
1 Green 1~ 5Mbps up to 2600M
Amber 6~10Mbps up to 2400M
2 Green 11~16Mbps up to 2000M
Amber 17~20Mbps up to 1800M
3 Green 21~29Mbps up to 1600M
Amber 30~43Mbps up to 1400M
4 Green 44~54Mbps up to 1200M
Amber 55~63Mbps up to 1000M
5
Green 64~74Mbps up to 600M
Amber 75~85Mbps up to 200M
The Ethernet Extender has two ports, a RJ-45
10/100Base TX port and the Ethernet Extender port.
Existing coaxial cable can be used. If coaxial cable
requires termination, use BNC or F-connectors. F style
will require BNC to F-Type adaptor. When BNC extender
ports on the units are connected, Lnk LED should be lit.
Ethernet Extender mode settings are made very simple by
means of a switch at the top of the Ethernet Extender. One
device must be set to local (Loc) and the other to
remote (Rmt) before devices are connected.
It makes no difference which unit is designated local and
remote as long as they are not both set the same.
BNC to F-Type Adaptor
Note: Distance and speed may vary. The above table
represents the maximum performance which can be
expected under ideal conditions.
Spring loaded DIN rail clip on
back of Ethernet Extender
BNC port
RJ-45 10/100Bas TX port
