Product Overview
2

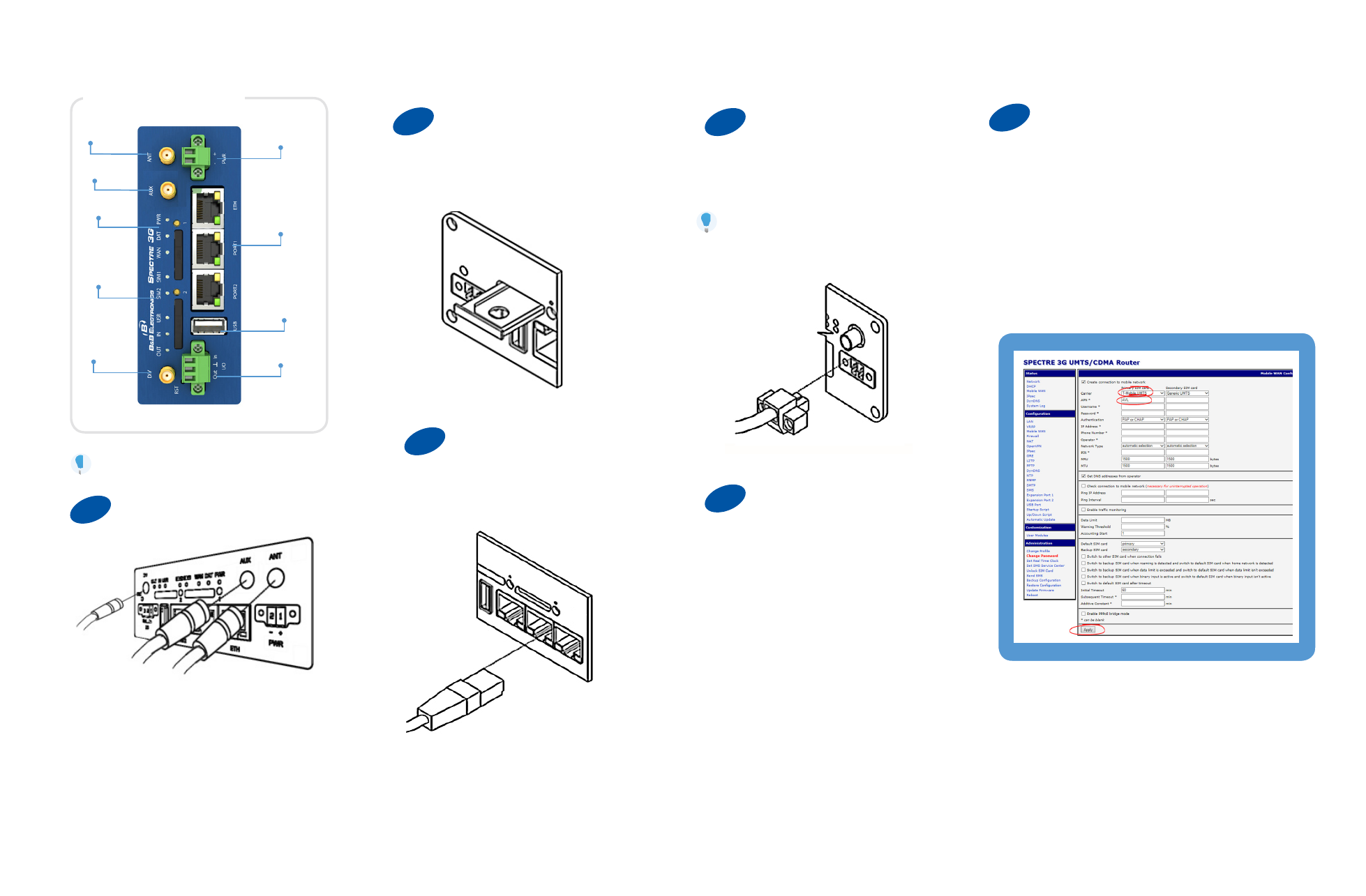

1 Attach Antenna
5 Configure the Router
You may open the SIM card holder by pressing the
small button to the right of the holder.
4
Attach Power
3
You may configure the router via a web browser or Telnet.
The default router IP address is: 192.168.1.1
Default Username = root
Default Password = root
Detailed configuration data is included on your installation
CD and also on our web site.
Cellular antenna
connector
LEDs
3 V or 1.8 V
SIM card
holders
Cellular antenna
connector”DIV”
Power
Ethernet
and/or
Aux ports
USB Port
I/O Port
The router will not work unless the antennas are attached,
power is supplied, and activated SIM cards are inserted.
Insert SIM card
Attach Ethernet cable
You will use an Ethernet connection to configure the
router and to communicate with it.
Apply +10 to +30 V DC. The router has built-in
protection against reverse polarity.
Powering the router with no antenna
attached can damage the router
Wi-Fi antenna
connector
Cellular antenna
to “DIV”
.
Cellular antenna
to “ANT”
.
Wi-Fi antenna
to “AUX”
.
6
Provision the Router on the RACO
network
Under CONFIGURATION click MOBILE WAN.
Change carrier dropdown to “T-Mobile”.
Under APN enter “AVL”.
Click Apply.
