B&B Electronics VESR4X4 - Quick Start Guide User Manual

Quick start guide, Model: vesr4x4

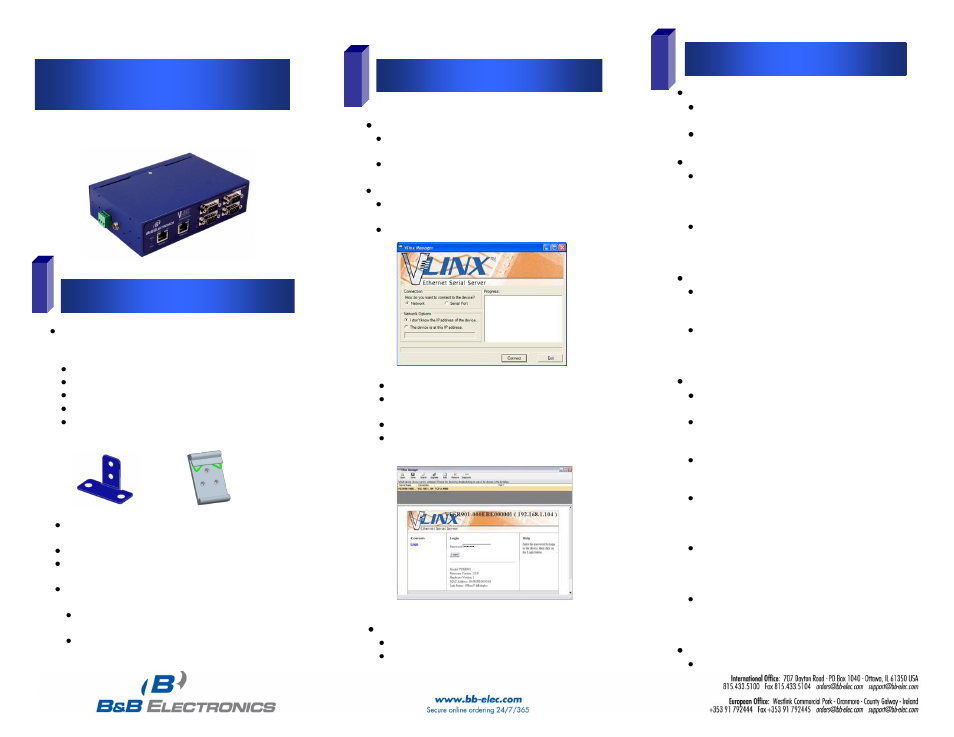

background image

PN9036R1_VESR4x4 _0712qsg

P#xxxx_Vlinx_VESR4x4_Serial Server_2511qsg

Install/Connect the Hardware

Quick Start Guide

Install/Run Vlinx Manager

Configure the Serial Server

d

General Setup

Enter a name for the serial server. This name will
show up in the serial server list in Vlinx Manager.

Change the login password if desired.

Enter The Network Settings

The serial server is configured at the factory to get an
IP address automatically (DHCP). If a DHCP server is
not available on your network, it will default to
169.254.102.39.

If a static IP is desired, uncheck the box “I want
DHCP to setup the network”. Enter the static IP,
Subnet Mask, and default Gateway information.

Setup the Serial Port Communications

For each serial port on the device: Select the
communications mode – RS-232, RS-422, RS-485
(2-wire), RS-485 (4-wire)

Select the communicationsparameters (Baud Rate,
Data Bits, Stop Bits, Parity and Flow Control) for your
serial device

Setup the Serial Port Network Protocol

Select the type of network protocol you want to use
for each port: TCP, UDP, VCOM or Paired Mode.

TCP: select whether the serial server will operate as
a Client or Server, then configure the required IP
address, port numbers and other related parameters.

UDP: configure the IP addresses, ports and other
related parameters for the devices you want to
receive data from and send data to.

VCOM:configure the serial port to act as a virtual
COM port on the PC. You must also add the VCOM
driver to the PC using the “Add” button in Vlinx
Manager.

Paired Mode:configure the serial server to be paired
with another serial server, configure it as either the
client or the server in the pair and set up the IP
address, port numbers,etc.

Setup Advanced parameters as necessary for your
applicationClick on the “Advanced” button to setup
serial and network timers and packet delimiters.

Save your configuration to the serial server

The device will re-boot after saving the settings.


2



Model: VESR4x4

USB to Serial Device

One Meter USB Cable

CD ROM with Drivers

Mount the serial server using panel or DIN rail mount
adapters.

Connect a 10 to 58 VDC power supply (6.0 W required).

Connect to the network (using a standard Ethernet cable or
fiber-optic cable):

Connect the serial device (using the appropriate cable for
your model):

RS-232 with DB9: straight-through for DCE device, null
modem for DTE device

RS-232/422/485 with terminal blocks

Install Vlinx Manager

Insert the Vlinx manager software CD into the computer.
The install program should automatically run.

Follow the prompts to install the software

RunVlinx Manager

:

ClickStart>Programs>B&BElectronics>Vlinx>Vlinx
Manager>VESRSerial Server

The Discovery page opens

Select Network.

If you know the IP address, select:“The device is at this
address”, and type in the address.

If not,select “I don’t know the IP address of the device”.

Click on the Connect button. Vlinx Manager will search
for any serial servers on the network.

Login to the Serial Server

Select the serial server from the list.

Login to the device. (factory password is blank. Just
click Login). The General setup page will appear.

Unpack your serial server from the shipping container.
Verify that all included items are present.

VlinxVESR4x4 module

CD with Vlinx Manager software and user’s manual

(2) Panel mount adapters and (4) mounting screws

DIN rail mount adapter and (3) mounting screws

This quickstart guide

1
