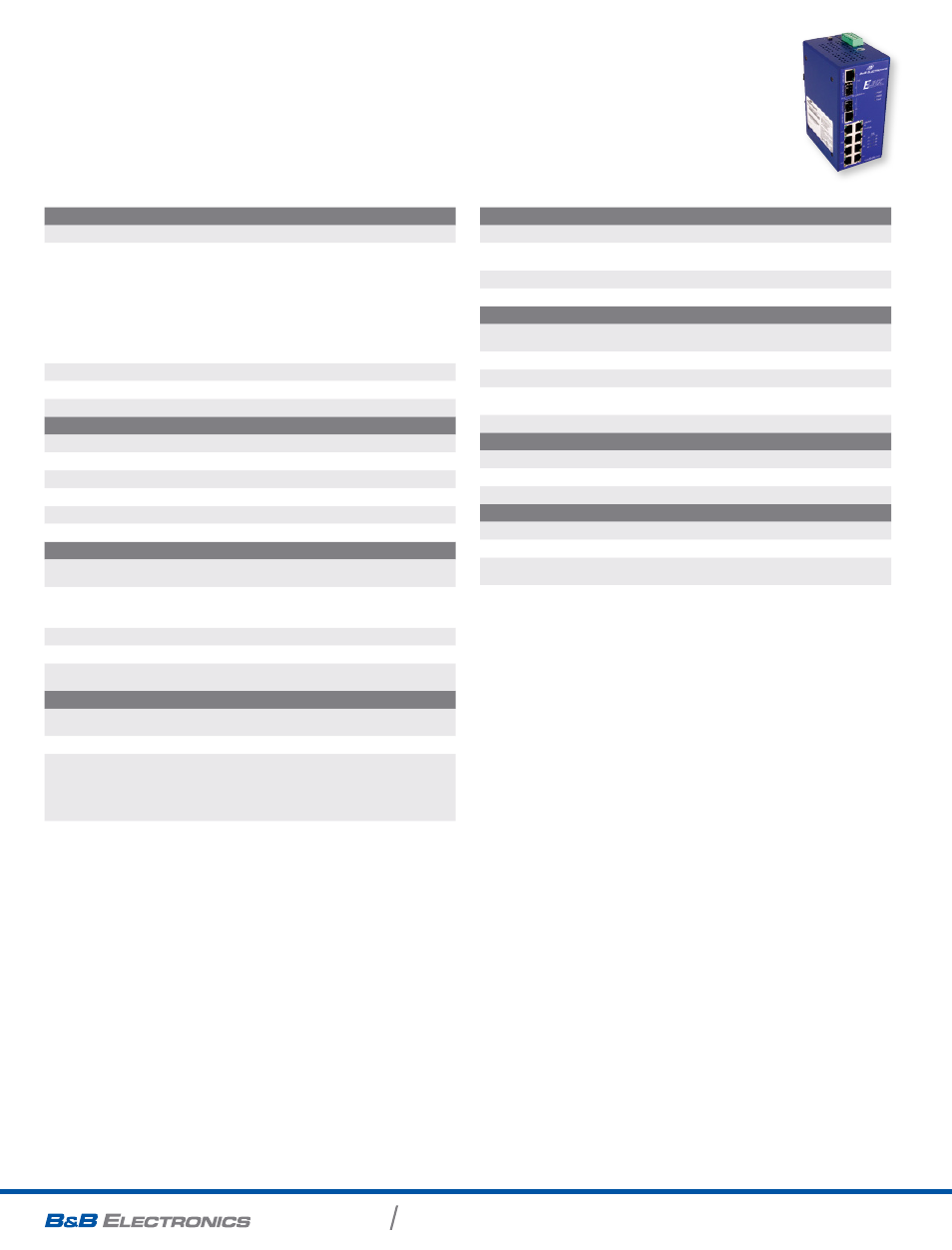

10 Port Industrial ethernet switch
with 2 rJ-45/sFP combo Ports
for gigabit ethernet
EIRP410-2SFP-T
sPecIFIcAtIons
regulatory
Safety UL, cUL CE/EN60950-1
EMC
FCC Class A
CE EN61000-6-2
CE EN61000-6-4
CE EN61000-4-2 (ESD)
CE EN61000-4-3 (RS)
CE EN61000-4-4 (EFT)
CE EN61000-4-5 (Surge)
CE EN61000-4-6 (CS)
CE EN61000-4-8 (Magnetic Field)
Free Fall IEC60068-2-32
Shock IEC60068-2-27
Vibration IEC60068-2-6
ieee standards
IEEE 802.3 802.3. 10Base-T Ethernet
IEEE 802.3u 100Base-TX and 100Base-FX Fast Ethernet
IEEE 802.3ab 1000Base-T
IEEE 802.3z Gigabit Fiber
IEEE 802.3x Flow Control and Back Pressure
IEEE802.3af Power over Ethernet
network sPeciFications
Architecture
Back-plane (Switching Fabric): 5.6Gbps
Throughput (Full-dux): 8.3Mpps@64bytes
Transfer Rate
14,880 pps Ethernet Port
148,800 pps Fast Ethernet Port
1,488,000 pps Gigibit Fiber Ethernet
Buffer 1 MB
MAC Table 8K
Misc
Broadcast Storm Filtering
CSMA/CD
interFace
RJ-45 Ports
8 x 10/100BaseT, 2 x10/100/1000,
Auto MDI/MDI-X
CU/SFP 2 x Mini-GBIC SFP Combo Ports
LED
Per unit: Power (Green), Power 1 (Green), Power 2
(Green), Fault (Red),
8 port 10/100: Link/Activity (Green), Full duplex/
Collision (Amber), Power Feeding (Green)
Gigabit port: Link/Activity
Poe
Ports 1 through 8
Standard
802.3af End Point Alternative A
Power Source Equipment (PSE)
Capacity 15.4W per port
Pin Assignment 1 & 2 – VCC(+), 3 & 6 – VCC(-)
Power
Input Voltage
Dual 48 VDC Inputs
Reverse Polarity Protection
Power Connection Removable Terminal Block
Wire Size 12 to 24 AWG
Power Use
9.6 Watts (Without PoE Load)
140 Watts (Full PoE Load)
Fault Output 1 Relay Output – Normally Closed
enVironMental
Operating Temperature - 40 to 75°C (-40 to 167°F)
Storage Temperature - 40 to 85°C (-40 to 185°F)
Operating Humidity 0 to 95%
Mechanical
Enclosure IP30 Metal Enclosure
Mounting 35mm DIN Rail or Panel Mount Attachments
Dimensions
(72mm (W) x 105mm (D) x 152mm (H)
2.84 x 4.13 x 5.98 inch
