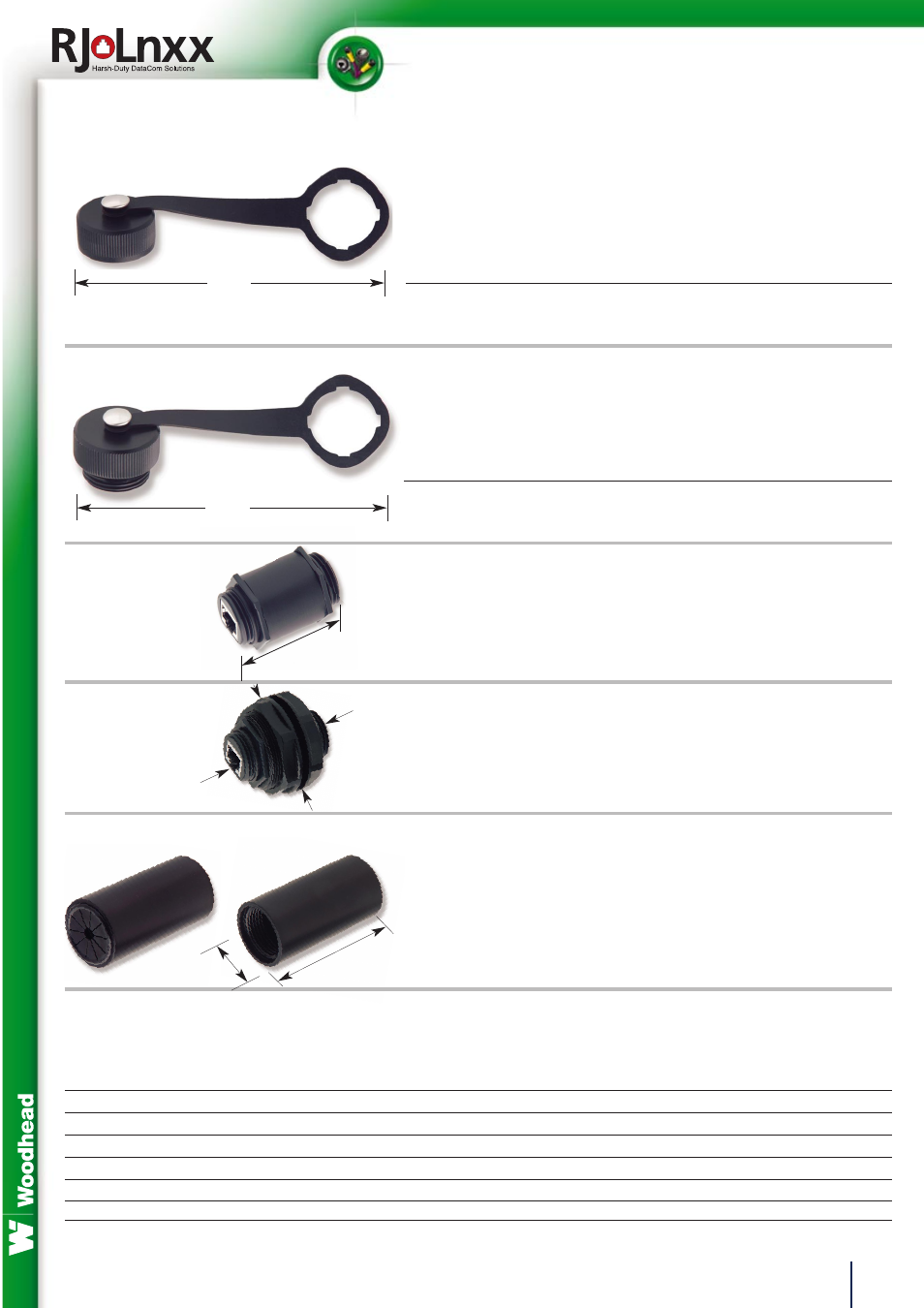

To protect the front face of receptacles or female moulded connectors when
not in use, for example in non-continuous data transfer applications or when
temporarily disconnected from RJ-Lnxx or standard RJ-45 male connectors such
as in portable/mobile applications. The 4 position lanyard keys allow the closure
cap to always drop vertically regardless of receptacle jack orientation.
Part Number Description
65-0300 Closure Cap only (material Nylon 6, glass filled)
67-0300 Captive Closure Cap with integral 'rubberised lanyard and
stainless steel retaining clip for attaching to receptacles.
Waterproof and U/V stable for external applications.
To protect the front face of field attachable or male moulded connectors when
not in use, for example in non-continuous data transfer applications or when
temporarily disconnected from RJ-Lnxx receptacles or female moulded
connectors such as in portable/mobile applications.
Part Number Description
65-0301 Closure Cap only (material Delrin)
67-0301 Captive Closure Cap with integral 'rubberised lanyard and
stainless steel retaining clip for attaching to connectors.
Waterproof and U/V stable for external applications.
Allows either moulded or field attachable male connectors to be mated together,
extending overall system length.
Part Number Description
RJBG16821 In-line Interconnect
Allows either moulded or field attachable male connectors to be mated together,
extending overall system length. Two M40 nylon lock nuts and threaded barrel
allow the interconnect to be positively fixed to a panel or enclosure wall.
Part Number Description
RJBG17946 Threaded Interconnect
Provides environmental protection from dirt and debris and additional structural
support to the back of receptacles. Particularly useful where the inside of
enclosures are regularly accessed for maintenance. The slotted design enables a
cable and RJ-45 to exit the cover and the threaded front end replaces the
receptacle lock nut for panel mounting.
Part Number Description
RJBG17756 Backend Receptacle Cover
The range of RJ-Lnxx cables are also available in 50m or 305m reel sizes.
Specifically designed for industrial or harsh commercial applications they perform
a key role in maintaining datacoms integrity under arduous operating conditions. Cables
123.0mm
67-0300
Cable ref Description Application
RJCAB-V-500/RJCAB-V-3050 FTP/Solid Conductor/ PUR Jacket Oil, Dirt, EMC, 100m
RJCAB-C-500/RJCAB-C-3050 FTP/Stranded Conductor/ PUR Jacket Oil, Dirt, EMC, 30m, light flexing
RJCAB-D-500/RJCAB-D-3050 FTP/Stranded Conductor/ PUR Jacket Oil, Dirt, EMC, 30m, repeated flexing
RJCAB-P-500/RJCAB-P-3050 FTP/Stranded Conductor/ PUR Jacket Oil, Dirt, EMC, 30m, crush resistant (Kevlar weave)
RJCAB-X-500/RJCAB-X-3050 UTP/Solid Conductor/ PE Jacket External, water resistant, U/V stable, 100m
RJCAB-Y-500/RJCAB-Y-3050 FTP/Solid Conductor/ PE Jacket External, water resistant, U/V stable, EMC, 100m
Wall Boxes: A range of wall boxes to accommodate RJ-Lnxx receptacles allows standard datacoms cabling to be connected to IP67 RJ-Lnxx components.
Please contact Woodhead Connectivity for further details or to discuss specific requirements.
RJ-Lnxx ® Accessories
IP67 Receptacle
Closure Caps
IP67 Male
Connector Closure
IP67 Threaded
Interconnect
Backend Receptacle Cover
125.0mm
50.0mm
IP67 In-Line
Interconnect
52.0mm
67.0mm
34.0mm
67-0301
50.0mm
®
