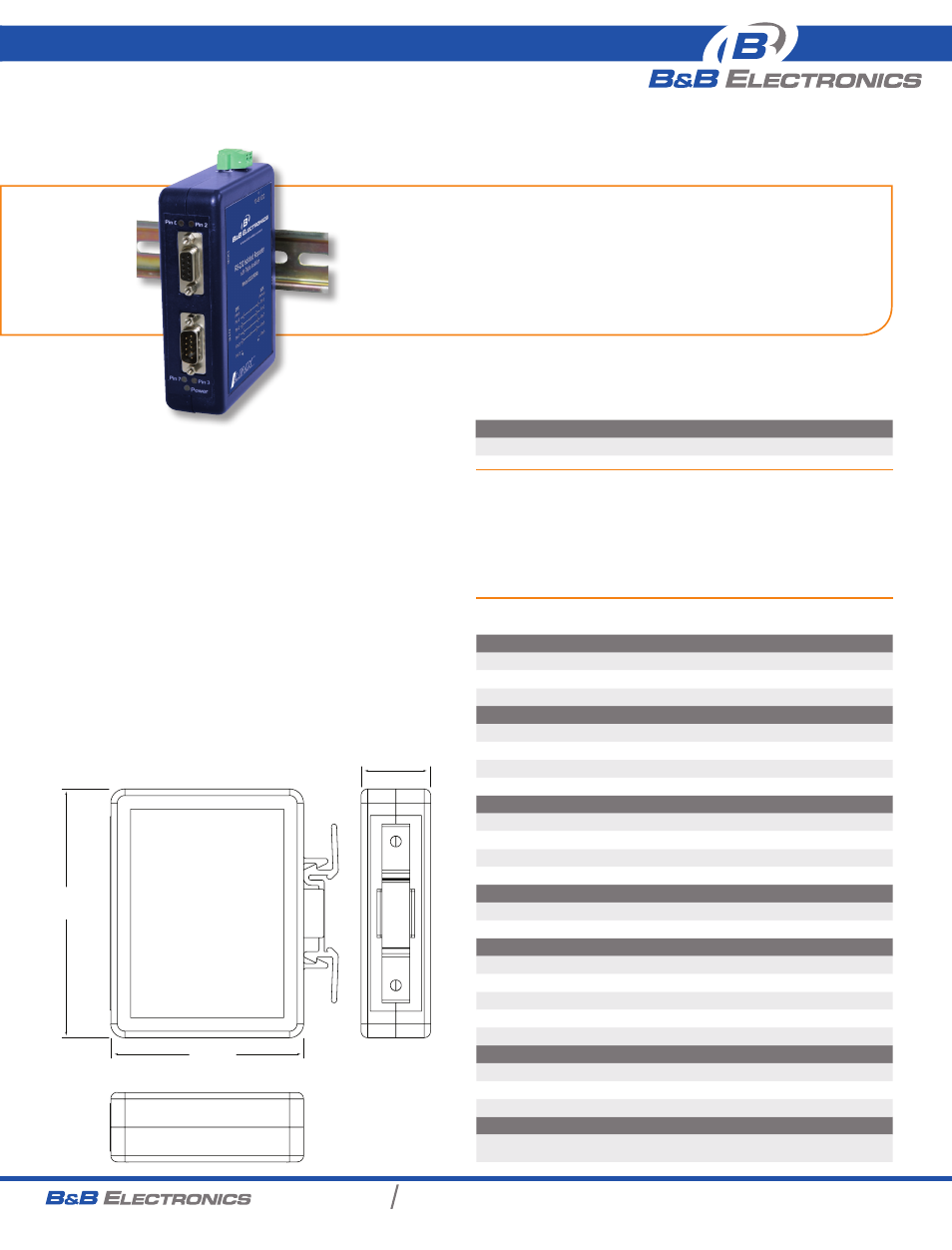

industrial rS-232 isolated repeater

232OPDRI

The 232OPDRI is our premium Industrial RS-232 Isolated Repeater.
Designed for rugged industrial environments, it is UL listed and certified
for use in Class 1 Division 2 locations. Powerful Optical Isolation on both
data ports protects your equipment and data from damaging ground loops
and surges. Additional isolation on the power supply circuits adds a third
degree of protection.

Packaged in a rugged plastic case, the 232OPDRI operates in wide
temperature extremes. With a 35mm DIN rail mounting bracket, it is easy
to integrate into a control panel or other industrial equipment.

Installation and configuration is easy. Data is connected with a DB9 female
connector (DCE) and a DB9 male connector (DTE). Power is connected
through terminal block that accepts 10 to 48 VDC from any external
source.

specifications

Serial Technology

Serial Connector

DB9 F (DCE), DB9 M (DTE)

Data Rate

Up to 115.2 Kbps

Isolation

2 KV RMS, 1 minute

Power

Source

External

Power Connector

2 Position Removable Terminal Block

Input Voltage

10 to 48 VDC (56 VDC Maximum)

Power Consumption

0.6 W typical

Terminal BlockS

Wire Size Accepted

28 to 12 AWG, Copper wire only.

Pitch

5.08 mm

Insulation Resistance

≥500 MΩ @ 500 VDC

Maximum Torque

5 Kg / cm

indicaTorS

Power

Red LED

TD / RD

Red LED TD, RD, CTS, RTS

mechanical

Dimensions

12.3 x 11.3 x 3.2 cm (4.9 x 4.5 x 1.3 in)

Enclosure

IP 30 Plastic, 35 mm DIN Mount

Weight

0.43 lbs (195 g)

MTBF

177250 Hours

MTBF Calc. Method

Parts Count Reliability Prediction

environmenTal

Operating Temperature

-40 to 80°C (-40 to 176°F)

Storage Temperature

-40 to 85°C (-40 to 185°F)

Operating Humidity

0 to 95% Non-condensing

regulaTory

Approvals

FCC, CE, IEC 61850-3, IEEE 1613

UL C1 D2, File: E245458

• Supports Data Rates up to 115.2 Kbps
• Wide -40 to 80°C Temperature Range
• 10 to 48 VDC Input Power Range
• 2000 V 3-Way Optical Isolation
• UL Class 1 Division 2 Listed

proDuCt FeatureS

aCCeSSorieS

MDR-20-24 - DIN rail mount power supply 24VDC, 1.0 A output power
MDR-40-24 - DIN rail mount power supply 24VDC, 1.7 A output power
DRPM25 - 35mm DIN Rail to Panel Mount Bracket, 25mm wide
EK-CLIP-MPC - DIN rail clip for enclosure

orDering inFormation

Model nuMber

desCriPtion

232OPDRI

Industrial RS-232 Isolated Repeater

12.3 cm

4.9 in

11.3 cm

4.5 in

3.2 cm

1.3 in

232OPDRI_3713ds
