THE INDUSTRIAL NETWORK COMPANY

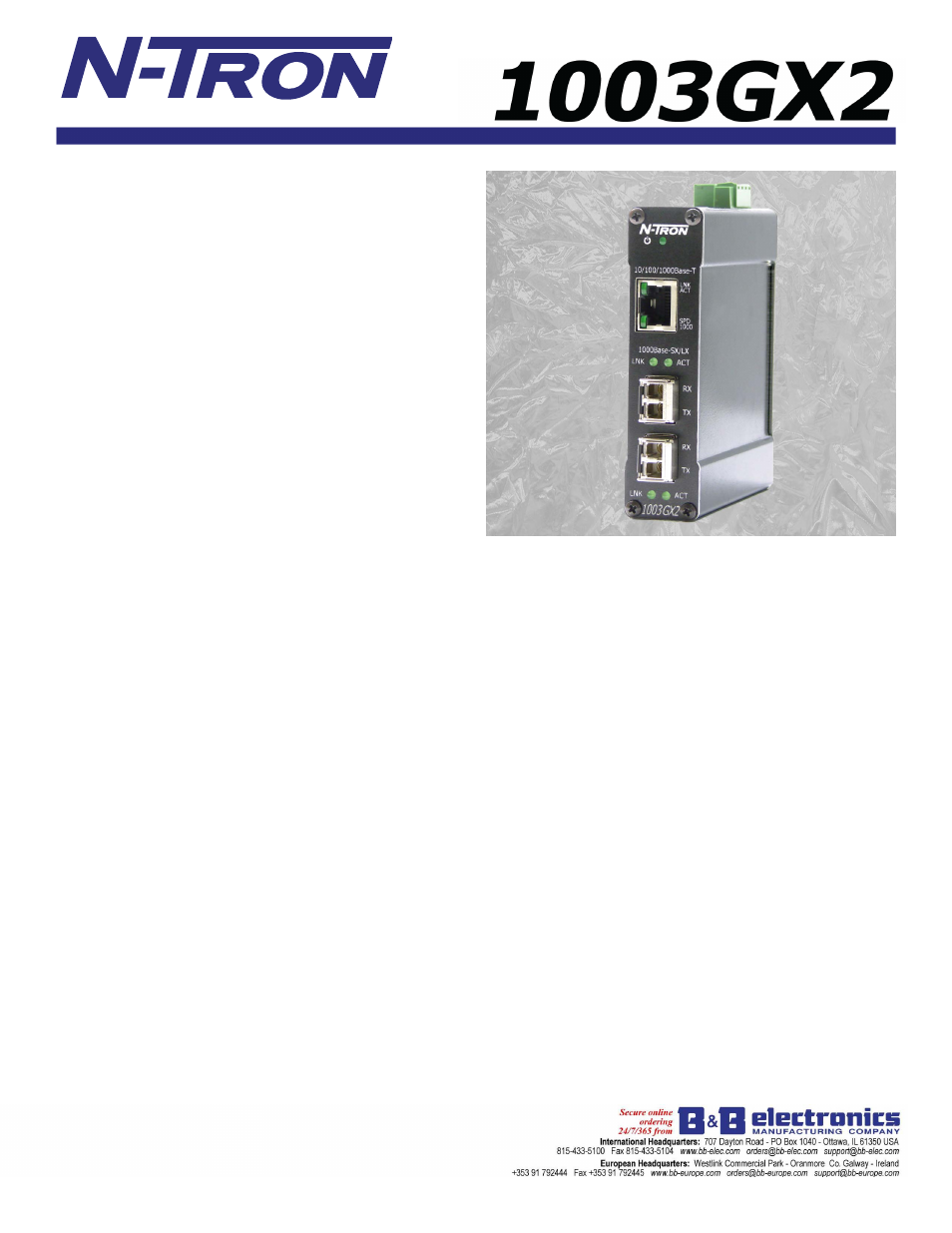

The N-TRON
®
1003GX2 is an unmanaged three port Gigabit
Industrial Ethernet Switch. It is housed in a hardened, metal,
DIN-Rail enclosure, and is designed for use in industrial data
acquisition, control, and Ethernet I/O applications.
PRODUCT FEATURES
• Compact Size, Small Footprint
• Unmanaged
Operation
• Full IEEE 802.3, 802.3u, 802.3z, and 802.3ab
Compliance
• One 10/100/1000BaseT RJ-45 Port
• Two 1000BaseSX/LX SFP (Mini-GBIC) Ports
• Mix-and-Match Multimode and Singlemode
LC Style SFP Gigabit Fiber Transceivers
• Extended Environmental Specifi cations
• -40ºC to 85ºC Operating Temperature
• >2M Hours MTBF
• RJ-45 Port Supports Full/Half Duplex Operation
• Up to 6.0 Gb/s Maximum Throughput
• Supports up to 1,024 MAC Addresses
• Store-and-forward
Technology
• RJ-45 Port Auto Senses Speed and Flow Control
• Full Wire Speed Communications
• MDIX Auto Cable Sensing (RJ-45)
• Hardened Metal DIN-Rail Enclosure
• LED Link/Activity Status Indication
• Redundant Power Inputs (10-30 VDC)
PRODUCT OVERVIEW
The 1003GX2 Gigabit Industrial Ethernet Switch is designed
to solve the most demanding industrial communications
requirements while providing high throughput and minimum
downtime.
The 1003GX2 provides one RJ-45 auto sensing
10/100/1000BaseT port and two 1000BaseSX/LX SFP ports.
The RJ-45 port is full/half duplex capable, using "state of the
art" Ethernet switching technology.
The 1003GX2 auto-negotiates the speed and fl ow control
capabilities of the copper port connection, and confi gures
itself automatically. Each 1000BaseSX/LX fi ber optic port
utilizes industry standard SFP transceivers with LC style
connectors and is confi gured for full duplex operation.
Both multimode and singlemode fi ber models are available.
Since the TX port of the 1003GX2 is auto sensing,
there will be no need to make extensive wiring changes
if upgrades are made to host computers, plant systems, or
Ethernet I/O modules. The switching fabric simply scales
up or down automatically to match your specifi c network
environment.
The 1003GX2 supports up to 1,024 MAC addresses, thus
enabling these products to support extremely sophisticated
and complex network architectures.
The N-TRON 1003GX2 is an ideal candidate for upgrading
existing hubs and repeaters to increase bandwidth and
determinism by virtually eliminating network collisions. The
product also keeps the network affordable, while maintaining
the plug & play simplicity of the unmanaged hub.
The 1003GX2 is engineered to withstand the extremes of
industrial environments and carries an impressive operating
temperature rating of -40ºC to 85ºC. For cost savings and
convenience the media converter can be DIN-Rail mounted
alongside Ethernet I/O or other Industrial Equipment.
The unique compact size provides a small footprint,
conserving space in the most critical dimension. In
addition, as with other DIN-Rail devices, the 1003GX2
can be panel mounted by using our 1000-PM kit.
To increase reliability, the 1003GX2 contains redundant
power inputs. LEDs are provided to display the link status
and activity of each port, as well as power on/off status.
