seven Port industrial
grade usB Hubs
UHR207 & UHR307
sPeCiFiCations
uSB interFaCe
Standards USB 1.1 & 2.0
Upstream Port (1) Type B Female – High Retention
Downstream Port (7) Type A Female – High Retention
Speed
12 Mbps – Model UHR304
480 Mbps – Model UHR204
Multi-transaction Translator, 1 per port
Isolation UHR307 - 4 kV – Upstream to Downstream
Surge Protection +/- 0.5 kV DC Ports, +/- 1 kV Signal Ports
ESD 15 kV Air, 8 kV Contact
High Retention
USB Ports require 15 N (3.2 lbs-force) withdrawal force
using standard USB Cable
Power
Source External
Power Connector Terminal Block or threaded barrel jack
Input Voltage 10 to 30 VDC
Power 30 Watts
Power TB 3 Position, 5.08 mm spacing, 28-12 AWG, Solid Wire
Barrel Jack
Locking / Threaded, 5.5 mm,
Center Positive
Downstream Power 500 mA per port
indiCatorS
Power Green LED
Port Ready Green LED
MeChaniCal
Dimensions 20.3x12.1x3.49 cm (8 x 4.75 x 1.38 in)
Enclosure IP 30, Metal
Weight 1.4 lbs – 0.64 kilograms
MTBF
UHR307 - 143330 Hours
UHR207 - 151173 Hours
MTBF Calc. Method MIL 217F Parts Count Reliability
enVironMental
Operating Temperature
-40 to 80°C
0 to 40°C when using wall plug power supply
Storage Temperature -40 to 85°C
Operating Humidity 0 to 95% Non-condensing
aPProValS/CertiFiCationS
Emissions FCC Class B, CISPR Class B (EN55022)
CE
EN61000-6-2:2005 (Heavy Industrial)
EN61000-4-2:2008 (ESD) +/- 8kV contact, +/-15 kV air
EN61000-4-3:2006 (RI) 10 V/m, 80-1000 Mhz; 3 V/m 1.3 to 2.7 GHz
EN61000-4-4:2004 (EFT Burst) +/- 2kV DC ports; +/- 1 kV signal ports
EN61000-4-5:2005 (Surge) +/- 2 kV com; +/- 1 kV differential
EN61000-4-6:2008 (CI) 10 Vrms, 0.15 to 80 MHz
EN61000-4-8:2001 (Magnetic) 10 A/m, 50 Hz & 60 Hz
Other
IEC60068-2-27 (Shock) 50G Peak, 11 ms, 3 axes
IEC60068-2-6 (Vibration) 140-500 Hz, 4G, 3 axes
IEC60068-2-32 (Drop) 10 total drops from sides, corner, edges

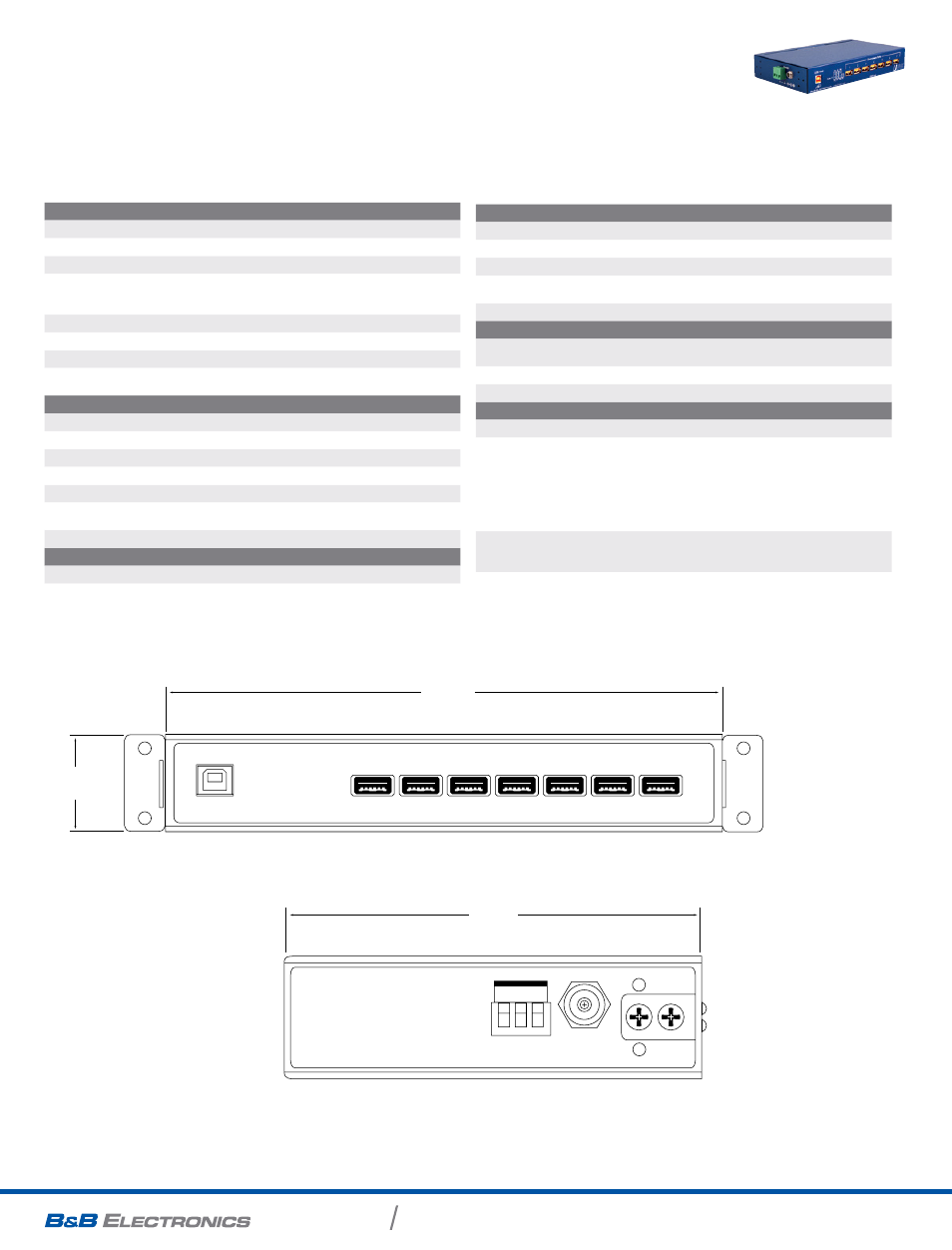

meCHaniCal diagram
20.3 cm
8 in
3.49 cm
1.38 in
12.1 cm
4.75 in
