10/100 mbps switching media converter

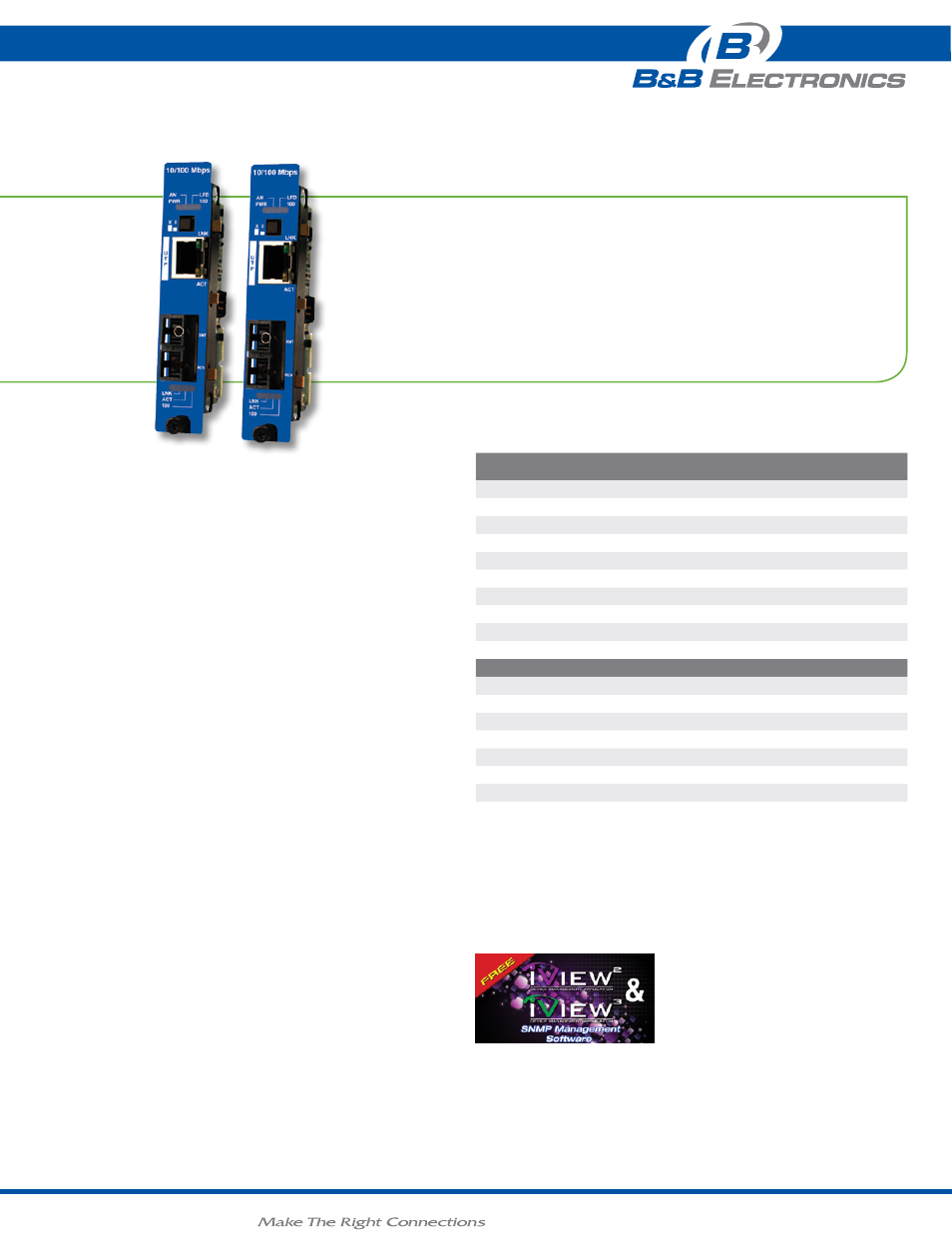

iMcV-LIM 10/100 Mbps
The iMcV-LIM 10/100 includes troubleshooting features such as
LinkLoss, Transparency and Link Fault Detection that make isolating
fiber breaks easier should they occur. The iMcV-LIM 10/100 also
features a crossover/pass-through switch on the twisted pair
connection for MDI/MDIX connectivity and diagnostic LEDs. Most
iMcV-LIM 10/100 modules are available with single-strand fiber which
can effectively double the capacity of fiber by allowing two individual
channels to share one strand of fiber; Full-Duplex data travels on
different wavelengths — 1310 nm and 1550 nm, for example.
Auto-Sensing 10/100 Mbps iMcV-LIM 10/100 converters offer
significant advantages over regular 10 and 100 Mbps converters. An
ideal choice for both enterprise and service provider networks, 10/100
converters save time and money when deployed at the host and
remote site. Enterprise networks planning a migration path from 10
Mbps to 100 Mbps often deploy Auto Sensing converters, then upgrade
when ready and units will automatically adapt to increased speed.
Service providers with 10 or 100 Mbps links to customer premises can
sell customers more bandwidth without upgrading the converters at
the POP and the customer network edge.
product FEaturEs
• Has a small, rugged design offering many advanced features
• Available for multi-mode or single-mode fiber
• LinkLoss, Transparency and Link Fault Detection features, along
with LEDs, assist in diagnosing problems on fiber optic networks
• Convert 10 Mbps twisted pair to 10 Mbps fiber OR convert 100
Mbps twisted pair to 100 Mbps fiber
ordErIng InFormatIon
Model
nuMBer
FiBer
FiBer
Ports range
ethernet
Ports
ethernet
ConneCtor
iMcV-LIM 10/100 TX/FX
850-14260
MM850-ST 1 2 km 1 RJ45
850-14261 MM850-SC 1 2 km 1 RJ45
850-14262 MM1300-ST 1 5 km 1 RJ45
850-14263 MM1300-SC 1 5 km 1 RJ45
850-14267 SM1310/PLUS-ST 1 40 km 1 RJ45
850-14268 SM1310/PLUS-SC 1 40 km 1 RJ45
850-14269 SM1310/LONG-ST 1 80 km 1 RJ45
850-14270 SM1310/LONG-SC 1 80 km 1 RJ45
850-14274 SM1550/LONG-SC 1 80 km 1 RJ45
single strand FiBer *
850-14240 SSFX-MM1310-SC 1 2 km 1 RJ45
850-14243 SSFX-MM1550-SC 1 2 km 1 RJ45
850-14244 SSFX-SM1310-SC 1 20 km 1 RJ45
850-14245 SSFX-SM1550-SC 1 20 km 1 RJ45
850-14246 SSFX-SM1310/PLUS-SC 1 40 km 1 RJ45
850-14247 SSFX-SM1550/PLUS-SC 1 40 km 1 RJ45
850-14248 SSFX-SM1310/LONG-SC 1 60 km 1 RJ45
850-14249 SSFX-SM1550/LONG-SC 1 60 km 1 RJ45
iMcV-LIM 10/100 Mbps also available in CWDM Fiber.
Call for details.
* These products have single-strand fiber technology. Deploy in pairs or connect another compatible
B&B IMC LLC single-strand fiber product.
iView: Windows 2000/XP/Vista/Win7
