CONFIGURED USING Vlinx ConnectPro MANAGER 2.0

10 BASE-T/100 BASE-TX ETHERNET PORT

EASY INSTALLATION

NOTICE

This product does not have a UL rating. Installing Non-UL Rated parts

or components into any UL Rated device voids the original UL rating on

that device.

GENERAL DESCRIPTION

The Vlinx ConnectPro contains a proprietary expansion port which provides

a high speed, parallel architecture that extends the functionality and flexibility

of the platform. This approach allows these products to evolve concurrently

with the latest advances in communications and standards, without sacrificing

performance. This high bandwidth channel has significantly greater throughput

when compared to the traditional (external) serial gateway approach.

The auxiliary Ethernet port provides a means to isolate machine-network

traffic from the plant-wide network, thereby negating the need for an industrial

router. Further, by isolating the machine and plant-wide networks, the system

only requires that a single IP address be provided by the company’s IT group.

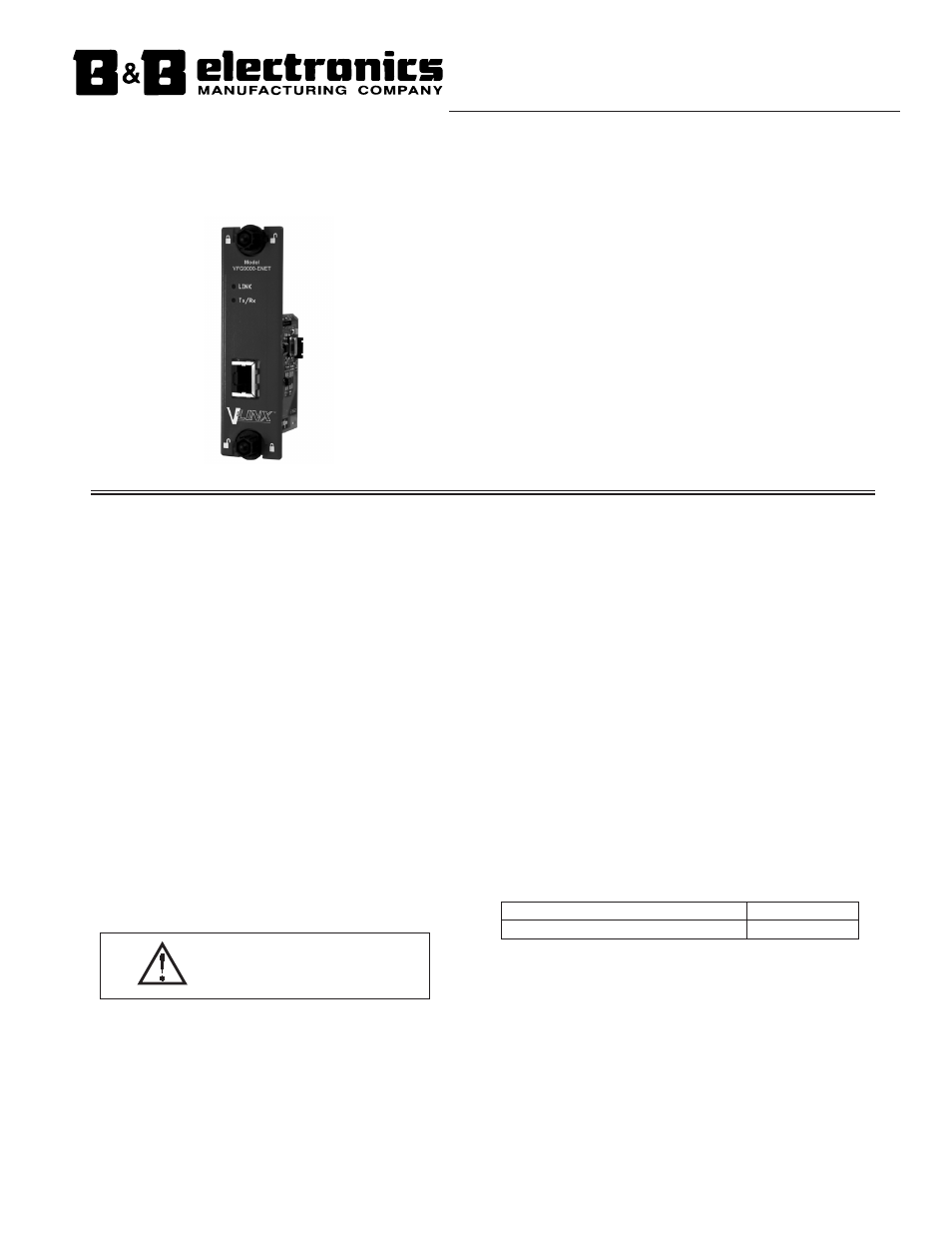

The VFG9000-ENET option card is easily installed by removing the blank

expansion port cover of your Vlinx ConnectPro, and plugging the VFG9000-

ENET card into the expansion port. Installing this card adds an auxiliary 10/100

Ethernet port to any Vlinx ConnectPro. Configuration is simple using B&B

Electronics’ free Vlinx ConnectPro Manager 2.0 software.

SAFETY SUMMARY

All safety related regulations, local codes and instructions that appear in the

literature or on equipment must be observed to ensure personal safety and to

prevent damage to either the instrument or equipment connected to it. If

equipment is used in a manner not specified by the manufacturer, the protection

provided by the equipment may be impaired.

Do not use the controller to directly command motors, valves, or other

actuators not equipped with safeguards. To do so can be potentially harmful to

persons or equipment in the event of a fault to the controller.

CONTENTS OF PACKAGE

- VFG9000-ENET option card

- This hardware bulletin

SPECIFICATIONS

1. POWER REQUIREMENTS: 24 V @ 30 mA max. Power is supplied to the

option card by the Vlinx ConnectPro.

2. COMMUNICATIONS:

Ethernet Port: 10 BASE-T / 100 BASE-TX

RJ45 jack is wired as a NIC (Network Interface Card).

3. CERTIFICATIONS AND COMPLIANCES:

Consult factory for details.

ELECTROMAGNETIC COMPATIBILITY

Emissions and Immunity to EN 61326: Electrical Equipment for Measurement,

Control and Laboratory use.

Reference Vlinx ConnectPro unit for EMC specifications

4. ENVIRONMENTAL CONDITIONS:

Refer to the specifications of the Vlinx ConnectPro you are installing this

card in.

5. CONSTRUCTION: For indoor use only. Installation Category II, Pollution

Degree 2.

6. INSTALLATION REQUIREMENTS: See “Installing the VFG9000-

ENET Option card” for more details.

7. WEIGHT: 2.0 oz (56.7 g)

ORDERING INFORMATION

DESCRIPTION

PART NUMBER

Ethernet option card for Vlinx ConnectPro

VFG9000-ENET00

10/100 ETHERNET OPTION CARD FOR VLINX ConnectPro

CAUTION: Risk of Danger.

Read complete instructions prior to

installation and operation of the unit.

1

Phone: (815) 433-5100
Fax: (815) 4334-5104
www.bb-elec.com

VFG9000-ENET-0911qsg

LP0866
Effective 03/11
