B&B Electronics ADAM-6520_I_L - Datasheet - Manual

Features
www.advantech.com/products Online Download
 Supports full/half duplex flow control
 Supports MDI/MDI-X auto crossover
 Provides broadcast storm protection
 Embedded with a switch controller, supports auto-negotiation
 Supports +10 ~ 30 V
DC
voltage power input
 Provides surge protection 3,000 V
DC
for power line (ADAM-6520/6520I only)
 Supports 4,000 V
DC
Ethernet ESD protection (ADAM-6520/6520I only)
 Provides flexible mounting: DIN-rail, stack, wall
 Supports wide operating temperature range : -40 ~ 85° C (ADAM-6520I)

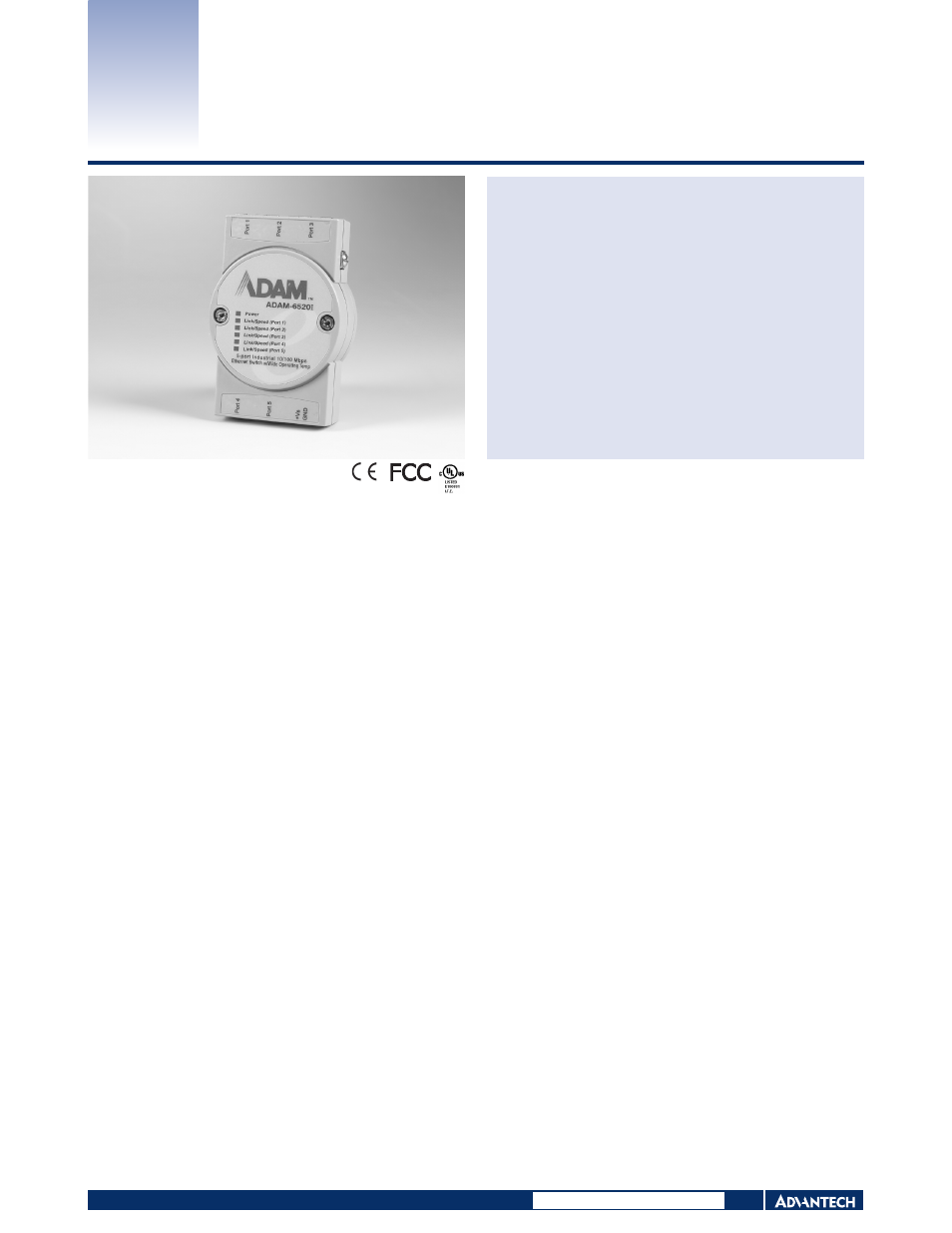

ADAM-6520
ADAM-6520L (New)
ADAM-6520I (New)
Specifications
Communications
 Standard IEEE 802.3, 802.3u, 802.3x
 LAN 10/100Base-TX
 Transmission Distance 100 m
 Transmission Speed up to 100Mbps
Interface
 Connectors 5 x RJ-45
 LED Indicators Power, Link/Speed
Power
 Power Connectors 2-pin removable screw terminal
 Power Consumption ADAM-6520L: Max. 3W
ADAM-6520/6520I: Max. 2.4W
 Power Input Unregulated 10 ~ 30 V
DC
Mechanism
 Dimensions (WxHxD) 70 x 102 x 27 mm
 Enclosure IP30, ABS+PC with solid mounting hardware
 Mounting DIN 35 rail, stack, wall
Protection
 ESD Protection 4,000 V
DC
(Ethernet) (ADAM-6520/6520I only)
 Surge (EFT) Protection 3,000 V
DC
(Power) (ADAM-6520/6520I only)
Environment
 Operating Temperature
ADAM-6520 : -10 ~ 70° C (14 ~ 158° F), Stack : -10 ~ 60° C (14 ~ 140° F)
ADAM-6520L : 0 ~ 60° C (32 ~ 140° F), Stack : 0 ~ 50° C (32 ~ 122° F)
ADAM-6520I : -40 ~ 85° C (-40 ~ 185° F), Stack : -40 ~ 75° C (-40 ~ 167° F)

Storage Temperature
ADAM-6520 : -20 ~ 80° C (-4 ~ 176° F)
ADAM-6520L : -10 ~ 70° C (14 ~ 158° F)
ADAM-6520I : -50 ~ 95° C (-58 ~ 203° F)

Operating Humidity 20 ~ 95 % (non-condensing)
 Storing Humidity 0 ~ 95 % (non-condensing)
 MTBF 1,580,000 hrs
Certifications
 Safety UL 60950-1, CAN/CSA-C22.2 No.60950
 EMC U.S.A.: FCC Part 15 CISPR 22
EU: EN55011
EN55022 Class A,
EN61000-3-2/3
EN55024
IEC61000-4-2/3/4/5/6/8/11
Ordering Information
 ADAM-6520 5-port Industrial 10/100 Mbps Ethernet Switch
 ADAM-6520L 5-port Industrial 10/100 Mbps Unmanaged Ethernet
Switch
 ADAM-6520I 5-port Industrial 10/100 Mbps Ethernet Switch w/Wide
Operating Temperature
5-port Industrial 10/100 Mbps Ethernet
Switch
5-port Industrial 10/100 Mbps Unmanaged
Ethernet Switch
5-port Industrial 10/100 Mbps Ethernet
Switch w/Wide Operating Temperature
Introduction
ADAM-6520 is a 5-port industrial-grade switch with Ethernet connectivity and from 10 to 100 Mbps transfer rates. (Auto-negotiation).
Just like any other product in the ADAM family, ADAM-6520 can be mounted in three different ways: DIN rail, panel and piggyback. Solid industrial-grade design assures reliable
operation in common application areas like: semi-conductor factories, inventory control environments, assembly lines, manufacturing and many more.
All modules support a wide voltage range of +10 ~ 30 V
DC
over the terminal block, and 3,000 V
DC
surge protection ensures that over-voltage is no concern. The wide operating
temperature of ADAM-6520 goes from -10 ~ 70°, while ADAM-6520I from -40 ~ 85°. This permits them to be functional in harsh environments.
The six inclusive LED indicators make troubleshooting of the modules easier. Each port has a pair of LEDs that indicate link status and port activities. This easily informs users of any
collisions, the link status, power failure and data receipts for immediate on-site diagnosis.
