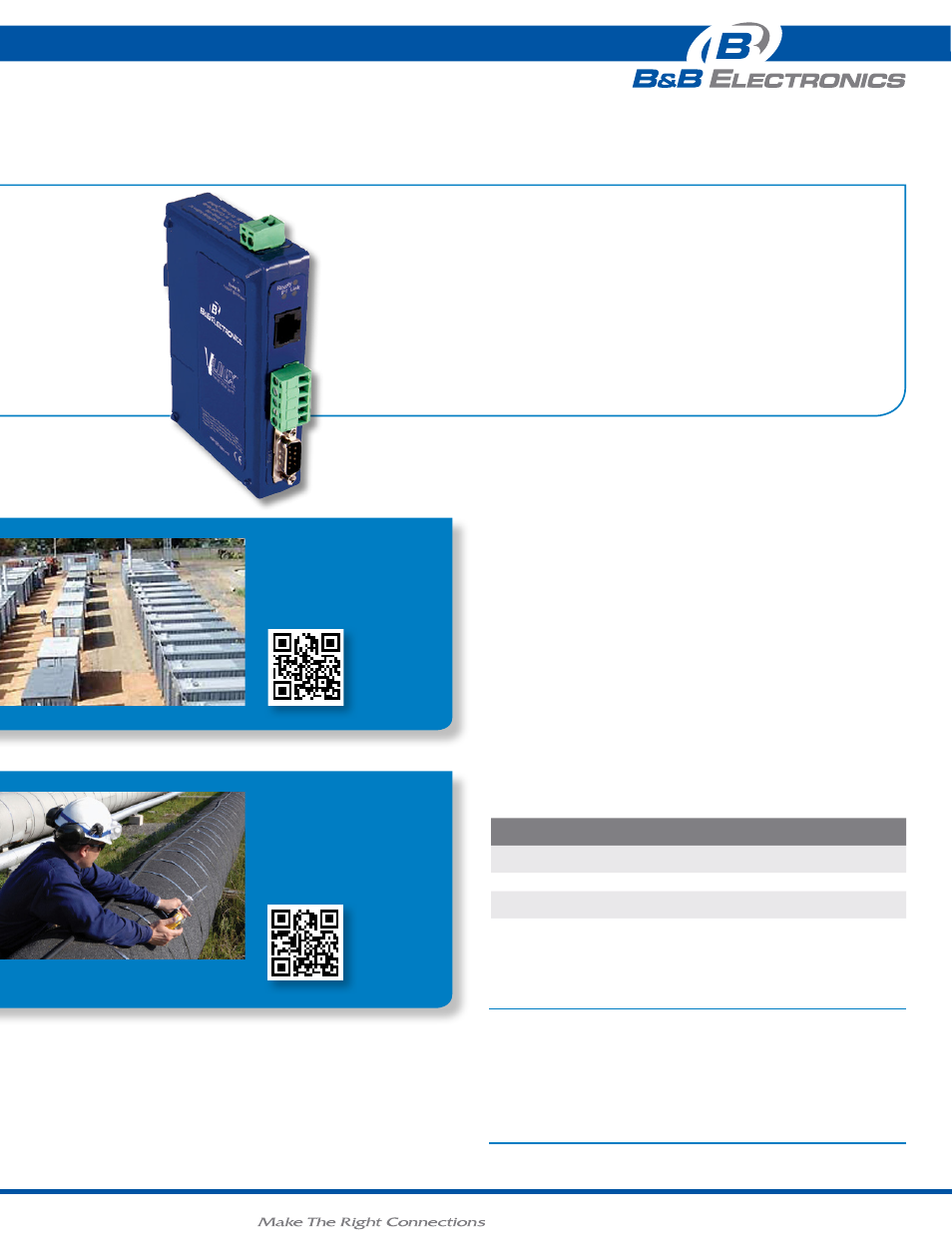

Industrial modbus Ethernet to

serial gateways

MESR900 Series - Copper Models

• Ethernet enable Modbus RS-232/422/485
• Modbus TCP, ASCII & RTU
• Modbus flexibility – serial & Ethernet,

Masters & slaves

• Modbus messaging priority control
• View messaging status in real time
• Easy configuration software
• UL Class 1 Division 2
• NEMA TS2 (MESR901)

Product FEaturEs

MESR900 Modbus Gateways bridge devices on Modbus serial networks
(RS-232, RS-422 or RS-485) with those on Modbus TCP networks,
allowing seamless integration. Serial ports can be accessed over a LAN
or WAN using Direct IP Mode connections. Supporting up to 16 masters
and 32 slaves, these gateways feature autodetecting10/100 copper and
fiber optic options. Easy-to-use software is designed for Windows 2000,
2003 Server, XP, Vista, 2008 Server and Windows 7. Serial data rates up
to 230 kbps ensure maximum network flexibility.

MESR9xx gateways are built for use in industrial environments, featuring
a slim IP30 DIN rail mountable case. They operate from a range of DC
power supply voltages and have pluggable terminal block connectors. An
external power supply, sold separately, is required. The MESR92x units
have an additional Ethernet port which functions much like an Ethernet
Switch, allowing pass-through connectivity for other Ethernet devices.
This port can also be used to “daisy chain” multiple gateways. MESR90x
units have one Ethernet port. B&B Electronics’ Vlinx™ is your number
one choice for Ethernet to Serial conversion.

accEssorIEs

MDR-20-24 - DIN rail mount power supply 24VDC, 1.0 A output power
MDR-40-24 - DIN rail mount power supply 24VDC, 1.7 A output power
DRPM25 - 35mm DIN Rail to Panel Mount Bracket, 25mm wide
ERS35 - DIN Rail 1 Meter 35mm Steel

ordErIng InFormatIon

Model nuMber serial

Ports

serial

ConneCtor

ethernet

Port

ethernet

ConneCtor

MESR901

1

DB9 or Terminal

Block

(1) Copper

RJ45

MESR902T

2

Terminal Block

(1) Copper

RJ45

MESR921

1

DB9 or Terminal

Block

(2) Copper

(2) RJ45

MESR922T

2

Terminal Block

(2) Copper

(2) RJ45

* For fiber options please see page 168.

NEMA TS2

Teaming Data Systems for

Portable Power

Industry: Power & Energy

Product: Modbus Gateways

Get the free mobile app at

http://gettag.mobi

www.bb-elec.com/

PortablePower

MESR901

Carrier data charges

may apply.

Transwestern Pipeline

Maximizes Gas

Chromatography Investment

Industry: Petroleum, Oil & Gas

Product: Modbus Gateways

Get the free mobile app at

http://gettag.mobi

www.bb-elec.com/

Pipeline

MESR901, MESR902T

Carrier data charges

may apply.

In thE FIEld

In thE FIEld
