Biasing Resistors

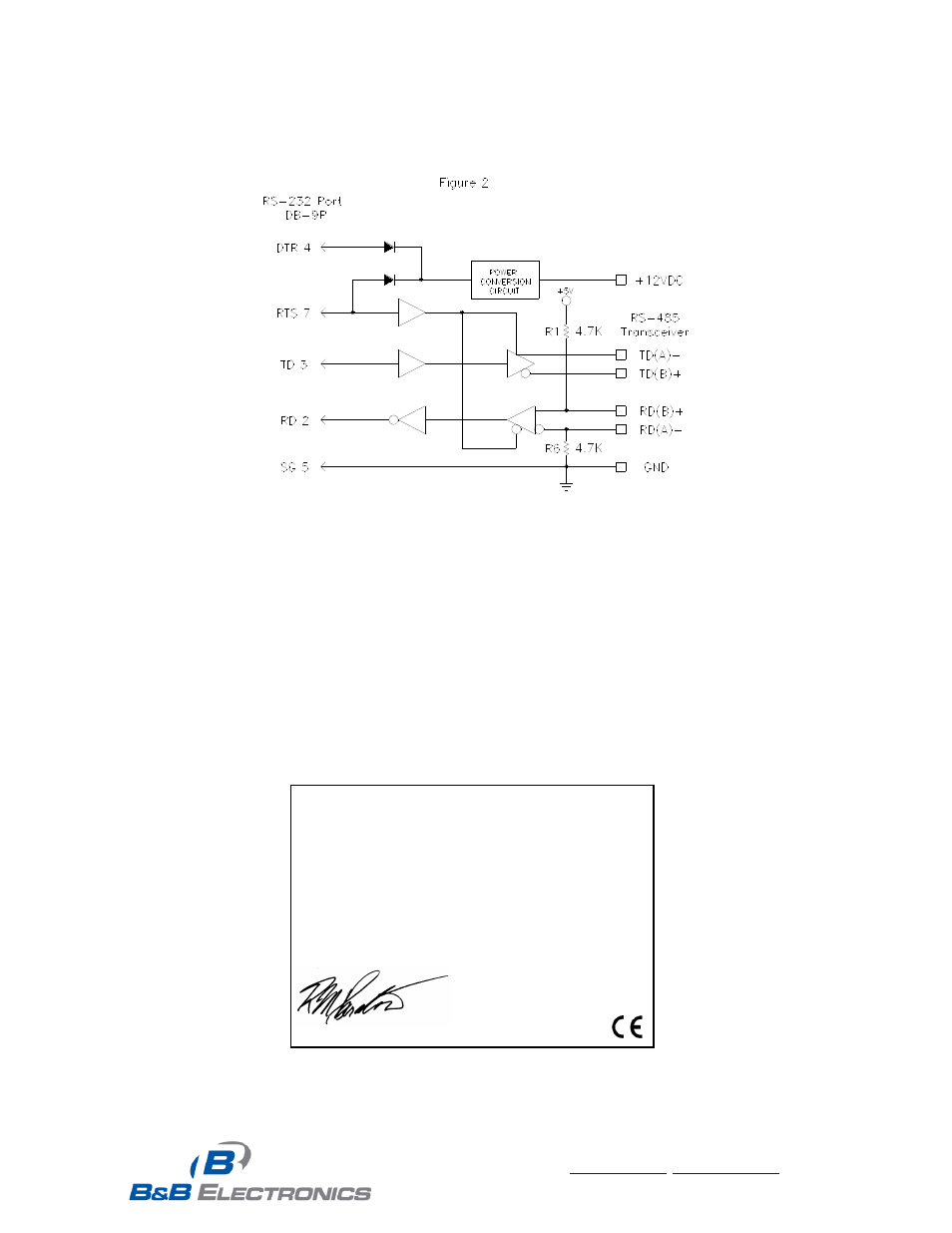

The biasing resistors for the RS-422/RS-485 receiver are 4.7K Ohm resistors. These resistors are labeled R1 and R6
(See Figure 2). Refer to B&B Electronics RS-422/485 Application Note for further information on biasing.
Specifications
Data Rate: 115.2K Baud max.
Power:
Port Powered from RTS and DTR.
NOTE: If external power is required, use a source that can supply 12 to 16VDC at 40mA
NOTE: When using an external supply, the supply should be connected only to specifically labeled power inputs
(power jack, terminal block, etc.). Connecting an external power supply to the handshake lines may damage the
unit. Contact technical support for more information on connecting an external power supply to the handshake
lines.
DECLARATION OF CONFORMITY
Manufacturer’s Name:
B&B Electronics Manufacturing Company
Manufacturer’s Address:
P.O. Box 1040
707 Dayton Road
Ottawa, IL 61350 USA
Model Numbers:
485LP9TBN
Description:
Port-Powered RS-232 to RS-485 Converter
Type:
Light industrial ITE equipment
Application of Council Directive:
89/336/EEC
Standards:
EN 50082-1 (IEC 801-2, IEC 801-3, IEC 801-4)
EN 50081-1 (EN 55022, IEC 1000-4-2)
EN 61000 (-4-2, -4-3, -4-4, -4-5, -4-6, -4-8, -4-11)
ENV 50204
EN 55024
Robert M. Paratore, Director of Engineering
