I-7044 / I-7044D - 5003 2/2

International Headquarters:

707 Dayton Road P.O. Box 1040 Ottawa, IL 61350 USA

815-433-5100 Fax 433-5104 www.bb-elec.com [email protected] [email protected]


Westlink Commercial Park Oranmore Co. Galway Ireland

+353 91 792444 Fax +353 91 792445 www.bb-europe.com [email protected] [email protected]

Integrate – Expand – Simplify

B&B ELECTRONICS

PRODUCT INFORMATION

LED Indication

(Only for I-7044D)


RS-485 Connector

Asynchronous 2-wire half-duplex
Pluggable terminal block: Pitch 5.08mm

Baud Rate

1.2K/2.4K/4.8K/9.6K/19.2K/38.4K/57.6K/115.2K bps

Wire Connection





































Power Requirements

Power input:

+10 to +30VDC input

Power Consumption
1.0Watt for I-7044
1.7Watt for I-7044D

Environmental

Storage temperature:

-25 to 80°C (-13 to 176 °F)

Operation temperature: -20 to 75°C (-4 to 167 °F)
Humidity:

5 to 95%, non-condensing

Dimensions LxWxH

: 120 x 72 x 33 cm

47.2 x 28.4 x 13.0 in

Certification

:

CE

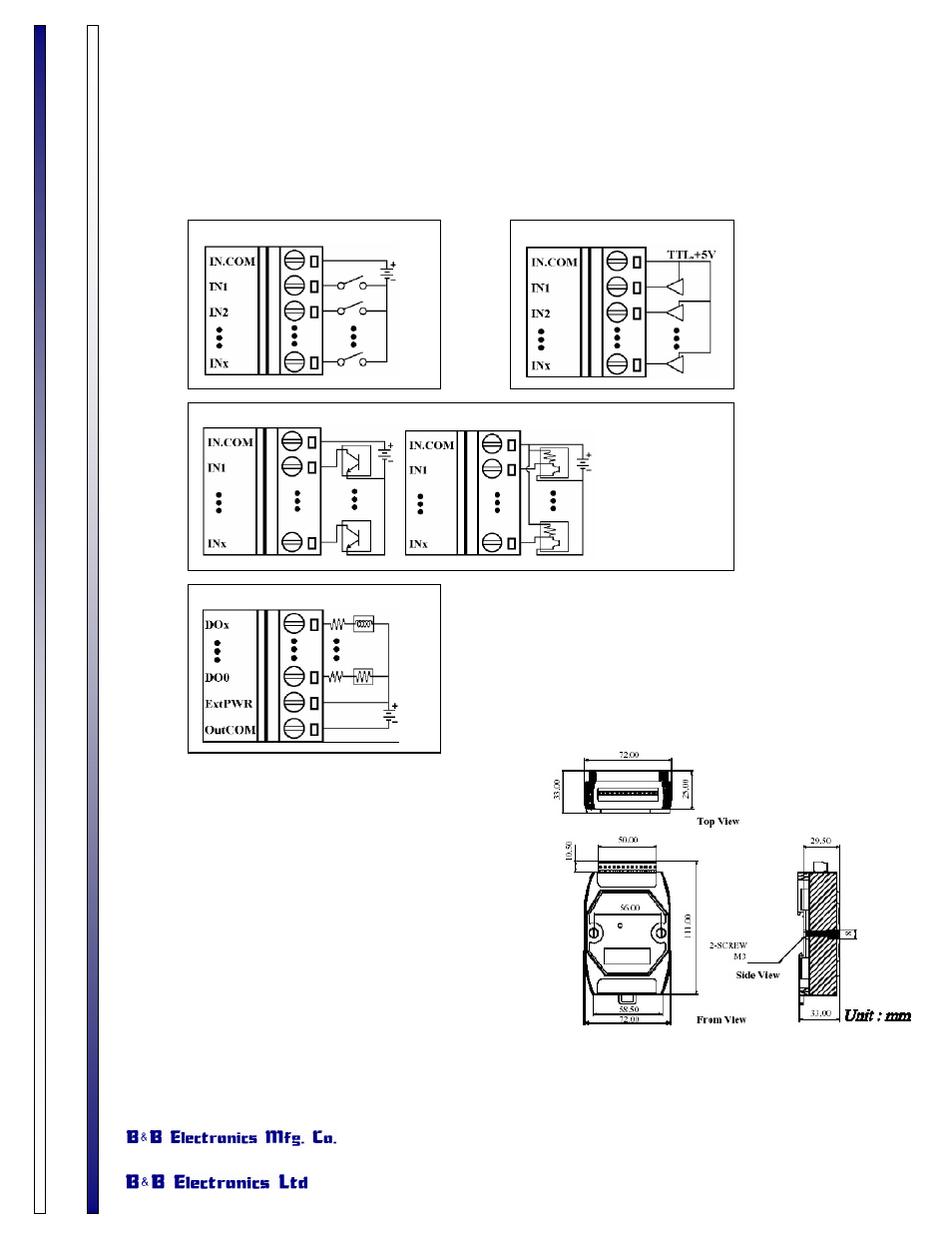

Dry Contact signal input

TTL/CMOS signal input

Open Collector signal input

Open Collector output
