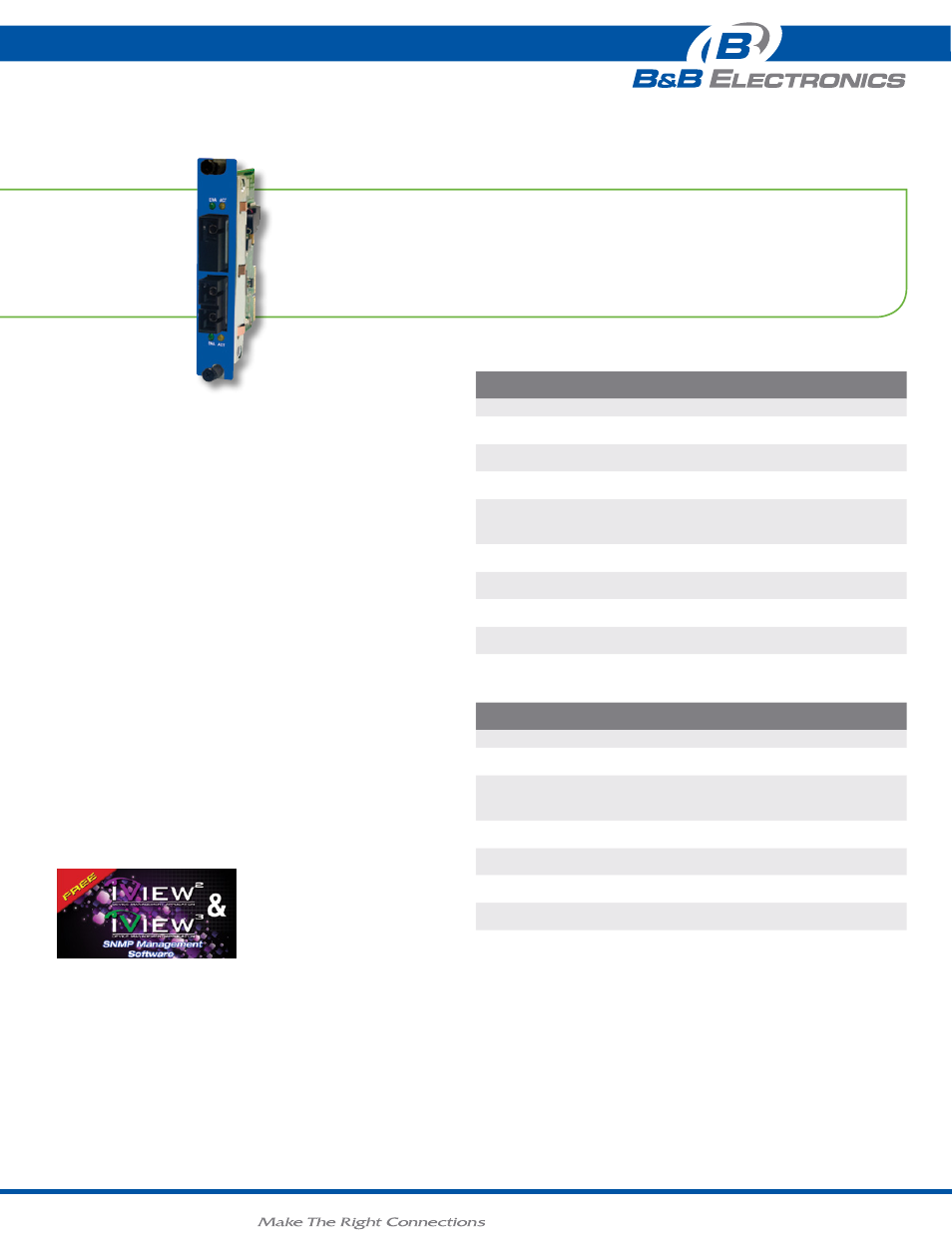

protocol-Independent, snmp-manageable Fiber

mode conversion modules

iMcV-S2SM

In today’s dynamic networks, changing requirements are a fact of life.
The multi-mode fiber products and cabling which were the most cost-
effective and sound choice for your network yesterday may no longer
give you the flexibility you require when adding remote offices today.
Extend a single mode conversion to another single mode fiber segment,
using an S2SM.

As an economical alternative to using a switch with single-mode fiber
ports, simply install an fiber mode converter into your multi-mode fiber
network. This enables you to easily connect to single-mode cabling and
achieve distances up to 80 km. Our fiber mode converters also give you
the flexibility to add single-mode fiber links only where needed. The
iMcV-S2SM fiber mode conversion modules includes:

• Converts Single-Mode to Single-Sode fiber
• Supports 10 Mbps Ethernet to 155 Mbps or 1.25 Gbps

Gigabit Ethernet

Hot-swappable fiber mode conversion modules significantly reduce
operation costs by allowing other modules within the same chassis
to remain up and running during product upgrades, maintenance and
troubleshooting.

• Includes protocol-independent operation
• Converts single-mode to single-mode fiber
• Supports 10 Mbps Ethernet to 155 Mbps or 1.25 Gbps

Gigabit Ethernet

product FEaturEs

ordErIng InFormatIon

Model

nuMBer

desCriPtion

Port 1

distanCe

Port 1

desCriPtion

Port 2

distanCe

Port 2

iMcv-s2sM (single-mode to single-mode)
850-14519

SM1310/PLUS-SC

40 km

SM1310/

PLUS-SC

40 km

850-14505

SM1310/LONG-SC

40 km

SM1310/

LONG-SC

40 km

850-14513

SM1550/LONG-SC

80 km

SM1310/

PLUS-SC

40 km

850-14514-LC SM1550/LONG-SC

80 km

SM1310/

LONG-LC

40 km

single-strand Fiber
850-14515

SSFX-SM1310-SC

(1310xmt/1550rcv)

20 km

SM1310/

PLUS-SC

40 km

850-14516

SSFX-SM1550-SC

(1550xmt/1310rcv)

20 km

SM1310/

PLUS-SC

40 km

850-14517

SSFX-SM1310/PLUS-SC

(1310xmt/1550rcv)

40 km

SM1310/

LONG-SC

40 km

850-14518

SSFX-SM1550/PLUS-SC

(1550xmt/1310rcv)

40 km

SM1310/

LONG-SC

40 km

ordErIng InFormatIon

Model

nuMBer

desCriPtion

Port 1

distanCe

Port 1

desCriPtion

Port 2

distanCe

Port 2

iMcv-s2sM/1250 (single-mode to single mode)
859-14803 LX-SM1310/PLUS-SC

40 km

LX-SM1310/

PLUS-SC

40 km

859-14804 LX-SM1310/PLUS-SC

40 km

LX-SM1550/

LONG-SC

80 km

single-strand Fiber
859-14820 SSLX-SM1310-SC

(1310xmt/1550rcv)

15 km

LX-SM1310/

PLUS-SC

40 km

859-14821 SSLX-SM1550-SC

(1550xmt/1310rcv)

15 km

LX-SM1310/

PLUS-SC

40 km

859-14822 SSLX-SM1310/PLUS-SC

(1310xmt/1550rcv)

40 km

LX-SM1310/

PLUS-SC

40 km

859-14823 SSLX-SM1550/PLUS-SC

(1550xmt/1310rcv)

40 km

LX-SM1310/

PLUS-SC

40 km

iMcV-S2SM also available in CWDM Fiber.

Call for details.

iView: Windows 2000/XP/Vista/Win7

iMcV-S2SM_3713ds
