10/100/1000 mbps poE+ switching
media converter
PoE+ Giga-McBasic LFPT
10/100/1000 mbps poE+ switching
media converter
PoE+ Giga-McBasic LFPT

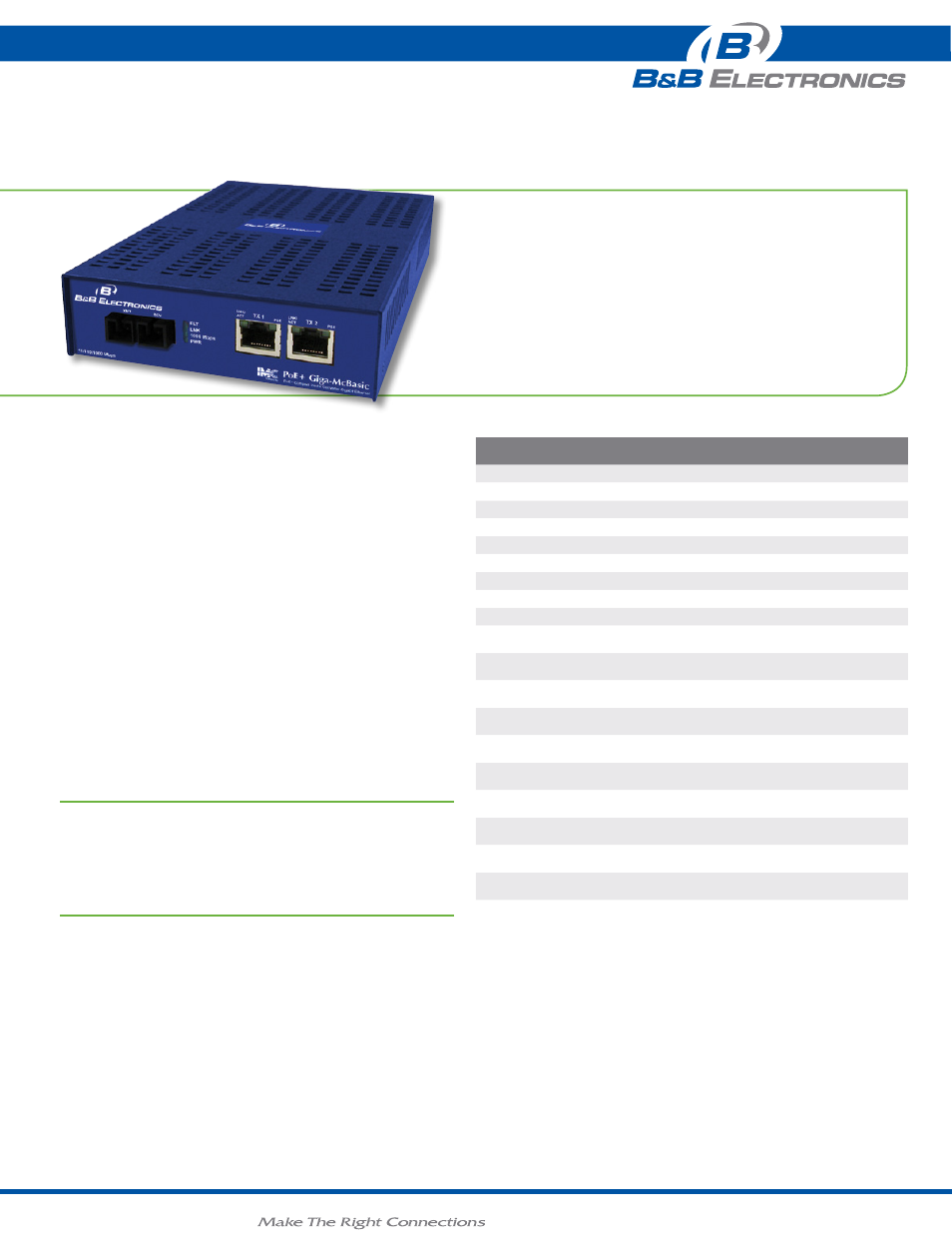

The PoE+ Giga-McBasic LFPT are the perfect solutions for network
applications that require Power over Ethernet for locations inside
buildings where PoE is required to power an Ethernet device. Their
small, table-top design and durability make them perfect for installation
anywhere space is limited. Additionally, both units are manufactured
with an internal AC power supply. An LFPT DIP Switch is available to
enable for diagnostic troubleshooting.
The PoE+ Giga-McBasic LFPT unit comes with one SFP or fixed fiber
transceiver and two PoE/PSE 10/100/1000Base-T copper. Each port
provides 25.5 Watts of power with data.
As a fiber-fed media converter, it provides both power and data to a
remote device over standard CAT5, eliminating the need for additional
power to the remote device. The copper ports Auto Negotiate to the
connected device’s speed and duplex mode: 10 Mbps, 100 Mbps or
1000 Mbps, and HDX or FDX (including Flow Control). Additionally, both
models support jumbo frames up to 10240 bytes.
• Connects 10/100/1000 Mbps copper to 100 or 1000 Mbps fiber SFP
or 10/100/1000 Mbps or 1000 Mbps copper SFP
• Supports Jumbo Frames (up to 10240 bytes)
• Rugged standalone metal enclosure with internal power supply
• Features configurable PoE reset on Fiber Loss of Signal (LOS)
• Supports LFPT, a diagnostic feature that can be enabled to assist the
end user in troubleshooting a failed segment
• Supports IEEE 802.3af PoE (15.4W)
product FEaturEs
ordErIng InFormatIon
Model
nuMBer
FiBer
FiBer
Ports range
ethernet
Ports
ethernet
ConneCtor
Poe+ giga-McBasic lFPt *
852-11911 SFP
1 Various 2 RJ45
852-11912 SX-MM850-SC 1 220/550 m 2 RJ45
852-11913 LX-MM1300-SC 1 2 km 2 RJ45
852-11914 LX-SM1310-SC 1 10 km 2 RJ45
852-11915 LX-SM1310/PLUS-SC 1 40 km 2 RJ45
852-11916 LX-SM1550/LONG-SC 1 80 km 2 RJ45
852-11917 LX-SM1550/XLONG-SC 1 100 km 2 RJ45
Poe+ giga-McBasic lFPt single-strand Fiber **
852-11920 SSLX-SM1310-SC
(1310 xmt/1550 rcv)
1 15 km 2 RJ45
852-11921 SSLX-SM1550-SC
(1550 xmt/1310 rcv)
1 15 km 2 RJ45
852-11922 SSBX-SM1310-SC
(1310 xmt/1490 rcv)
1 10 km 2 RJ45
852-11923 SSBX-SM1490-SC
(1490 xmt/1310 rcv)
1 10 km 2 RJ45
852-11924 SSLX-SM1310/PLUS-SC
(1310 xmt/1550 rcv)
1 40 km 2 RJ45
852-11925 SSLX-SM1550/PLUS-SC
(1550 xmt/1310 rcv)
1 40 km 2 RJ45
852-11926 SSBX-SM1490/PLUS-SC
(1490 xmt/1310 rcv)
1 30 km 2 RJ45
852-11927 SSBX-SM1310/PLUS-SC
(1310 xmt/1490 rcv)
1 30 km 2 RJ45
852-11928 SSLX-SM1490/LONG-
SC (1490 xmt/1550 rcv) 1
70 km 2 RJ45
852-11929 SSLX-SM1550/LONG-
SC (1490 rcv)
1 70 km 2 RJ45
** These products have single-strand fiber technology. Deploy in pairs or connect another compatible
B&B IMC LLC single-strand fiber product.
* SFP Fiber sold separately
PoE+ Giga-McBasic LFPT also available in CWDM Fiber.
Call for details.
accEssorIEs
895-39226 - Rackmount Bracket
895-39227 - Wallmount Brackets
895-39949 - Rackmount Shelf
PoE+ Giga-McBasic LFPT_3713ds
