PRODUCT INFORMATION
B&B ELECTRONICS
Functional Description
• Meets NEMA TS1/2 Environmental requirements for temperature, shock, vibration for traffic control equipment.
• Meets IEC61000-6-2 EMC Generic Standard Immunity for industrial environment.
• Support 802.3/802.3u/802.3x. Auto-negotiation: 10/100Mbps, Full/half-duplex; Auto MDI/MDIX.
• 100BaseFX: Multi mode SC or ST type; Single mode SC type.
• Support 2K MAC addresses. Provides 96K bytes memory buffer.
• Alarms for power failure by relay output.
• Redundant 10-30 VDC terminal block power inputs.
• Operating temperature ranges from -34 to 74°C.
• Supports Din-rail mounting installation.

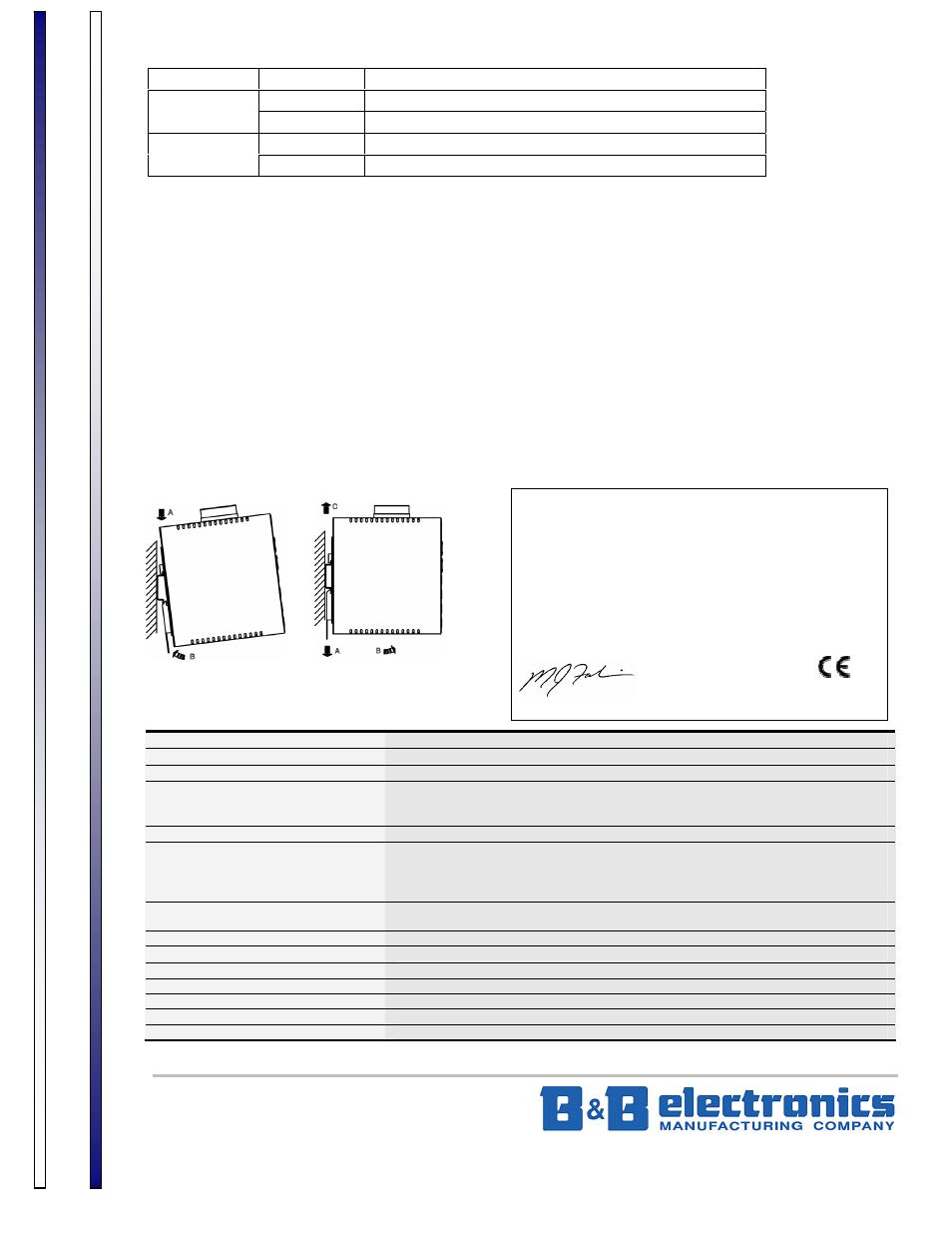

Assembly, Startup, and Dismantling
• Assembly: Place the switch on the DIN rail from above using the slot. Push the front of the switch toward the
mounting surface until it audibly snaps into place.
• Startup: Connect the supply voltage to start up the switch via the terminal block.
• Dismantling: Pull out the lower edge and then remove the switch from the DIN rail.
Specifications
Hardened Compact Switch 10/100BaseT/TX auto-negotiating ports with RJ-45 connectors, 100BaseFX fiber ports
Applicable Standards IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX/FX
Switching Method Store-and-Forward
Forwarding Rate
10BaseT:
100BaseTX/FX:
10 / 20Mbps half / full-duplex
100 / 200Mbps half / full-duplex
Performance 148,80pps for 10Mbps, 148,800pps for 100Mbps
Cable
10BaseT:
100BaseTX:
100BaseFX:
2-pair UTP/STP Cat. 3, 4, 5 up to 100m
2-pair UTP/STP Cat. 5 up to 100m
MMF (50 or 62.5µm), SMF (9 or10µm)
LED Indicators Per unit – Power status (PWR1, PWR2)
Per port – LNK/ACT – (Green) 10/100TX or 100FX, 100 – (Yellow) 10/100TX or 100FX
Dimensions / Net Weight W13.5 cm × D12.5 cm × H5 cm Compact Size / 0.8kg approx.
Power Input Terminal Block: 24VDC @ 400mA
Power Consumption 9.6W Maximum
Operating / Storage Temperature -34°C to 74° C / -45°C to 93°C
Humidity 10%-95% non-condensing
Safety UL/CUL 60950, EN60950, IEC 60950, IEC61000-6-2
Emissions FCC Class A, CE Class A
LED State Indication
Steady Network connection established, LNK stands for LINK LNK/ACT
(Green) Flashing Transmitting or receiving data, ACT stands for ACTIVITY
Steady 100 Mbps data 10/100
(Yellow) Off 10 Mbps data
DECLARATION OF CONFORMITY
Name: B&B Electronics Manufacturing Company
Address: P.O. Box 1040
707 Dayton Road
Ottawa, IL 61350 USA
Model Numbers: EIR305-1ST, EIR305-1SC, EIR306, EIR308,
EIR308-2ST, EIR308-2SC, EIR308-2SC-SM
Description: 5, 6, 8 port Ethernet Switches [
Type: Light industrial ITE equipment
Application of Council Directive: 89/336/EEC
Standards: EN 55022
EN 61000 (-3-2, -3-3)
EN 61000 (-4-2, -4-3, -4-4, -4-5, -4-6, -4-8, -4-11)
Michael J. Fahrion, Director of Engineering
