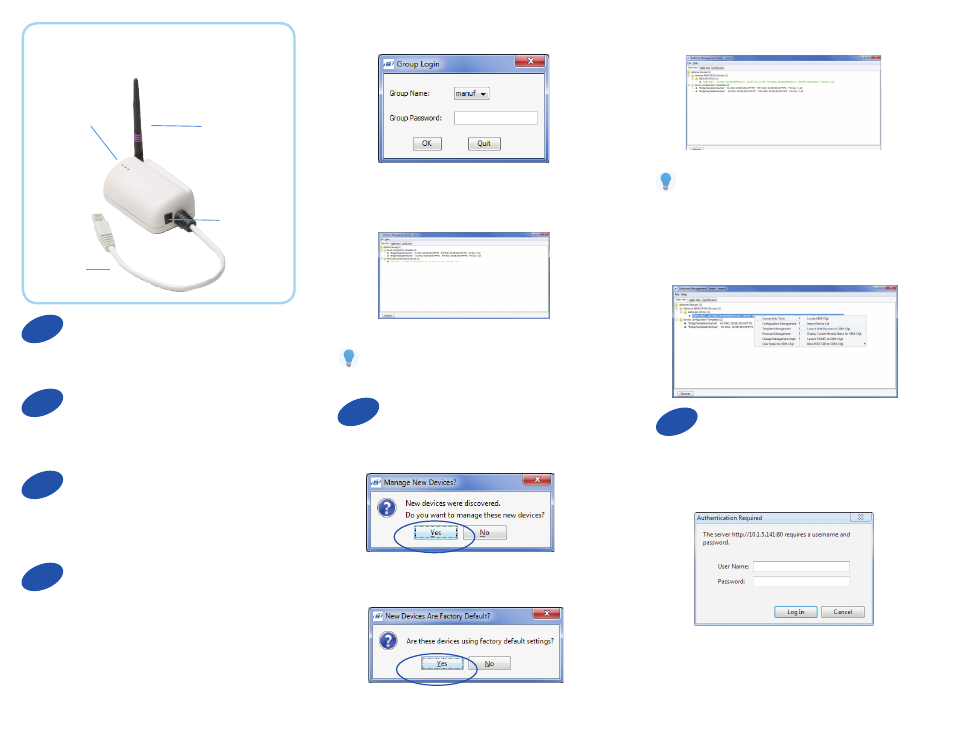

AMC will display the found Airborne device(s):

Connect Ethernet

Attach the Antenna

Note: You may be required to wait up to 180

seconds before the device is discovered and

displayed.

Connect the Antenna to the antenna connector located

on top of the device.

LAN

Cable

Run the Airborne Management Center (AMC) application.

If you don’t currently have AMC installed, you can install it

from the included CD or download and install it from the

B&B website. Just search for the model number and follow

the links to download software from the Downloads section

of the product page

Connect Power Supply

Product Overview

Power

Port

When AMC starts, it will request a login:

Select Group Name: “manuf” and enter Group

Password: “dpac”

AMC will load and discover the attached device:

Connect to the Device

4

Right click the device’s name. Under “Connectivity Tools”

choose “launch Web browser for OEM-Cfg1.” This will

open the device’s browser-based management window.

Login to web interface:

Username “dpac”

Password: “dpac”

Antenna

LEDs

Connect the Ethernet cable to an Ethernet port on a host

computer or network router/switch.

Plug the barrel connector of the AC power supply into the

power port. Plug the power supply into an AC outlet.

5

AMC will ask if you want to manage the new device,

select ‘Yes’:

Manage Your Device

Select ‘Yes’ to indicate device is using Factory Default

settings:

6

Configure Your Device

Continue configuration via the Web interface. Start

with the Configuration -> Express Setup page.

Continued on the next page...

Tip: To easily convert a Direct Ethernet device to

a bridge, use the Bridge Templates in AMC. For

additional information, search the B&B Knowledge

base for “bridge templates”.
