modular 10/100/1000 mbps
Ethernet media/mode converter
IE-iMcV-MultiWay
(dimensions in inches )

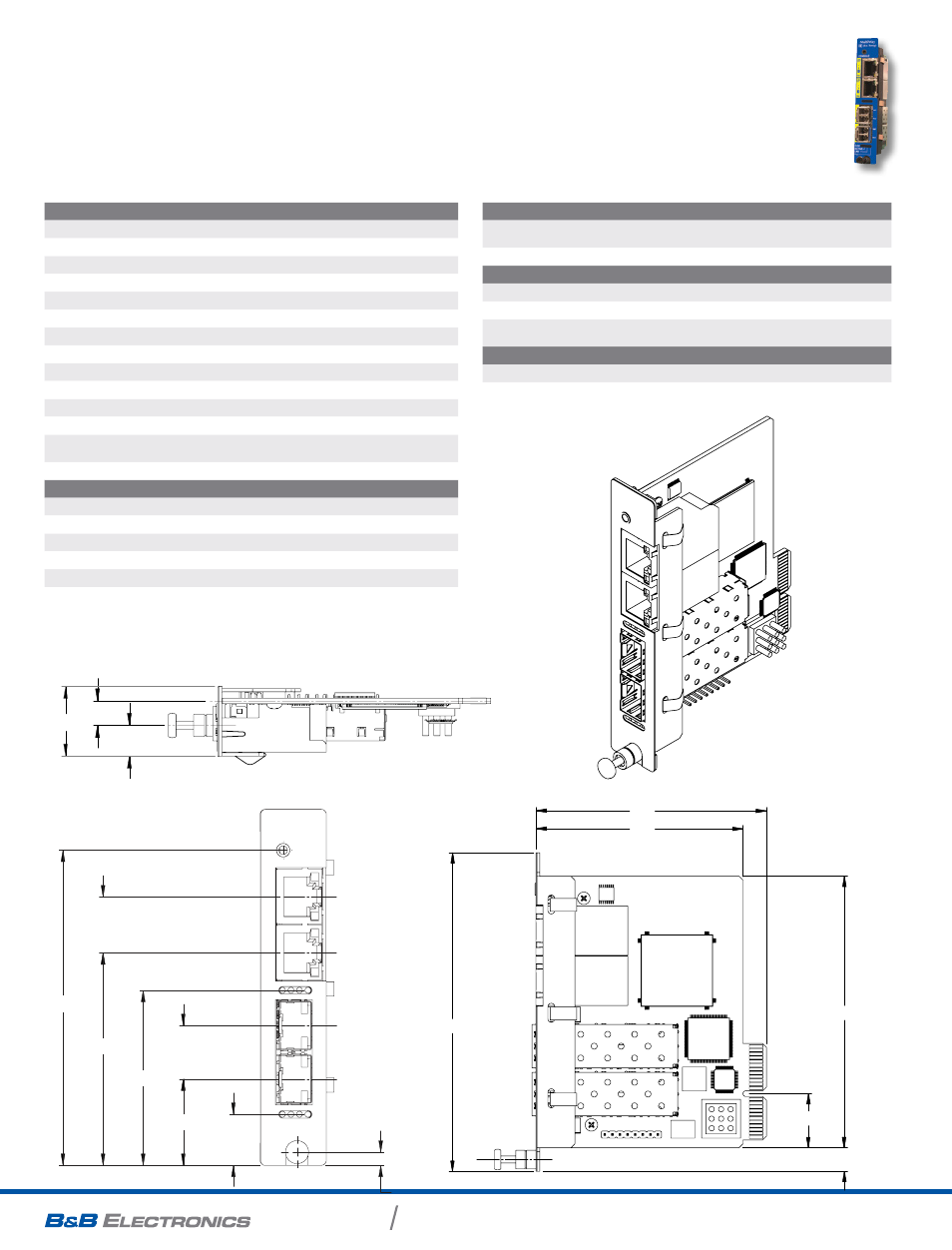

mEchanIcal dIagram
SpecificationS
Technical
IEEE 802.3 10Base-T twisted pair
IEEE 802.3u 100Base-TX twisted pair
IEEE 802.3ab 1000Base-T twisted pair
IEEE 802.3z 1000Base-LX or SX fiber
Extended temperature range
Plug-and-play operation
Accepts RJ-45 and SFP connectors
50/125µm or 62.5/125µm multi-mode fiber
9/125µm single-mode fiber
Single-strand fiber and CWDM models
FX and TX Auto Negotiation
AutoCross for MDI/MDIX
Layer 2 packet switching, store and forward (forwarding rate: 14,880 pps for 10
Mbps, 148,000 pps for 100 Mbps, 1,480,000 Mbps for 1,000 Mbps)
Jumbo Frames support (up to 10240) at Gigabit speed
STandard compliance
IEEE 802.3ah
IEEE 802.1ag
IEEE 802.1q VLAN
SFP-MSA SFP standard (September 14, 2000)
SFF-8472 DDMI standard (Revision 1.0)
Mechanical
Dimensions
4.19”H x 0.78”W x 2.75”D
(10.74 x 2 x 7.05 cm)
Shipping Weight 0.30 lbs (.11 kg)
environMental
Operating Temperature: -40° F to +185° F (-40° C to +85° C)
Storage Temperature: -67 F to +257° F (-55° C to +125° C)
Operating Humidity
5% to 95% (non-condensing),
0 – 10,000 ft. altitude
regulatory approvals
FCC Class A
UL, cUL, CE
