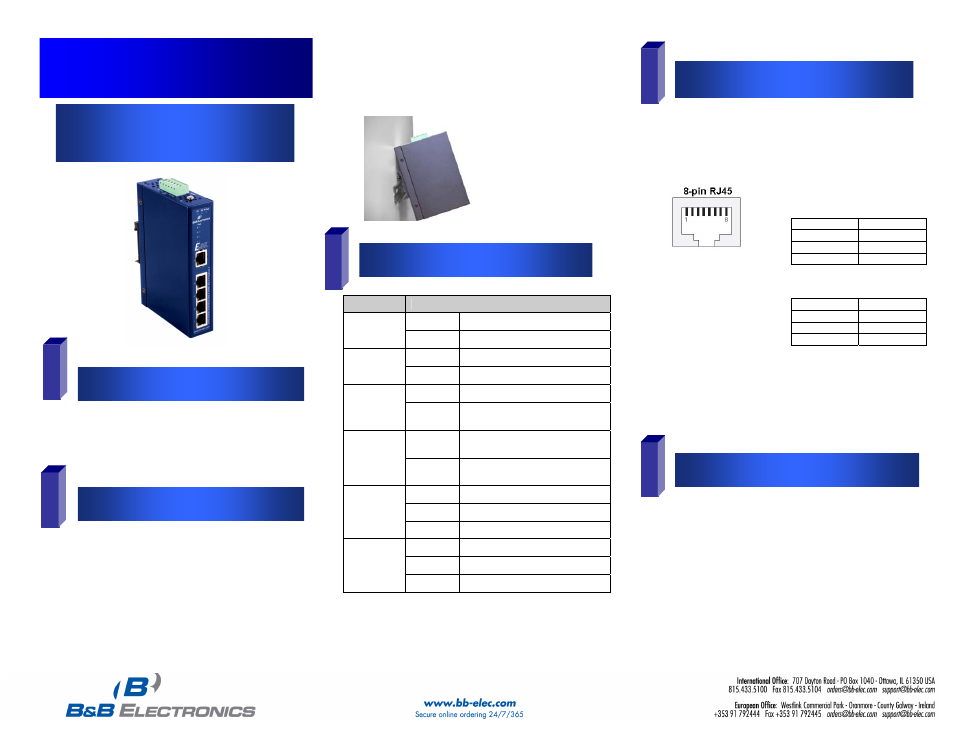

EIRP305-T-1012qsg

Quick Start Guide

Elinx PoE Ethernet Switch

EIRP305-T

Items Included

1

2

Hardware Installation

3

LED Chart

4

Ports

5

Installation Complete

o

Ethernet

Switch

o

CD with Support Manual

o

This Quick Start Guide

o

Panel Mount Bracket


1.

Select a mounting location and install the
switch onto a piece of DIN rail or use the
included panel mount brackets for wall or
panel mounting

2.

Connect power to the switch
ƒ 48

VDC

ƒ

If redundancy is desired be sure to
connect two separate power supplies by
using the two DC inputs on the terminal
blocks

ƒ

If only one power input is used the Fault
LED will light (this is normal)











LED

Description

Green

Power input 1 is active

P1

Off

Power input 1 is inactive

Green

Power input 2 is active

P2

Off

Power input 2 is inactive

Red

Power input 1 or 2 is inactive

Fault

Off

Power input 1 and 2 are both
active, or no power is present

Green

The port is supplying power to
the connected device

FWD
(1 to 4)

Off

No device attached or no power
being supplied

Green

Connected to network

Flashing

Networking is active

RJ-45
Upper LED

Off

Not connected to network

Yellow Full-duplex

link

Flashing Collision

occurs

RJ-45
Lower LED

Off

Half-duplex link or link down


RJ-45 ports: The RJ-45 ports auto-sense for 10 or 100 Mbps
device connections. The auto MDI/MDIX feature allows
connections to switches, workstation and other equipment
without changing straight through or crossover cabling. The
charts below show the cable pin assignments for straight
through and crossover cables.

















PoE ports
: The PoE ports on this switch follow Alternative A
standards and are limited to 15.4 Watts of power output per
port. Ports 1 thru 4 support the IEEE802.3af standard and
are classified as (PSE) power sourcing equipment, which
means they can be used to power (PD) powered devices.






MDI Cable Pinout

Pin

Signal

1 Tx+
2 Tx-
3 Rx+
6 Rx-

MDI-X Cable Pinout

Pin

Signal

1 Rx+
2 Rx-
3 Tx+
6 Tx-

1. Auto MDI/MDI-x is
supported. A straight
through or cross-over
cable may be used.

2. 10/100 auto
negotiation and full/half-
duplex are supported.

1. When the network cables are attached and power

is applied, installation is complete.

2. The switch will automatically discover network

devices, populate its MAC address table, and
pass traffic to the appropriate ports.
