Common Specifications
Environment
ƒ Humidity 5 ~ 95% RH
ƒ Operating ADAM-4541/4542+: -10 ~ 70° C (14 ~ 158° F)
Temperature ADAM-4561/4562: 0 ~ 70° C (32 ~ 158° F)
ƒ Storage Temperature -25 ~ 85°C (-13 ~ 185°F)
Ordering Information
ƒ ADAM-4541 Multi-mode Fiber
to RS-232/422/485
Converter
ƒ ADAM-4542+ Single-mode Fiber
to RS-232/422/485
Converter
ƒ ADAM-4561 1-port Isolated USB
to RS-232/422/485
Converter
ƒ ADAM-4562 1-port Isolated USB to
RS-232 Converter
Multi-mode Fiber Optic to RS-232/422/485
Converter
Single-mode Fiber Optic to RS-232/422/485
Converter
1-port Isolated USB to RS-232/422/485
Converter
Specifications
General
ƒ Power Input Unregulated 10 ~ 30 V
DC
ƒ Connectors 1 x plug-in terminal block
(#14 ~ 22 AWG)
(RS-232/422/485)
2 x ST fiber connector
ƒ Power Consumption 1.5 W @ 24 V
DC
Serial Communications
ƒ Communication Asynchronous
Mode
ƒ Speed Modes (bps) 1,200, 2,400, 4,800,
9,600, 19.2 k, 38.4 k, 57.6
k, 115.2 k and
RS-232/422 mode
(switchable)
ƒ Transmission Mode Full/half duplex,
bidirectional
Fiber Optic Communications
ƒ Optical Power Budget 12.5 dB (measured with
(Attenuation) 62.5/125 μm)
ƒ Transmission 2.5 km
Distance
ƒ Transmission Mode Multi mode
(Send and Receive)
ƒ Wavelength 820 nm
Specifications
General
ƒ Power Input Unregulated 10 ~ 30 V
DC
ƒ Connectors 1 x plug-in terminal block
(#14 ~ 22 AWG)
(RS-232/422/485)
1 x SC fiber connector
ƒ Power Consumption 3 W @ 24 V
DC
Serial Communications
ƒ Communication Asynchronous
Mode
ƒ Speed Modes (bps) 1,200, 2,400, 4,800,
9,600, 19.2 k, 38.4 k,
57.6 k, 115.2 k and
RS-232/422 mode
(switchable)
ƒ Transmission Modes Full/half duplex,
bidirectional
Fiber Optic Communications
ƒ Optical Power Budget 15 dB
(Attenuation)
ƒ Transmission 15 km
Distance
ƒ Transmission Mode Single mode
(Send and Receive)
ƒ Wavelength 1310 nm

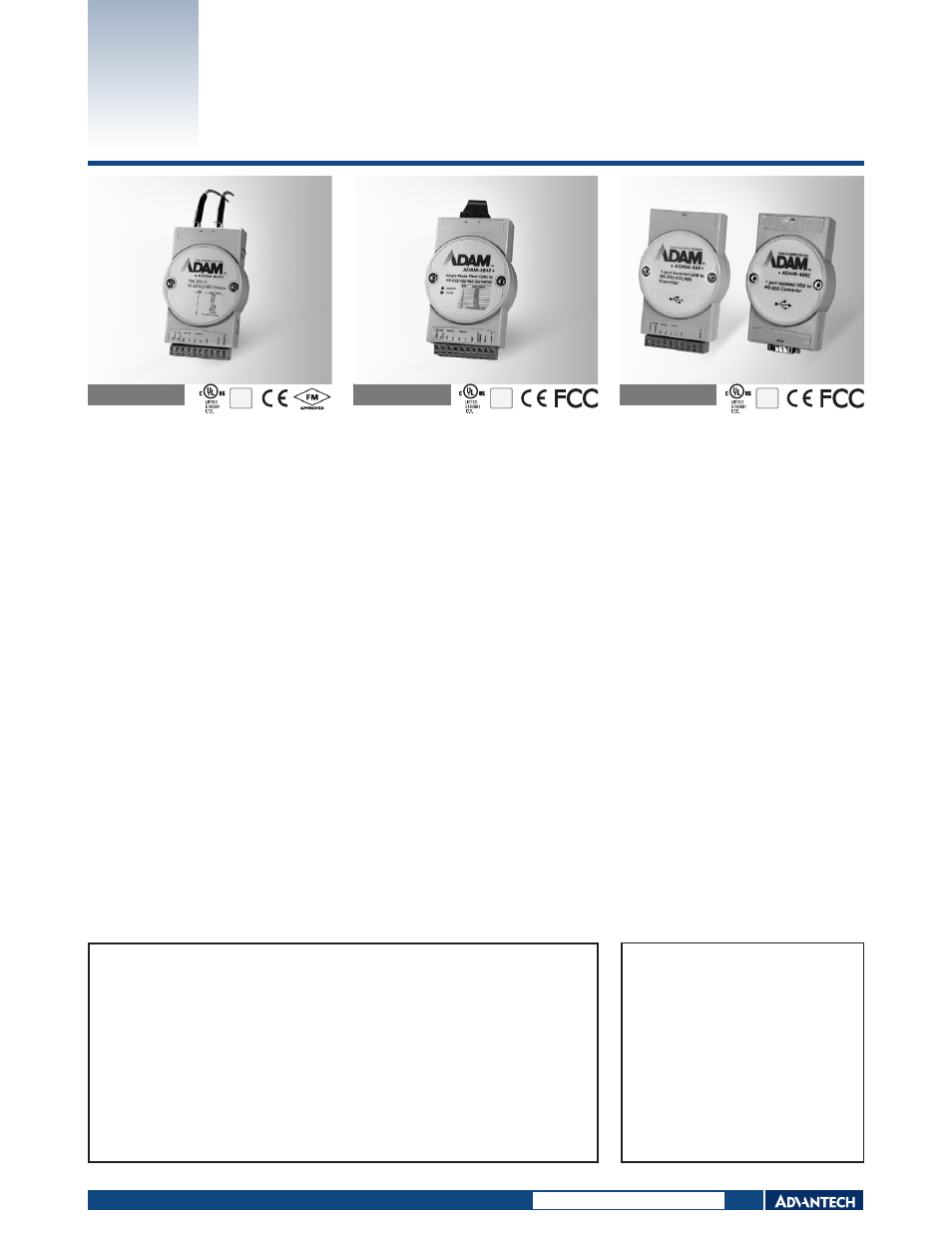

ADAM-4541 ADAM-4542+
ADAM-4541
ADAM-4542+
ADAM-4561/4562
ADAM-4561/4562
Specifications
General
ƒ Connectors
Network: USB-type A connector (type A to type B
cable provided)
Serial:
ADAM-4561
1 x plug-in terminal
(#14 ~ 22 AWG)
(3-wire
RS-232/422/485)
ADAM-4562 1 x DB-9 serial
connectors
(9-wire RS-232)
ƒ Isolation Voltage
ADAM-4561:
3,000 V
DC
ADAM-4562: 2,500 V
DC
ƒ Power Consumption
ADAM-4561:
1.5 W @ 5 V
ADAM-4562: 1.1 W @ 5 V
ƒ Driver Support Windows 98/2000/XP
ƒ Full Compliance with USB v1.1 specifications
Serial Communications
ƒ Speed Modes (bps) 75 bps to 115.2 kbps
ƒ Transmission Modes Full/half duplex,
bidirectional
RoHS
COMPLIANT
2002/95/EC
RoHS
COMPLIANT
2002/95/EC
RoHS
COMPLIANT
2002/95/EC
