International Office: 707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104

European Office: Westlink Commercial Park Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445

[email protected]

[email protected]

spectre rt Industrial routers

ERT31x Series

sPecIFIcAtIons

interFaces

Standard
Ethernet

10/100 Mb

USB

USB Type A Host

Binary I/O

1 input/1 output

Port Options
Port 1

Ethernet 10/100, RS-232, RS-422/485, Modbus,

CNT (I/O)

Port 2

RS-232, RS-422/485, Modbus, CNT (I/O)

I/O CNT

4 Binary inputs, 1 Binary output (2 inputs maybe

configured as counters)

2 Analog inputs, I Binary output

internal

32b ARM microprocessor
512 Mb DDR SDRAM
128 Mb Flash
1 Mb MRAM

Power

Source

10 – 30 VDC

Consumption

Max. 200 mA (12 VDC)

Mechanical

Dimensions

11.4 x 9.5 x 4.2 cm (4.49 x 3.74 x 1.65 in)

Enclosure

Metal

Weight

150 g

enVironMental

Operating Temperature

-40 to 75°C

Storage Temperature

-40 to 85°C

Features

Networking

DHCP – automatic IP addressing in LAN network
NAT – IP address and ports translation between inside/outside

network
Firewall: filtering of addresses, ports, protocols
VRRP – virtual backup router function
DynDNS client – access to the router with a dynamic IP address
VLAN 802.11Q: virtual LAN
QoS: quality of service
Dial-in – Communicate via CSD call
NTP client, NTP Server: time synchronization
PPPoE Bridge – PPP frames encapsulation inside ETH frames

VPN Tunneling

IPsec, OpenVPN, L2TP – secure encrypted tunnels
GRE tunnel – simple tunnel without security measures

Configuration

and

Diagnostics

HTTP server – configuration via web server
Telnet – configuration and access to the file system
SNMP – router diagnostics, communication with I/O and M-BUS
Remote router group configuration change, switching among

configuration profiles
SSH – encrypted configuration and access to the file system

Additional

Functions

Linux based: program your own applications
AT commands on RS232, Ethernet and I/O
M-RAM memory inside – router statistic saved into memory

aPProVals / certiFications

CE, FCC, NEMA TS2

EN 301 511, v9.0.2

EN 301 908-1&2, v3.2.1

ETSI EN 301 489-1 V1.8.1

EN 60950-1:06 ed.2 + A11:09 + A1:10

IEC60068-2-27, Shock 50G peak, 11ms, 3 axes

IEC60068-2-6, Vibration 10-500Hz, 4G, 3 axes

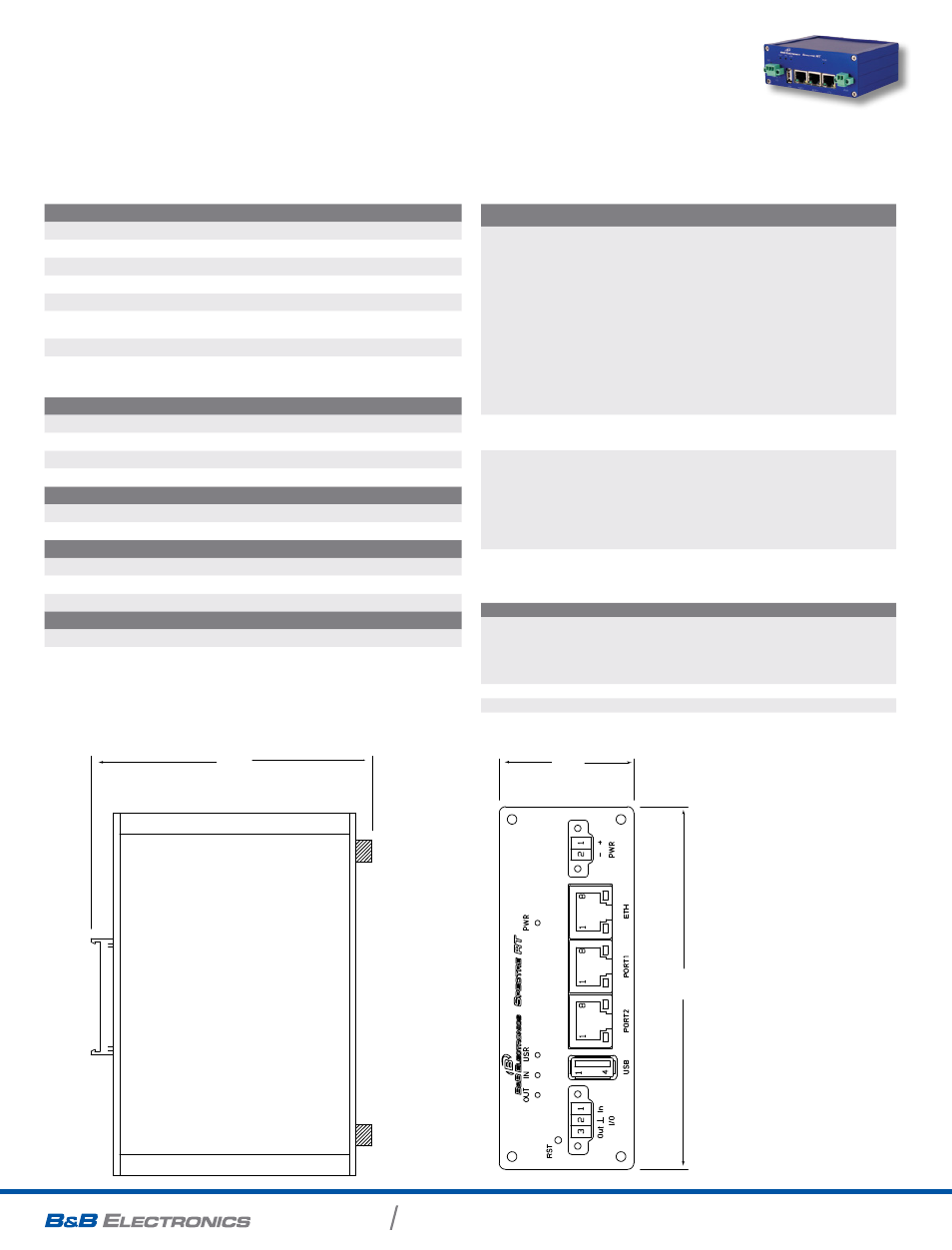

mechAnIcAl dIAgrAm

9.5 cm

3.74 in

4.2 cm

1.65 in

11.4 cm

4.49 in

9.5 cm

3.74 in

4.2 cm

1.65 in

11.4 cm

4.49 in
