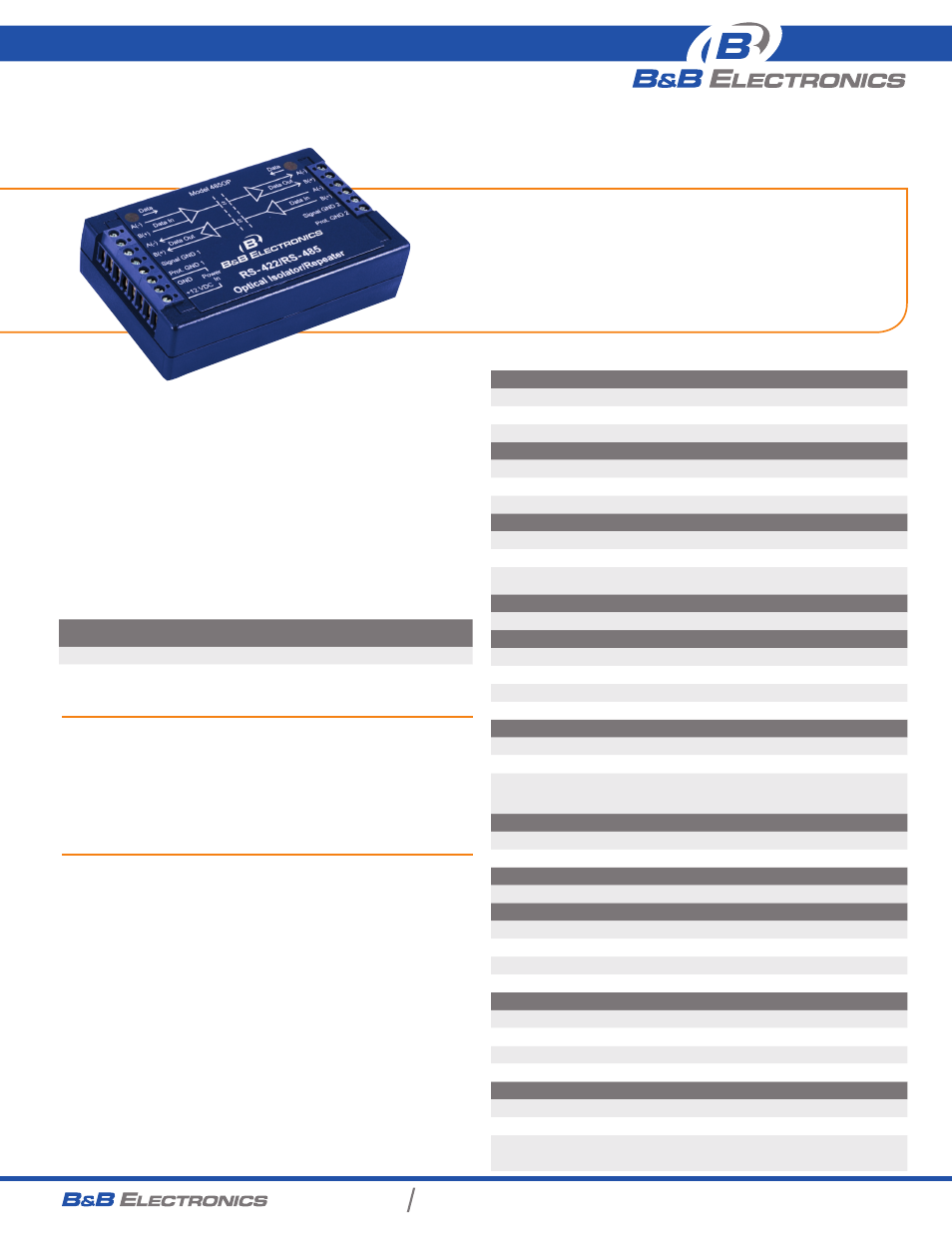

optically isolated rS-422/485 repeaters

485OP, 485OPB

Model 485OP is an optically isolated RS-422/485 signal repeater. In
addition to 2KV isolation on the data lines, it can be used to extend RS-
422/485 circuits an additional 1.2 km (4,000 ft.), thereby doubling the
range. An added benefit is the ability to add another 32 nodes to an RS-485
network and join 2 and 4 wire systems.

The compact design fits almost anywhere. Terminal blocks allow easy
installation. Wiring schematic on the label eliminates guesswork. A 12 VDC
power supply is required.

• 2 KV isolation
• Add up to 32 nodes to RS-485 network
• RS-422 2-wire, RS-485 2 or 4-wire
• Modbus
• UL Recognized

proDuCt FeatureS

aCCeSSorieS

PS1EU-1000 - 220-240 VAC to 12 VDC power supply, jack, Euro CEE7/7 plug
PS1UK-1000 - 220-240 VAC to 12 VDC power supply, jack, UK BS-1363 plug
485HESP - RS-485 surge protector
485PS4 - 12VDC @ 500 mA, wall power supply, tinned stripped leads

orDering inFormation

Model

nuMber

desCriPtion

Power suPPly

485OP

RS-422/485 Fiber Optic Isolated Repeater USA (included)

485OPB

RS-422/485 Fiber Optic Isolated Repeater

EU or UK

(sold separately)

SpeCiFiCationS

serial ProtoCols

RS-422 4-wire
RS-485 2-wire
RS-485 4-wire

isolation

Lines Protected

Data lines

Method

Optical

Rating

2000 V

surge suPPression

Lines Protected

Data lines

Method

TVS

Rating

6.5V bi-directional

600W peak power dissipation

industrial bus

Modbus ASCII/RTU

Power

Connector

Terminal block

Voltage

10 to 14 VDC

Power Consumption

1.0 W

Source

Included wall transformer or other 10 to 14 VDC source

Power suPPly

Input Voltage

120 VAC (USA); 220-240 VAC (EU, UK)

Output Voltage

12 VDC

Output Connection

USA: Stripped and tinned leads

EU: UK BS-1363 plug, jack

UK: Euro CEE7/7 plug, jack

terMinal bloCks

Wire Size

22 to 14 AWG

Torque

0.5 Nm

led indiCators

2 x DATA (RED)

Flashes when data received

enClosure

Material

Plastic

IP Rating

30

Dimensions

9.7 x 6.1 x 2.5 cm (3.8 x 2.4 x 1.0 in)

Mounting

In line

environMental

Operating Temperature

0 to 55

°C (32 to 131 °F)

Operating Humidity

0 to 95% non-condensing

MTBF

453103 hours

MTBF Calculation Method Parts Count Reliability Prediction

agenCy aPProvals

CE, FCC
cULus Recognized, File E222870
Declaration of Conformity available
for download at www.bb.elec.com
