B&B Electronics 9PMTT - Datasheet User Manual
Rs-232 tester
9PMTT0812 - pg. 1/1
www.bb-elec.com
International Office: 707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
P
R
O
D
U
C
T
I
N
F
O
R
M
A
T
IO
N
B
&B
ELEC
TR
ON
ICS

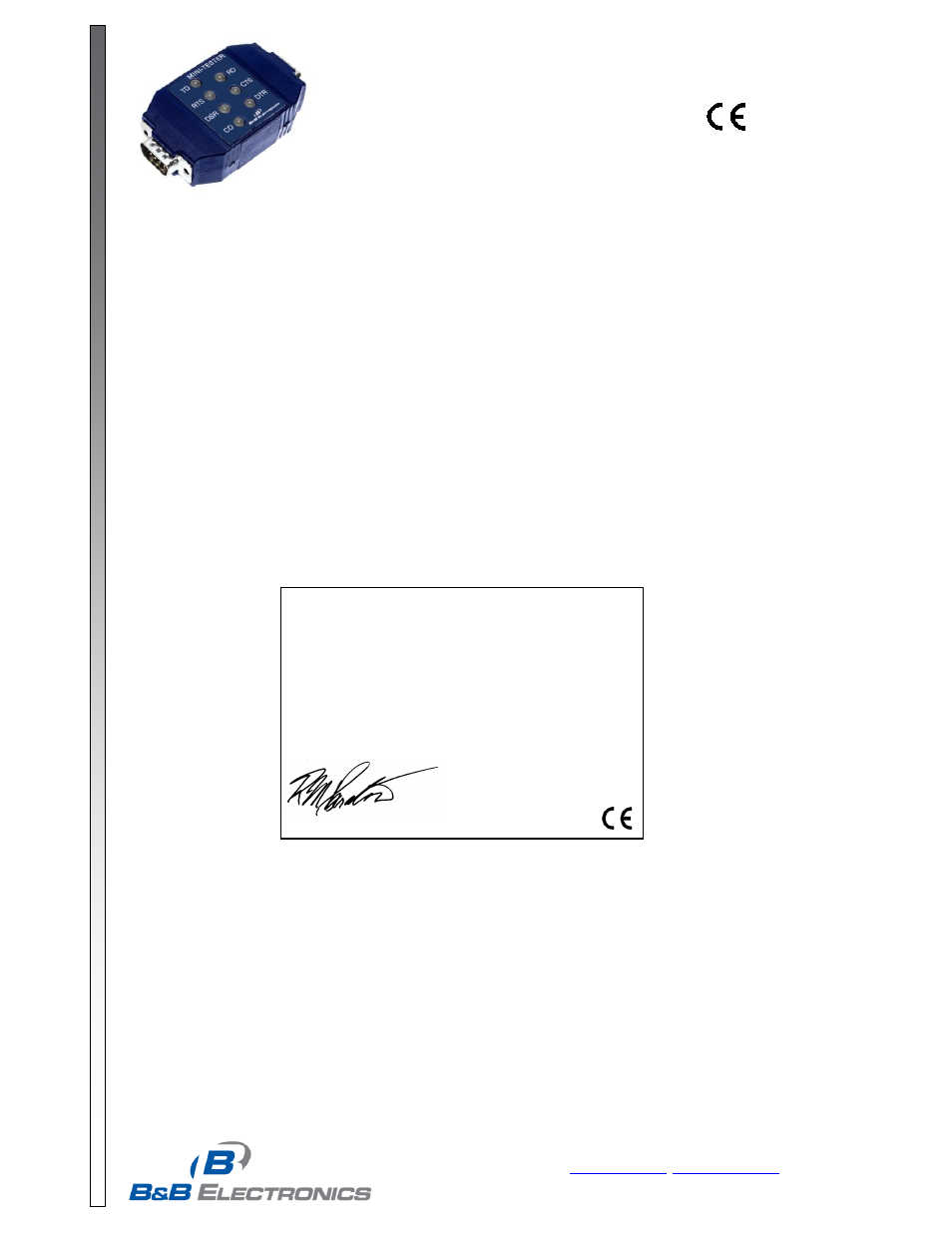

RS-232 Tester
Model 9PMTT
The RS-232 Tester is designed to be connected in series with any RS-232
interface. It is used to test the interface for failures and to help identify the equipment that has failed. The tester
may be left in the line permanently. Seven LED's indicate the status of the following lines:
Pin No.:
Signal:
Description:
3 ....................... TD .................... Transmit Data
2 ....................... RD .................... Receive Data
7 ....................... RTS .................. Request To Send
8 ....................... CTS .................. Clear To Send
6 ....................... DSR .................. Data Set Ready
1 ....................... CD .................... Carrier Detect
4 ....................... DTR .................. Data Terminal Ready
Two Color Testers (Clear LED's):
Negative Voltage
=
Mark
=
LED Red
Positive Voltage
=
Space
=
LED Green
DECLARATION OF CONFORMITY
Manufacturer’s Name:
B&B Electronics Manufacturing Company
Manufacturer’s Address:
P.O. Box 1040
707 Dayton Road
Ottawa, IL 61350 USA
Model Numbers:
9PMTT
Description:
RS-232 Tester
Type:
Light industrial ITE equipment
Application of Council Directive:
89/336/EEC
Standards:
EN 50082-1 (IEC 801-2, IEC 801-3, IEC 801-4)
EN 50081-1 (EN 55022, IEC 1000-4-2)
EN 61000 (-4-2, -4-3, -4-4, -4-6, -4-8)
ENV 50204
Robert M. Paratore, Director of Engineering
