International Office: 707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
snmp-manageable chassis
for “imcv” series modular
media converters
iMediaChassis/20
SpecificationS
Technical
SNMP-manageable with use of SNMP module
SNMP Write Lock switch protects the SNMP-configured settings
Built to NEBS-III specicfications
Last Gasp feature sends notification of AC line failures and power supply failures
Available with AC or DC power
Available with redundant power
Highest port density, 20 slots
Includes fan tachometers
MiB:
Port Type
Fan speeds
Traps
Fiber Type
Module Type
Link Status of Ports
Chassis temperature
Power Supply Type/Status
User-Definable Name/ID of Product and Each Port
Enable/Disable Ports
Enable/Disable FO/FX LinkLoss, TP/TX LinkLoss
Enable/Disable FiberAlert, Auto Negotiation
(dimensions in inches)
Mechanical
Dimensions
5.17”H x 19.0”W x 14”D
(13.13cm H x 48.26cm W x 35.56cm D)
Shipping Weight
30 lbs (13.60 kg)
ac input load: dual ac
100 to 240V AC±10%, 50-60Hz, 3.5/1.5A
ac input load: ac/dc
100 to 240V AC±10%, 50-60Hz, 2A
dc input load: dual dc
-48V DC, 5A Max (per module)
dc input load: ac/dc
-48V DC, 4.4A Max, per module
environMental
Operating Temperature:
+32° to +122° F (0° to +50° C)
Storage Temperature:
-4° to +176° F (-20° to +80° C): Dual AC, AC/DC
-4° to +140° F (-20° to +60° C): Dual DC
Operating Humidity
5% to 95% (non-condensing),
0 – 10,000 ft. altitude
regulatory approvals
Dual AC: FCC Class B
Dual DC: FCC Class B
AC/DC: FCC Class B
UL/cUL, CSA, CE

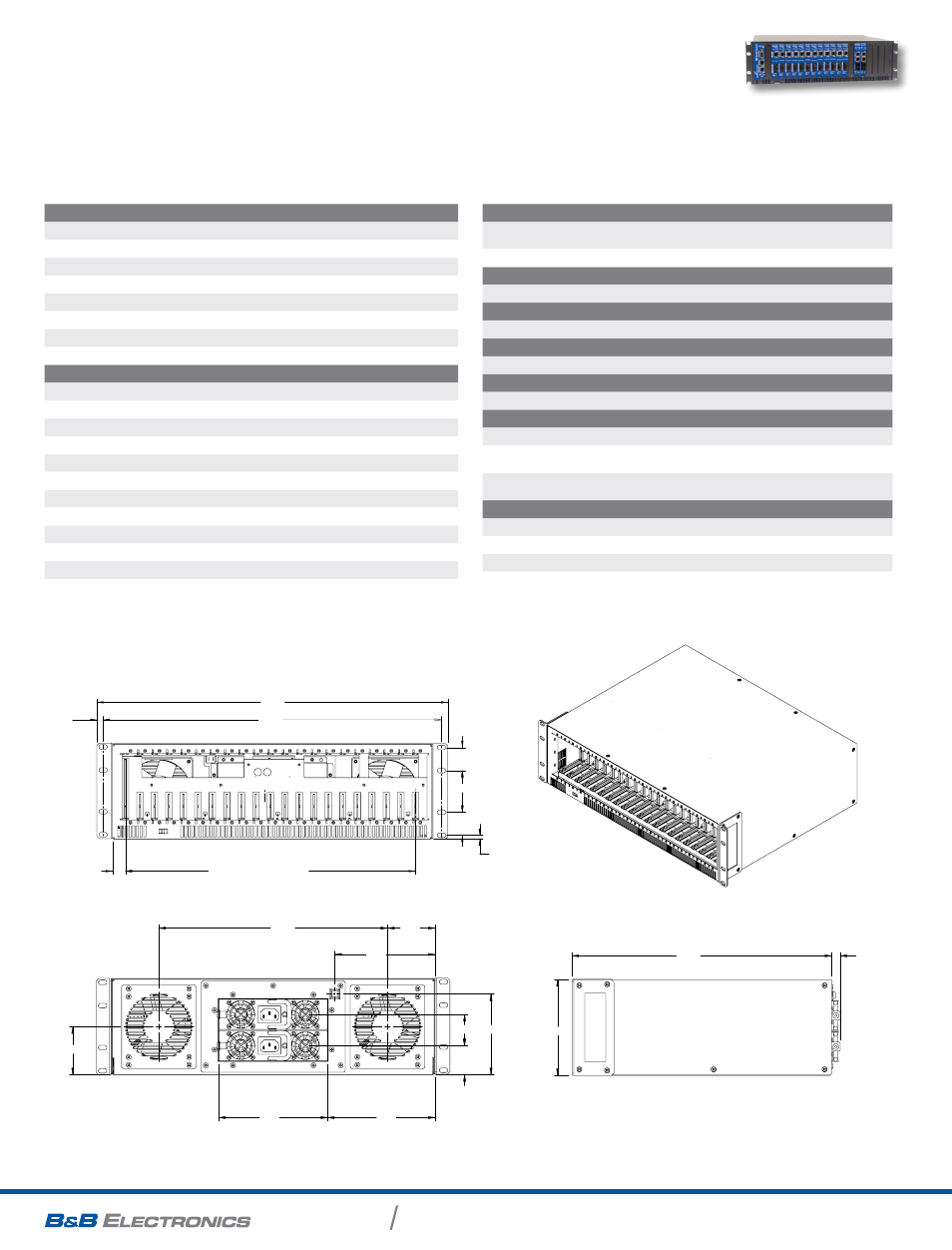

mEchanIcal dIagram
.21
1.25
2.25
1.25
19.00
20 EQ SP @ .785 = 15.700
.70
18.32
.34
2.55
5.85
5.78
12.29
1.56
1.68
2.57
5.39
4.33
5.17
14.00
.47
