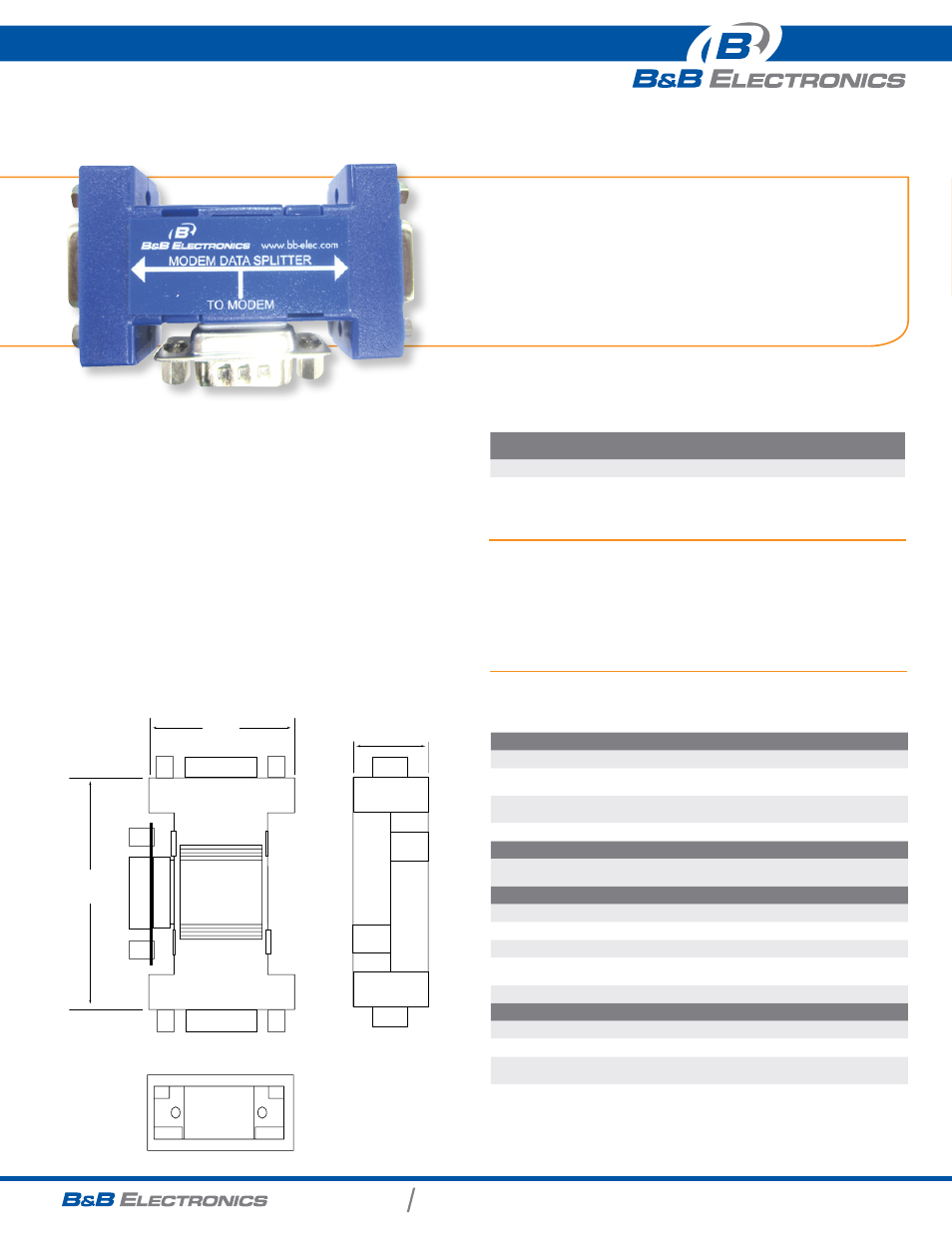

B&B Electronics 9PMDS - Datasheet - Manual

International Office: 707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
www.bb-elec.com
[email protected]
[email protected]
3.33 cm
1.31 in
1.74 cm
0.66 in
5.29 cm
2.08 in
SpecificationS
serial technology
RS-232
9PMDS - Connectors
Straight Through Ports: (2) DB9 Female
Monitoring Port: (1) DB9 Male
232MDS - Connectors Straight Through Ports: (2) DB25 Female
Monitoring Port: (1) DB25 Male
Installation In-line
Mechanical
Weight 9PMDS: 81.7 grams (0.18 lbs)
232MDS: 176.9 grams (0.39 lbs)
environMental
Operating Temperature 0 to +70 °C (+32 to +185 °F)
Storage Temperature
-40 to +85 °C (-40 to +185 °F)
Operating Humidity 0 to 95% Non-Condensing
MTBF
9PMDS: 2595488
232MDS: 1133093
MTBF Calc. Method Parts Count Reliability Prediction
approvals / certifications - 9pMDs, 232MDs
FCC Part 15, CISPR, EN 55022: 2010 + AC:2011 Class A Emissions
CE
EN 61000-6-1: 2007 Generic Standards for Residential, Commercial and Light-
Industrial Environments
Download complete Declaration of Conformity at www.bb.elec.com
Mechanical diagraM -
9pMdS
Serial Modem data Splitters
9PMDS, 232MDS
With B&B Electronics’ serial port splitters you gain reliability by capturing
data from one peripheral on redundant PCs. These serial RS-232 splitters
can improve a system’s economy by sharing multiple PCs on a single
peripheral,
Model 9pMDs connects two computers or terminals to one modem without
switching. The modem data splitter can combine two 9-pin DTE ports to
one 9-pin DCE port.
Model 232MDs can be connected so two computers or terminals can use
one modem without switching. This modem data splitter can combine two
25-pin DTE ports and connect them to a 25-pin DCE port.
• Computers & terminals use one modem without switching
• Connect two PCs to one peripheral
• Use with modems, scanners, scales, other serial devices
• Quick plug-and-play installation – no configuration required
• Port powered – no external power required
• May be left permanently installed
prodUct featUreS
acceSSorieS
9PAMF6 - DB9 Male To DB9 Female, 6 ft. (1.8 m)
232CAM - DB9 Female to DB25 Male, 6 ft. (1.8 m)
232CAMS - DB9 Female to DB25 Male, 6 in (15.2 cm)
232AMF5 - DB25 Male to DB25 Female, 6 ft. (1.8 m)
ordering inforMation
MoDel
nuMber pc ports
peripheral ports
9PMDS (2) DB9 Female (1) DB9 Male
232MDS (2) DB25 Female (1) DB25 Male
9PMDS, 232MDS_0514ds
