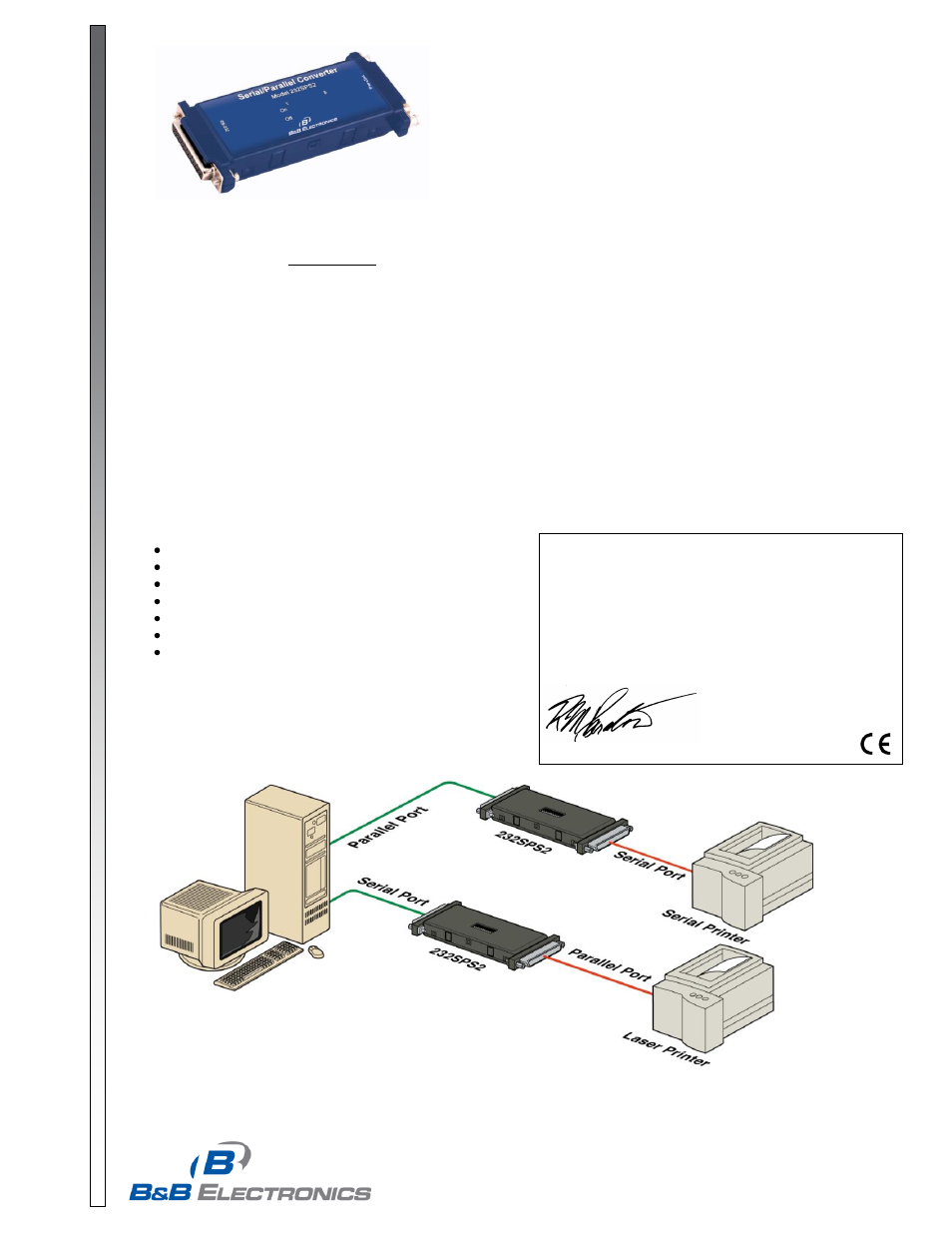

Model 232SPS2
Parallel to Serial or
Serial to Parallel Converter
The 232SPS2 allows uni-directional communication of data from your parallel port to a serial format. Or you can convert
data from your serial port to a parallel communication format. The 232SPS2 can be connected directly between your
computer and your printer without making any software modifications. A built-in 96-byte buffer prevents data loss.
The Serial Port is connected using a female DB-25 connector and supports X-ON/X-OFF control as well as hardware
handshaking. The 232SPS2 supports standard baud rates from 1200 to 115.2k with a variety of data formats. The
232SPS2 supports Acknowledge, Busy, and Strobe on the parallel port through a female DB-25 connector. An easy-to-
access 8-position dipswitch allows you to configure the 232SPS2 to match your system requirements.
The unit may be port powered using DTR and RTS on the serial port. If the 232SPS2 cannot be powered using the
handshake lines, it may be powered externally using +7 to +18 volts DC at 2 milliamps. Power supplies are available
through B&B. (Model 232PS is recommended)
NOTE: When using an external supply, the supply should be connected only to specifically labeled power
inputs (power jack, terminal block, etc.). Connecting an external power supply to the handshake lines may
damage the unit. Contact technical support for more information on connecting an external power supply to
the handshake lines.
Port Powered
Works with existing software
Easy installation
Baud rates up to 115.2K
96-byte buffer
Use as Serial-to-Parallel or Parallel-to-Serial Converter
Size: 4.3L x 1.7W x 0.8H in
DECLARATION OF CONFORMITY
Manufacturer’s Name: B&B Electronics Manufacturing Company
Manufacturer’s Address: P.O. Box 1040
707 Dayton Road
Ottawa, IL 61350 USA
Model Number: 232SPS2
Description: Parallel to Serial Converter
Type: Light industrial ITE equipment
Application of Council Directive: 89/336/EEC
Standards:
EN 55022
EN 61000-6-1
EN 61000 (-4-2, -4-3, -4-4, -4-5, -4-6, -4-8, -4-11)
Robert M. Paratore, Director of Engineering
