SpeCiFiCationS
serial teChnology
Connectors, line 5 position terminal blocks
Connectors, equipment 5 position terminal blocks
surge suPPression
Clamping Voltage
- stage 1
72 VDC, minimum
108 VDC, maximum
Series Resistance
- stage 2
2.7 Ohms
Clamping Voltage
- stage 3
6.45 VDC, minimum
7.14 VDC, maximum
Clamping Time Less than 5 x10 -9 seconds
Dimensions 3.55 x 7.88 x 10.53 cm (1.4 x 3.1 x 4.2 in)
Installation DIN rail mount
Weight 0.114 kg (4.02 oz)

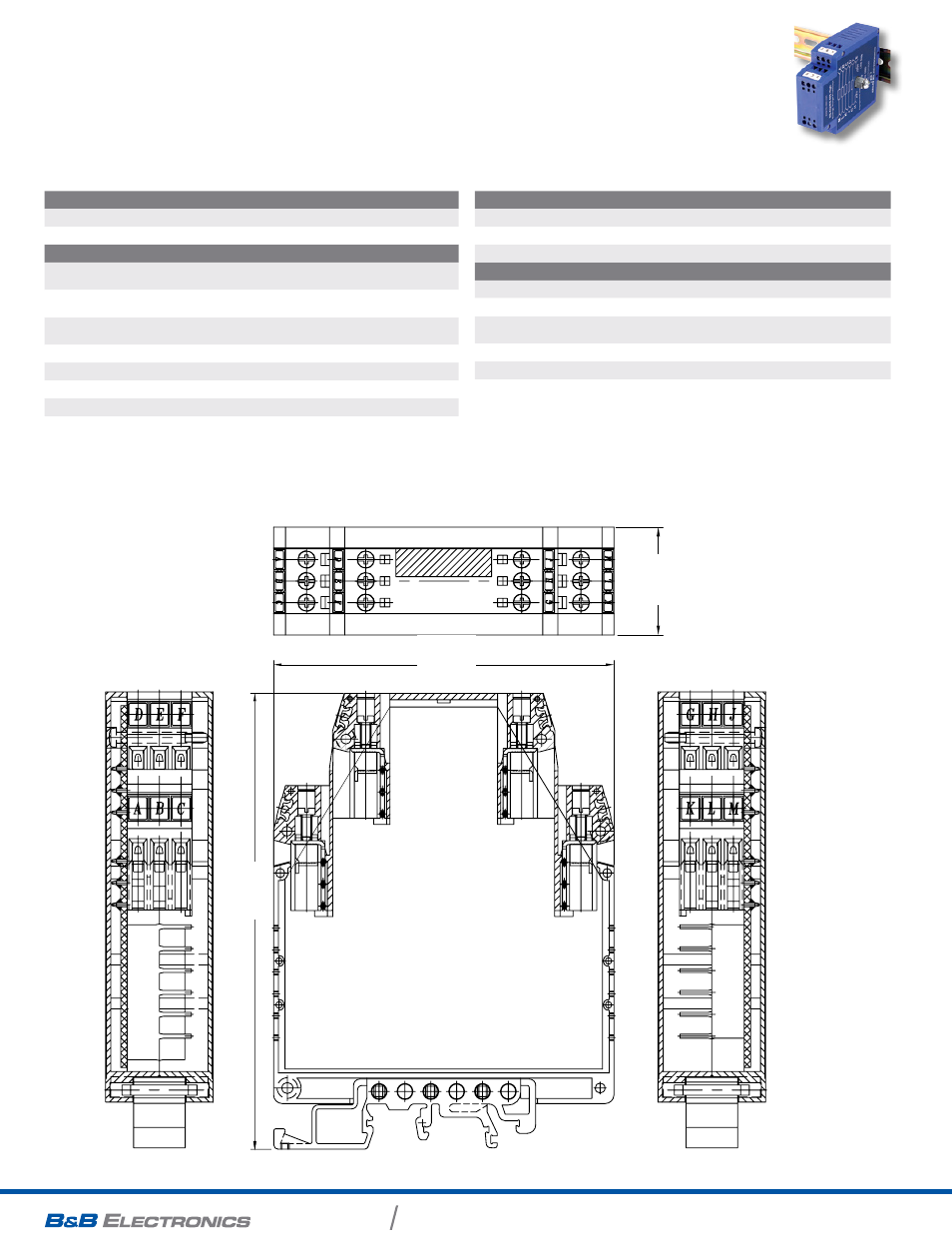

meChaniCaL Diagram
three-stage Surge protector
HESP4DR
environMental
Operating Temperature -40 to 80°C (-40 to 176°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Operating Humidity 0 to 95% Non-condensing
aPProvals / CertiFiCations - hesP4dr
FCC Part 15, CISPR, EN 55022: 2010 + AC:2011 Class A Emissions
CE, NEMA TS2
EN 61000-6-1: 2007 Generic Standards for Residential, Commercial and Light-
Industrial Environments
EN 61000-4-5: 2006 Electrical Surges
Download complete Declaration of Conformity at www.bb.elec.com
10.53 cm
4.2 in
7.88 cm
3.1 in
3.55 cm
1.4 in
