PRODUCT INFORMATION

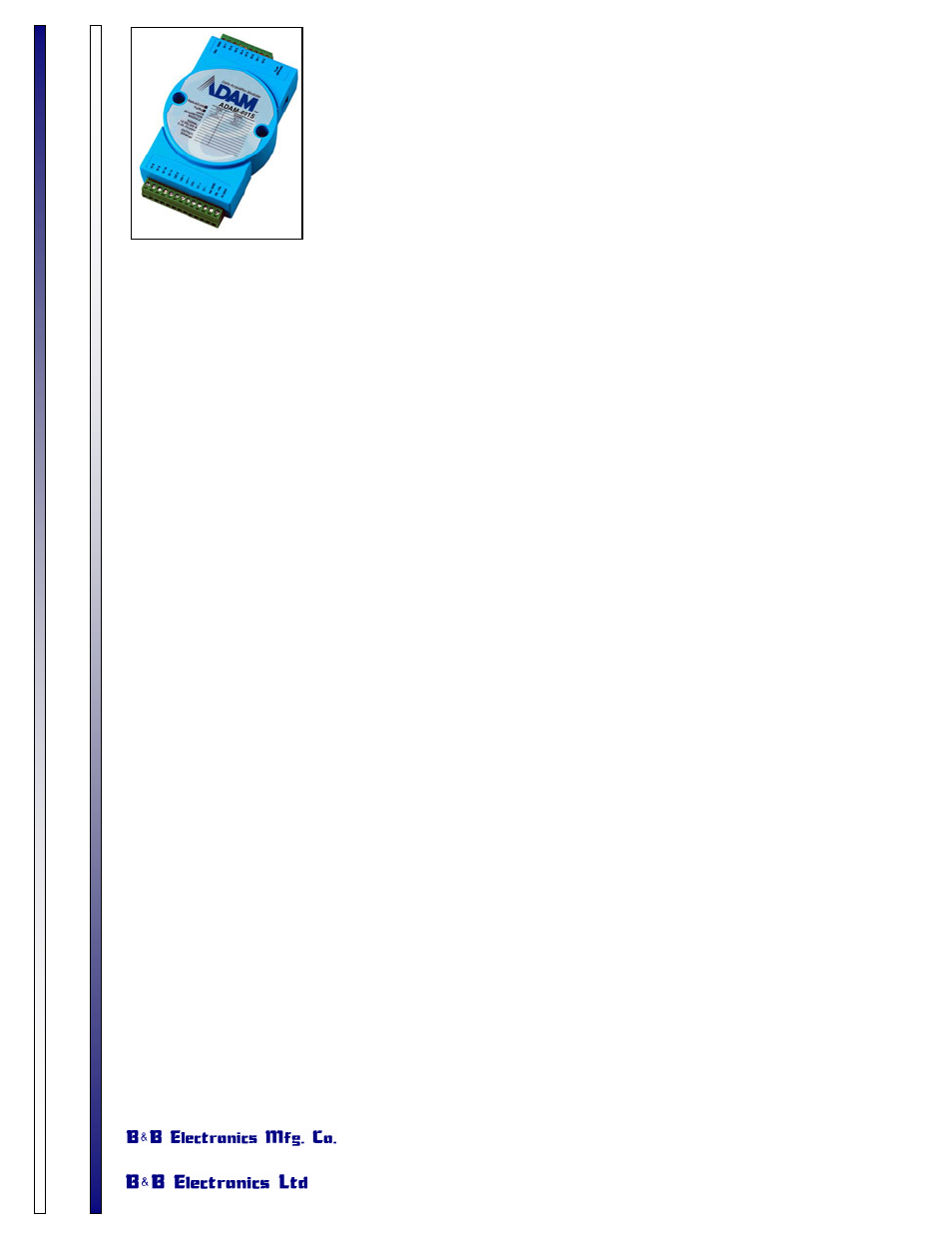

Model ADAM-6015
Multi-Monitor Up to 7 RTD Sensor Types
7-Channel RTD Input Module
Overview
The ADAM-6015 7-channel RTD input module accepts a wide range of RTD sensor types, including Pt100, Pt1000,
Ni50, Ni508, and Balco 500 series. Multi input ranges are allowed in one module, creating a cost-effective solution.
Most important, the ADAM-6015 supports open wiring diagnostic function which warns operators when the sensor wire
has been broken. It specifically aims at building and factory temperature monitoring applications.
Features
• I/O Type: 7 RTD
• 10/100 Based-T Ethernet
• Supports multi-channel/multi-range
• Pt 100/1000, Ni50/508, Balco 500
• Wiring burn-out detect function
Specifications
Channels: 7 differential
Effective Resolution: 16-bit
Input Type: Pt, Balco, and Ni RTD
RTD Type and Temperature Ranges:
Pt 100 RTD
Pt -50 to 150°C
Pt 0 to 100°C
PT 0 to 200°C
Pt 0 to 400°C
Pt -200 to 200°C
IEC RTD 100 Ohms = 0.00385
JIS RTD 100 Ohms = 0.00392
Pt 1000 RTD
Pt -40 to 160°C
Balco 500 RTD
-30 to 120°C
Ni 50 RTD
Ni -80 to 100°C
Ni 508 RTD
Ni 0 to 100°C
Isolation Voltage: 2000VDC
Sampling Rate: 10 samples / sec.
Input Impedance: 10KΩ
Input Connections: 2 or 3 wire
Accuracy: ± 0.05% or better
Zero Drift: ± 3 µV/°C
Span Drift: ± 25 ppm/°C
CMR @ 50/60 Hz: 150 dB
NMR @ 50/60 Hz: 100 dB
Built-in Watchdog Timer
Individual Wire Burn-out Detect
Power Requirements:
Unregulated 10 to 30 VDC (Protects against power reversal)
