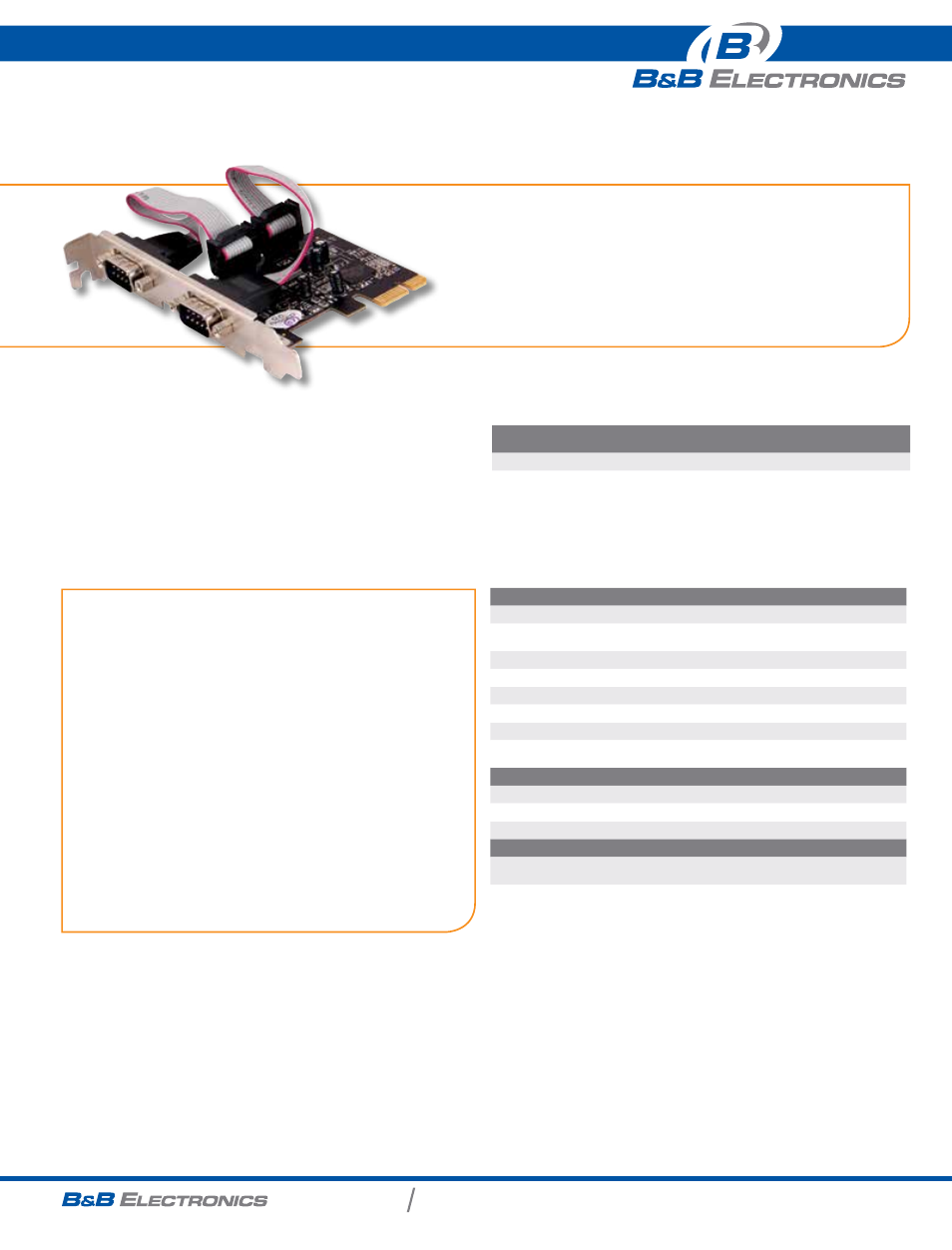

PCI Express Serial/Parallel Card
DS-PCIE-100
This PCIe Express serial/parallel card supports serial data transfer rates up
to 115.2 kbps plus hot swapping, plug-n-play connection availability. It has
many advantages over traditional PCI cards, including a point-to-point link
dedicated to each device instead of the PCI’s shared bus; lower latency in
server architectures due to a more direct connection to the chip set; small
connectors with easier implementation for system designers and advanced
features via isochronous channels for guaranteed bandwidth delivery,
advanced power management and hot swap support.
• Supports serial data transfer rates to 115.2 kbps
• Data bus transfer rate of up to 2.5 Gbps under one-lane operation
• Configuration options: serial, parallel with serial
• Advanced architecture making use of point-to-point technologies
• Compliant with PCI Express Base Specification 1.0a
PRODUCT FEATURES
SPECIFICATIOnS
Serial technology
Compliance Compliant with PCI Express Base Specification 1.0a
UART/FIFO
Built-in 16C550 compatible UART with 16 byte transmit-
receive FIFO
Serial Data Rate Up to 115.2 kbps
Interface RS-232
Machine Compatibility Full height systems
Bus
PCI-Express X1
O/S Support Windows 2000/XP/Server 2003/Vista/Win7
DS-PCIE-100
Ports/Connectors
2 DB-9 serial on orb bracket, requires 1 PC bracket slot
environmental
Operating Temperature 0 to +70 °C
Storage Temperature
-50° to +80°C
Operating Humidity 10 to 90% Non-condensing
approvalS / certificationS
Agency Approvals
FCC, CE
Compliant with PCI Express Base Specification 1.0a
ORDERIng InFORmATIOn
model
number
deScription
DS-PCIE-100 2-port Serial RS-232 to DB-9 (requires 1 PC bracket slot)
about pci express card technology
These PCI Express Serial Cards are the breaking edge standard in PCI card
technology for server and client system I/O interconnects. In addition to
bus technology upgrades, such as faster speeds and deeper FIFO rates, PCI
Express card advantages include a point-to-point link to each device (instead
of PCI’s shared bus); lower latency in server architectures due to a more direct
connection to the chip set; and small connectors with easier implementation
for system designers.
advanced features - As client system boards migrate from PCI connectors
to PCI Express connectors, Quatech PCI Express cards maximise advanced
features such as advanced power management, support for real-time data
traffic, hot plug and hot swappability, and data integrity and error handling.
pci express vs. universal pci - Although PCI and UPCI Cards can be used in
a variety of platforms, PCI Express reflects an industry trend to replace legacy
shared parallel buses with high-speed serial buses. They both have the same
dimensions and rear brackets. But, the difference is in the I/O connectors: PCI
Express has 36 pins versus the 120 pins on a standard PCI connector.
