10/100base-t multi-port switch module
iMcV-Switch
10/100base-t multi-port
switch module
iMcV-Switch
• Multi-port 10/100Base-T
• Available in multi-mode, single-mode, single-strand fiber and SFPs
• Supports up to 1000 MAC address learning
• Transparent to VLAN tags
• Grants priority for all frames with PRI>4 or DSCP>32
• Supports Auto Cross and Auto Negotiation on all copper ports
• Supports Flow Control
• Features Collision Detection
product FEaturEs
The iMcV-Switch is a multi-port, 10/100 Ethernet module that allows
the user to increase port density and the service area of Ethernet
networks. The store and forward switch function allows the end user to
extend Ethernet service to locations for a total of 100 meters from the
Ethernet source. All RJ-45 ports Auto Negotiate 10/100Base-T, half/full
duplex, and automatically configure for MDI or MDIX operation. Each
port allows a maximum frame size of up to 1916 bytes and supports
Flow Control and priority queuing.

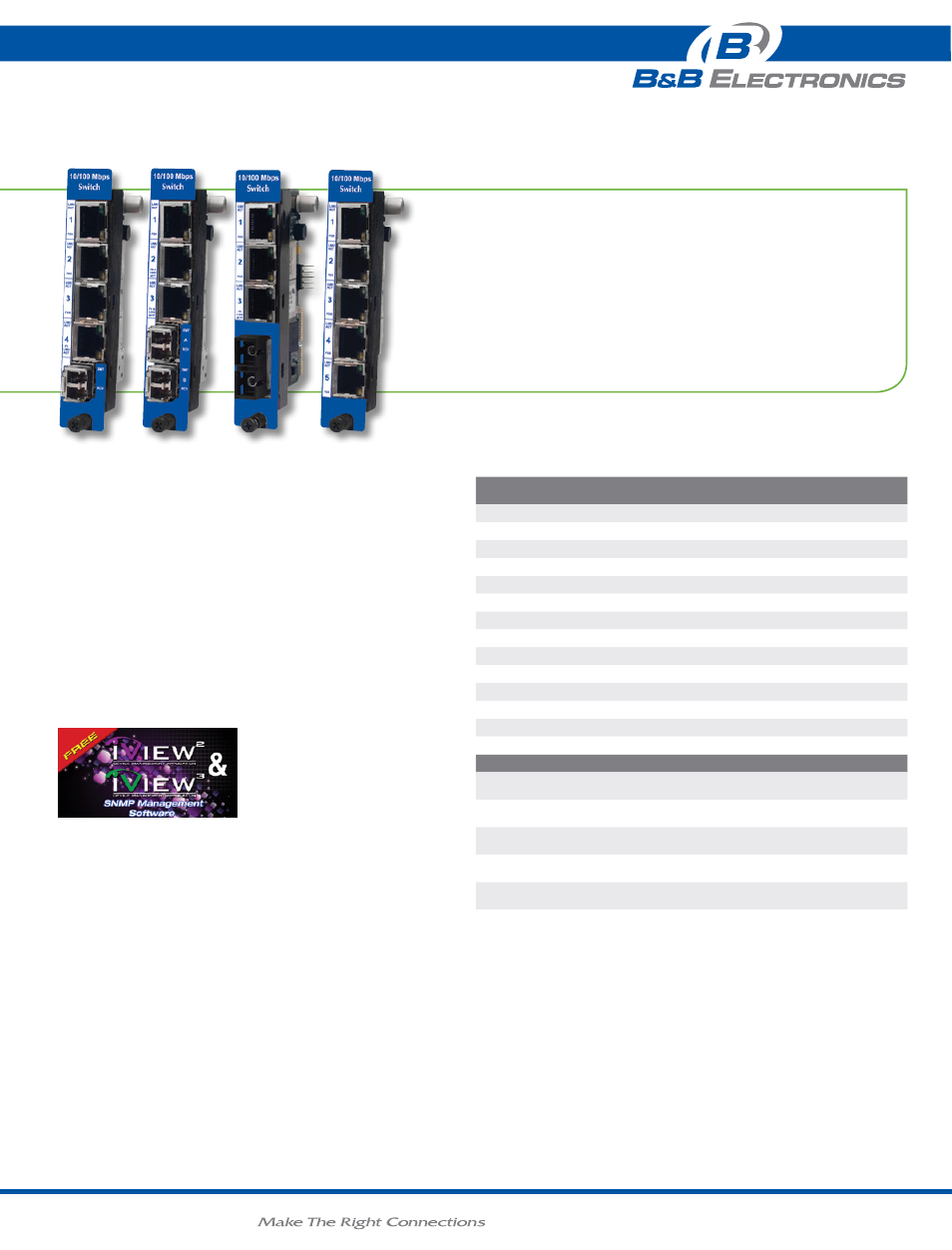

The iMcV-Switch is available in four different models, some offering a
configuration of copper and fiber ports, copper and fiber SFP ports and
an all copper port version.
* SFPs Sold Separately
ordErIng InFormatIon
Model
nuMBer
FiBer
FiBer
Ports range
ethernet
Ports
ethernet
ConneCtor
iMcv-switch *
852-14440
100 m 5 RJ45
852-14441 SFP 1 Various 4 RJ45
852-14442 SFP 2 Various 3 RJ45
852-14443 MM850-ST 1 2 km 3 RJ45
852-14444 MM850-SC 1 2 km 3 RJ45
852-14445 MM1300-ST 1 5 km 3 RJ45
852-14446 MM1300-SC 1 5 km 3 RJ45
852-14449 SM1310/PLUS-ST 1 40 km 3 RJ45
852-14450 SM1310/PLUS-SC 1 40 km 3 RJ45
852-14451 SM1310/LONG-ST 1 80 km 3 RJ45
852-14452 SM1310/LONG-SC 1 80 km 3 RJ45
852-14453 SM1550/LONG-SC 1 80 km 3 RJ45
852-14454 SM1550/XLONG-SC 1 100 km 3 RJ45
single strand FiBer **
852-14470
SSFX-SM1310-SC
(1310xmt/1550rcv)
1 20 km 3 RJ45
852-14471
SSFX-SM1550-SC
(1550xmt/1310rcv)
1 20 km 3 RJ45
852-14472
SSFX-SM1310/PLUS-SC
(1310xmt/1550rcv)
1 40 km 3 RJ45
852-14473
SSFX-SM1550/PLUS-SC
(1550xmt/1310rcv)
1 40 km 3 RJ45
852-14474
SSFX-SM1310/LONG-SC
(1310xmt/1550rcv)
1 60 km 3 RJ45
852-14475
SSFX-SM1550/LONG-SC
(1550xmt/1310rcv)
1 60 km 3 RJ45
* These products have single-strand fiber technology. Deploy in pairs or connect another compatible
B&B IMC LLC single-strand fiber product.
iView: Windows 2000/XP/Vista/Win7
iMcV-Switch_3713ds
