industrial Serial/Fiber
optic Converters
FOSTCDRI, FOSTCDRI-INV
SpeCiFiCationS
serial teChnology
Data Rate 9.6 to 115.2 kbps
rs-232
Connector Removable terminal block
Signals TD, RD, GND
rs-422/485
Connector 5-position, removable terminal block
RS-485, 2-wire Data A(-), Data B(+), GND
RS-422/485, 4-wire TDA(-), TDB(+), RDA(-), RDB(+), GND
Bias Built-in, switchable, 1.2KΩ
Termination Built-in, switchable, 120Ω
isolation
Rating 2KV RMS, 1 minute
Surge Protection 600 W peak power dissipation
Clamping Time < 1 pico-second
Lines Protected 2-way (input, output lines)
Method Optical
Fiber oPtiC teChnology
Type / Wavelength Multi-mode / 820 nm
Output Power -16dBm min, -12dBm typical, -9dBm maximum
Receive Sensitivity -24dBm min, -25.4dBm maximum
Cable 62.5/125 micro-meter
Connector ST
Data Rate 9.6 to 115.2 kbps
Maximum Distance 4 km (2.5 mi)
Idle State, FOSTCDRI Transmitter light ON
Idle State, FOSTCDRI-INV Transmitter light OFF
industrial bus
Modbus ASCII/RTU
Power
Source External
Input Voltage 10 to 48 VDC (56 VDC maximum)
Consumption 0.5 W (typical), 1.3W (with termination)
Connector 2-position, removable terminal block, 24 to 14 AWG
terMinal bloCks
Wire Size Accepted 28 to 12 AWG
Pitch 5.08 mm
Insulation Resistance ≥ 500 MΩ @ 500 VDC
Maximum Torque 5 Kg / cm
led indiCators
Power Red LED
FO Receive Red LED
FO Transmit Red LED
MeChaniCal
Dimensions 12.3 x 11.3 x 3.2 cm (4.9 x 4.5 x 1.3 in)
Enclosure IP 20 plastic, 35 mm DIN mount
Weight 199.6 g (0.44 lbs)
environMental
Operating Temperature -40 to +80 °C (-40 to +176 °F)
Storage Temperature -40 to +85 °C (-40 to +185 °F)
Operating Humidity 0 to 95% non-condensing
MTBF 138904 hours
MTBF Calculation Method Parts Count Reliability Prediction
aPProvals / CertiFiCations - FostCdri
UL Class 1 Division 2, Groups A, B, C, D
File Number: E222870 (HAZLOC E245458)
FCC Part 15, CISPR, EN 55022: 2010 + AC:2011 Class B Emissions
CE
EN 61000-6-1: 2007 Generic Standards for Residential, Commercial and Light-
Industrial Environments
EN 61000-4-2: 2009 Electro-Static Discharge (ESD)
EN 61000-4-3: 2006 +A1 +A2 +IS1 Radiated Field Immunity (RFI)
EN 61000-4-4: 2012 Electrical Fast Transients-Burst Immunity (EFT)
EN 61000-4-6: 2009 Conducted Immunity
Download complete Declaration of Conformity at www.bb.elec.com
aPProvals / CertiFiCations - FostCdri-inv
UL 508, File Number: E222870
FCC Part 15, CISPR, EN 55022: 2010 + AC:2011 Class A Emissions
CE

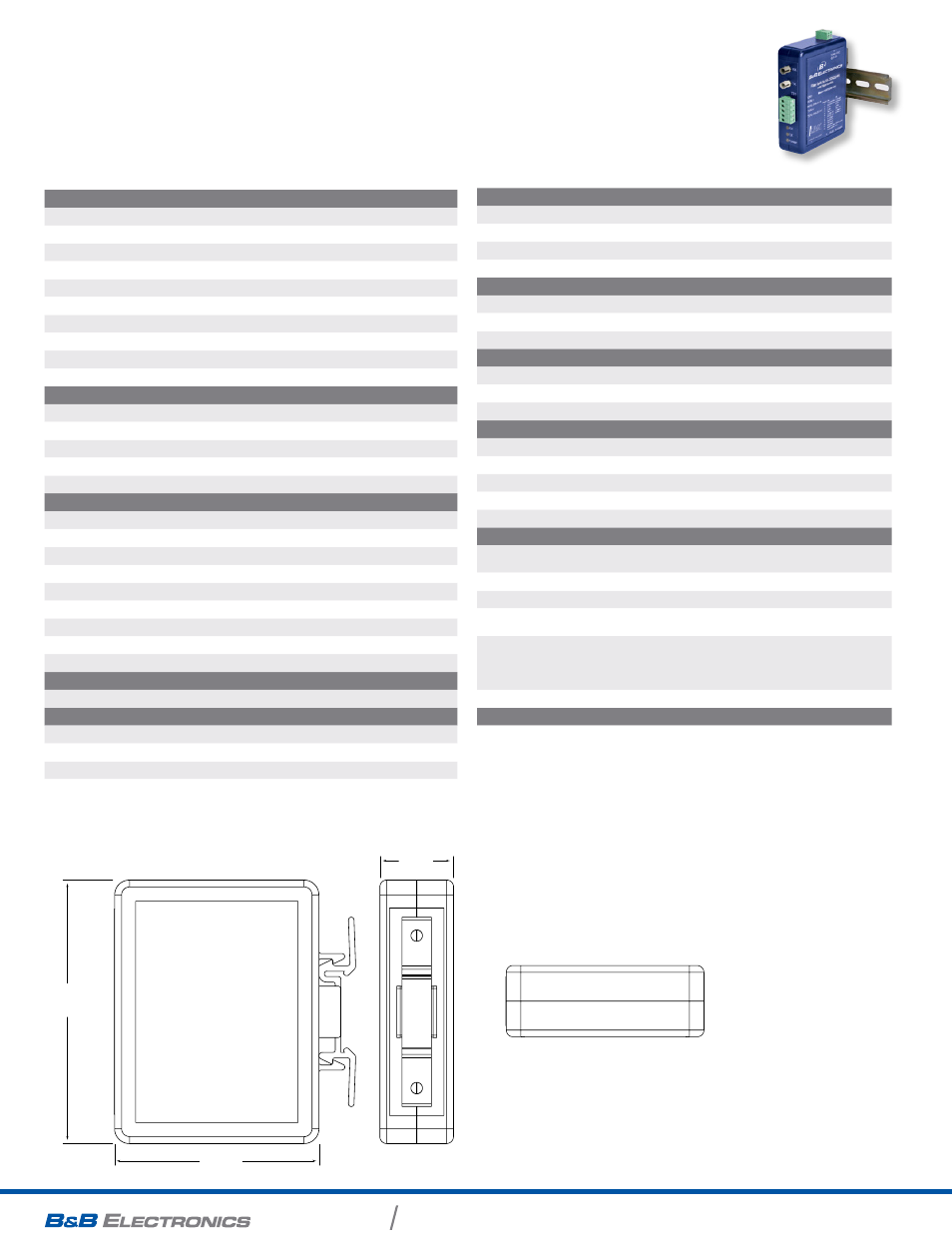

meChaniCaL Diagram
12.3 cm
4.9 in
11.3 cm
4.5 in
3.2 cm
1.3 in
12.3 cm
4.9 in
11.3 cm
4.5 in
3.2 cm
1.3 in
