Four Port usB over
ethernet server
UE204
sPeCiFiCations
uSB & ethernet teChnology
USB Compatibility 1.1 and 2.0
USB Speed 1.5, 12, and 480 Mbps
USB Connector 4 x USB Type A Female
Ethernet 10/100/1000 Base T
Ethernet Connector RJ-45
IP Address Default = DHCP
169.254.10.10 if DHCP Not Available
User Configurable
Operating System
Window 8, 32 & 64 bit
Windows 7, 32 & 64 bit
Windows 2008 Server, 32 & 64 bit
Windows Vista, 32 & 64 bit
Windows Server 2003 32 and 64 bit
Windows XP 32 and 64 bit
Configuration Software Included with User Manual on CD
Power
Source External PSU
Power Connector 5.5 mm Barrel Plug, Center Positive
Input Voltage 5 VDC
Power Consumption 2.5 A
USB Downstream Power 500 mA per Port
PSU Input 100 to 240 VAC, 50 / 60 Hz, 0.8 A
AC Input Blades US, EU, UK Included
PSU Output 5 VDC, 3A
indiCatorS
Power / Active Green LED – ON when power applied
P1 – P4 Green LED – ON when USB Port connected
MeChaniCal
Dimensions 10.0 x 6.0 x 28.9 cm (3.9 x 2.4 x 1.1 in)
Enclosure Plastic with panel mount slots on back
Weight UE204 – 0.21 lbs, 95.3 g
PSU – 0.38 lbs, 172.4 g
MTBF UE204 63,124 Hours
MTBF Calc. Method MIL 217F Parts Count Reliability
enVironMental
Operating Temperature 0° to 60°C
Storage Temperature 0° to 70°C
Operating Humidity 0 to 95% Non-condensing
aPProValS / CertiFiCationS
Emissions FCC Class B, CISPR Class B (EN55022)
EN61000-4-2:2008 (ESD) +/-8kV Contact, +/-15kV Air
EN61000-4-3:2006 (RI) 10V/m, 80-1000MHz; 3V/m, 1.3 to 2.7 GHz
EN61000-4-4:2004 (EFT Burst) ±0.5V Power, ±1kV Data
EN61000-4-5:2005 (Surge) ±0.5kV DC, 2kV AC ±1kV Data
EN61000-4-6:2005 (CI) 10Vrms all ports
EN61000-4-8:2001 (Magnetic) 30 A/m

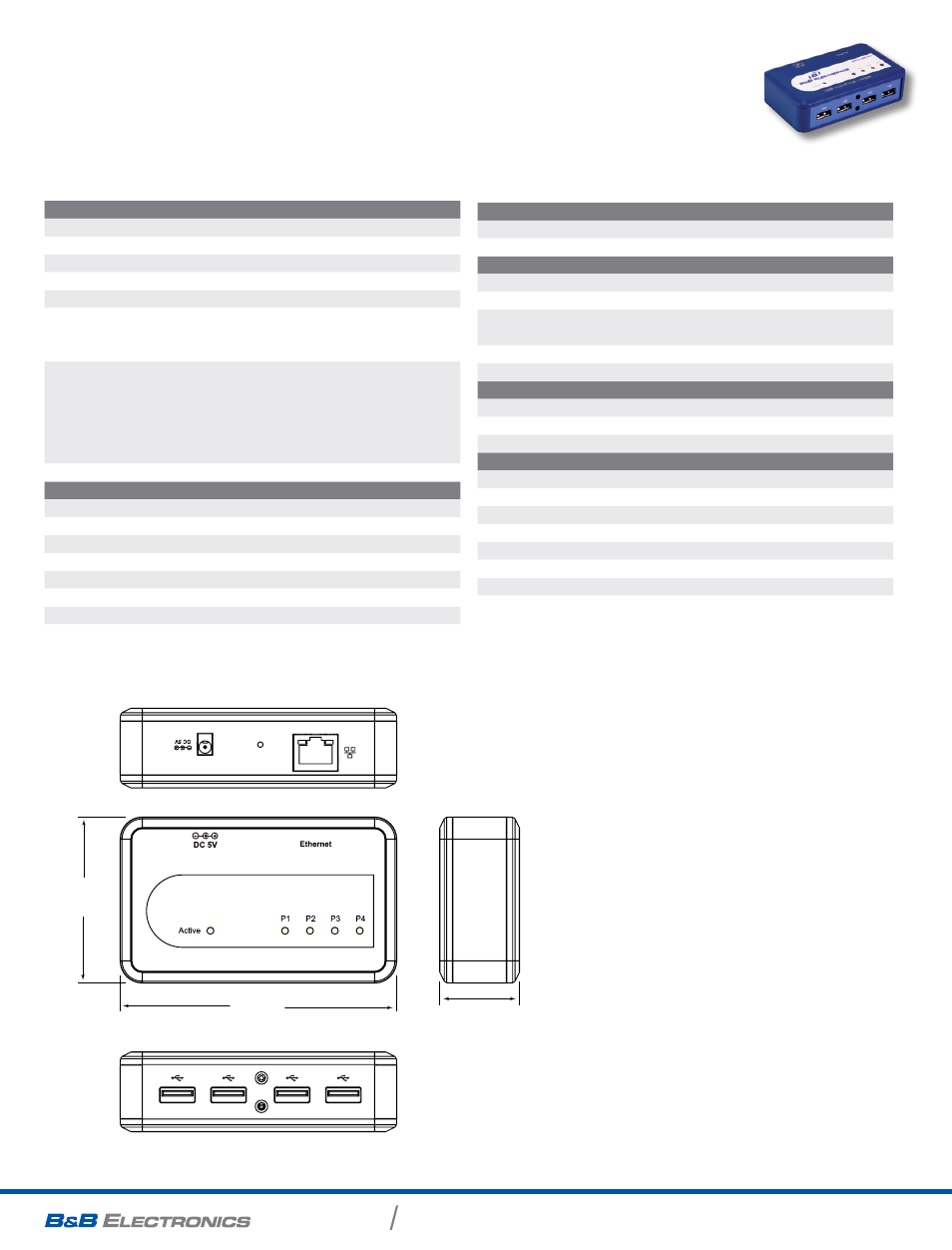

meCHaniCal diagram
6.0 cm
2.36 in
10.0 cm
3.94 in 2.89 cm
1.14 in
