Quick start guide
EIR405 Series-1012qsg

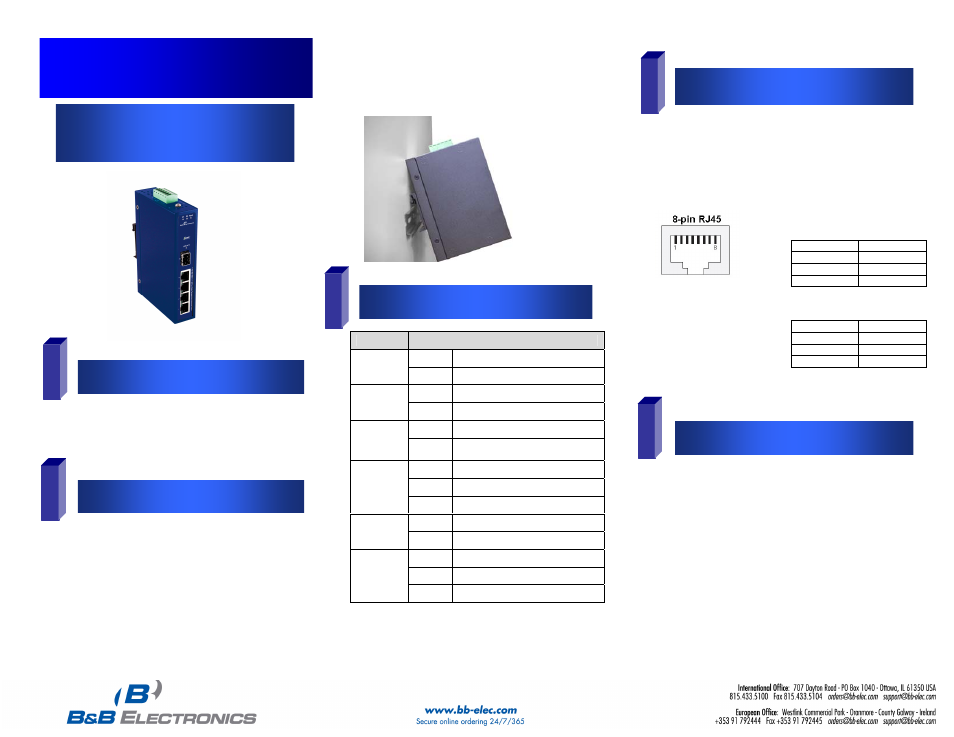

Quick Start Guide
Elinx Gigabit Ethernet Switch
EIR405 Series
Items Included
1
2
Hardware Installation
3
LED Chart
4
Ports
5
Installation Complete
o
Ethernet
Switch
o
CD with Support Manual
o
This Quick Start Guide
o
Panel Mount Bracket
1.
Select a mounting location and install the
switch onto a piece of DIN rail or use the
included panel mount brackets for wall or
panel mounting
2.
Connect power to the switch
12 to 48 VDC
If redundancy is desired be sure to
connect two separate power supplies by
using the two DC inputs on the terminal
blocks
If only one power input is used the Fault
LED will light (this is normal)
RJ-45 ports: The RJ-45 ports auto-sense for 10, 100 or 1000
Mbps devices connections. The auto MDI/MDIX feature
allows connections to switches, workstation and other
equipment without changing straight through or crossover
cabling. The charts below show the cable pin assignments
for straight through and crossover cables.
LED
Description
Green
Power input 1 is active
P1
Off
Power input 1 is inactive
Green
Power input 2 is active
P2
Off
Power input 2 is inactive
Red
Power input 1 or 2 is inactive
Fault
Off
Power inputs 1 and 2 are both active,
or no power is present
Green
Connected to network
Flashing
Networking is active
Copper Port
(Upper LED)
Off
Not connected to network
Green
Connected to network at 1000Mbps
Copper Port
(Lower LED)
Off
Not connected to 1000Mbps network
Green
Connected to network
Flashing
Networking is active
SFP Port
LNK/ACT
(if equipped)
Off
Not connected to network
MDI Cable Pinout
Pin Signal
1 Tx+
2 Tx-
3 Rx+
6 Rx-
MDI-X Cable Pinout
Pin Signal
1 Rx+
2 Rx-
3 Tx+
6 Tx-
1. Auto MDI/MDI-x is
supported. A straight
through or cross-over
cable may be used.
2. 10/100/1000 auto
negotiation and full/half-
duplex are supported.
1. When the network cables are attached and power
is applied, installation is complete.
2. The switch will automatically discover network
devices, populate its MAC address table, and
pass traffic to the appropriate ports.
