15 Chapter2

2.4.2 DIN-rail

Mounting

You can also mount EKI-2541M/2541S on a standard DIN-rail by below steps.

The DIN-rail kit is screwed on the industrial switch when out of factory. If the DIN-rail kit
is not screwed on the industrial switch, please screw the DIN-rail kit on the switch first.

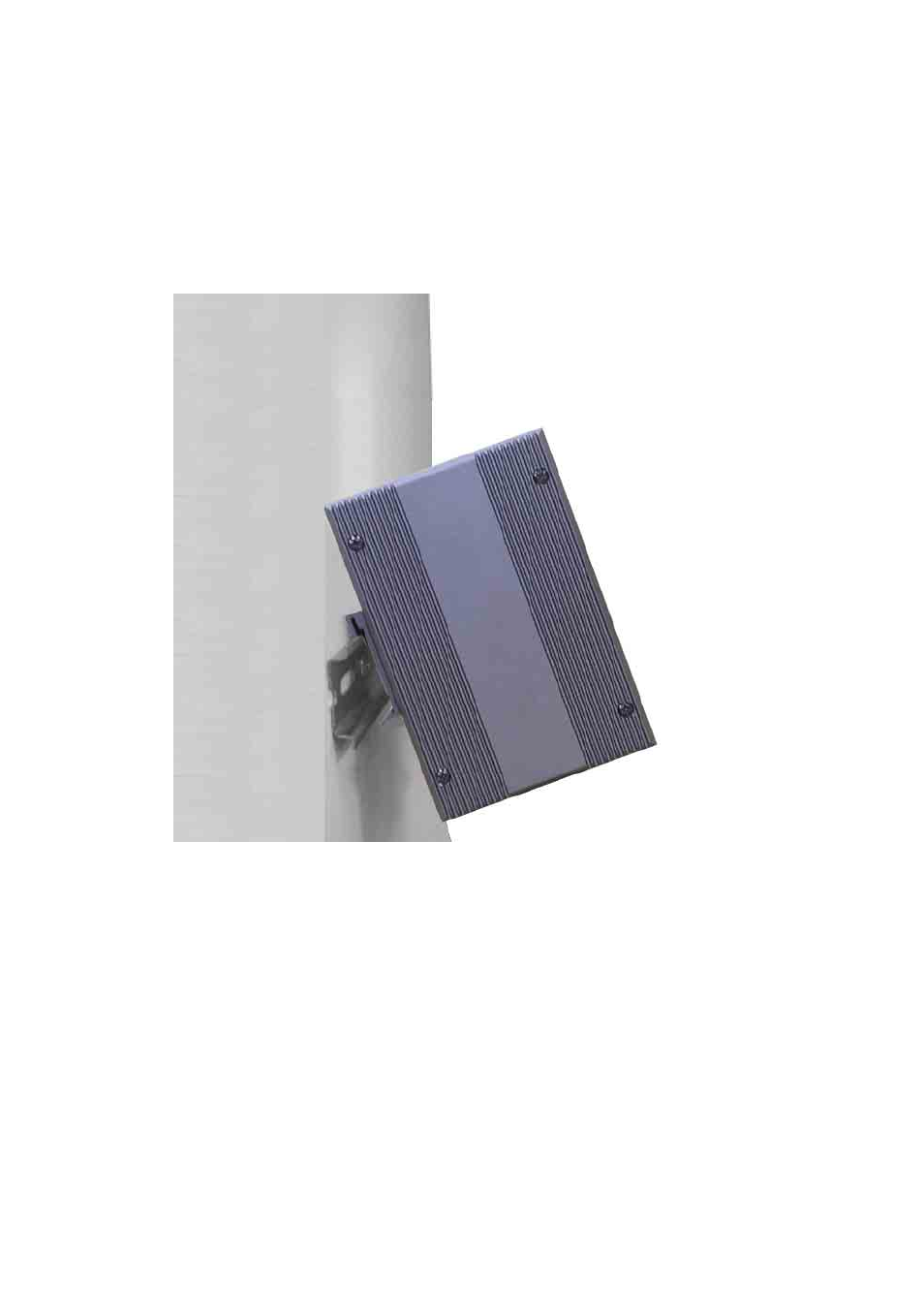

First, hang the EKI-2541M/2541S to the DIN-rail with angle of inclination. See figure
2.6.

Figure 2.6: Installation to DIN-rail Step 1
