Hardware Installation
9 Manual Document Number EIR-SFP-T-0912m
www.bb-elec.com
www.bb-europe.com
To connect the transceiver and fiber cable, follow the steps below. (Note: SFP
modules typically terminate with an LC fiber connector)

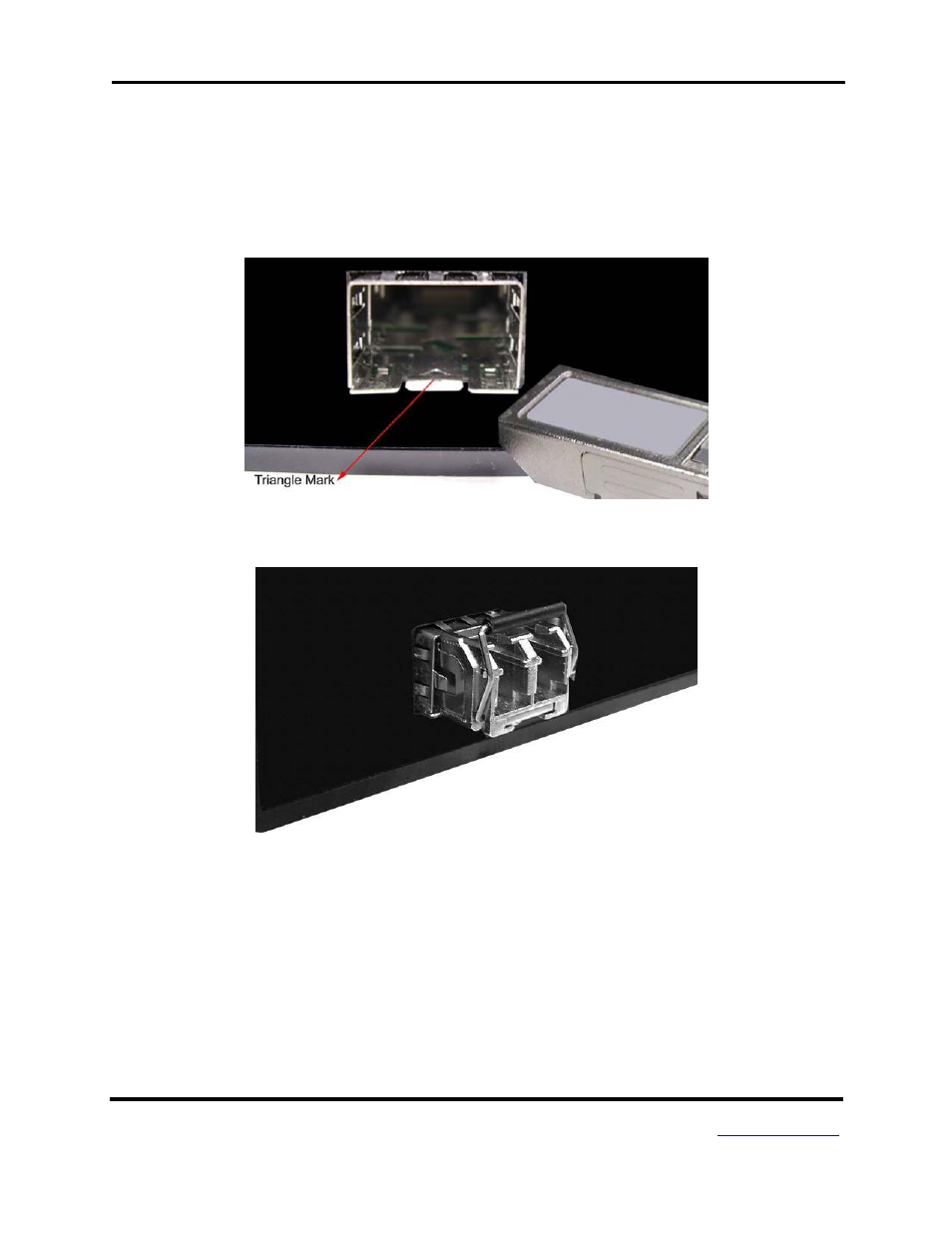

First, insert the SFP transceiver into the SFP module cage. Notice that the triangle mark
is at the bottom of the module.
Transceiver Inserted
