Modular Protocol-Independent, 10 Gbps SFP+
Fiber Mode Converter

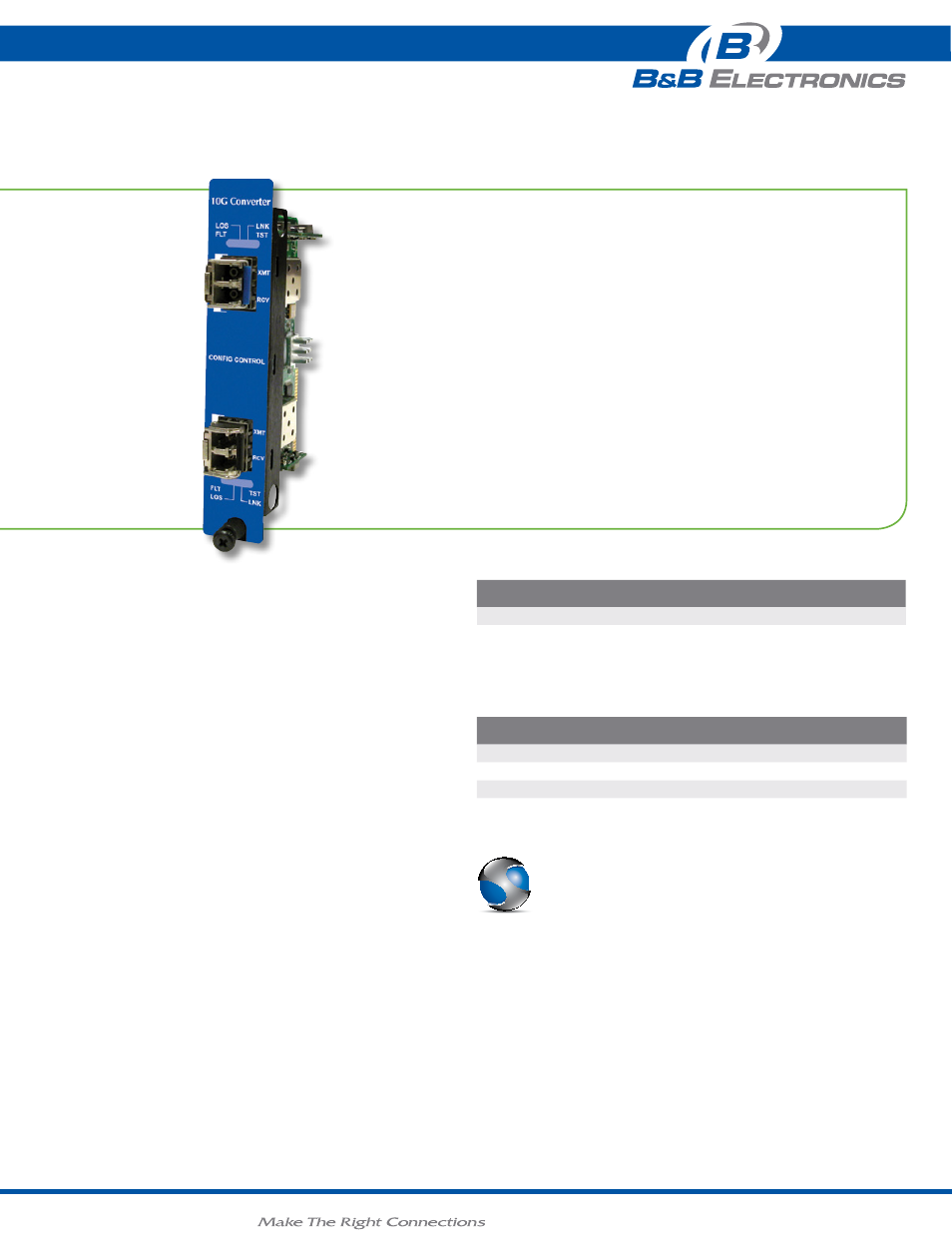

iMcV-10G Converter SFP+
• Interchangeable SFP+ modules allow for multiple fiber mode/type
conversion options (single mode, multi-mode)
• DDMI enabled SFP+s are supported through SNMP when installed in a
compatible managed chassis
• Supports 3R’s signal regeneration - Re-amplify, Re-shape, Re-time
• Supports a wide range of SFP+ Modules with transmission speeds from
9.9 Gbps to 11.3 Gbps
• Modules are hot-swappable; no need to power-down chassis when
upgrading or trouble-shooting a single module
• User selectable FX LinkLoss enables the operator to identify a cable
fault failure when the unit is not installed in a managed chassis
• Supports Config Control, a feature that retains the latest configuration
of a module regardless of how the initial configuration was setup,
whether by DIP Switch or SNMP Management Module
• Supports Internal Test Head functionality
PRODUCT FEATURES
The iMcV-10G-Converter SFP+ is a single-wide SNMP manageable
module that allows network operators to convert an array of fiber
types within a network. It installs in the modular, SNMP-manageable
iMediaChassis series and in the unmanaged MediaChassis series.
The iMcV-10G-Converter SFP+ uses 10 Gbps SFP+ modules which
are capable of moving large amounts of data over long distances for
applications such as ISPs, Data Storage, Fiber Channel, and others.
The hot-swappable nature of SFP+ and the numerous fiber protocols
and types that are available allow for easy configuration and future
upgrading as network demands evolve.
The iMcV-10G-Converter SFP+ is protocol-independent with dual SFP+
ports which can provide a single conversion between single-mode and
multi-mode fiber, single-mode to single-mode fiber or multi-mode to
single-strand single-mode fiber. The iMcV-10G-Converter SFP+ module
supports a variety of user-configurable features such as Loss Carry
Forward (LCF) and Internal Test Head feature.
Easily configure and manage converters with the GUI-based iView². As
an SNMP management application, iView² gives network managers
the ability to monitor and control B&B Electronics products. iView² runs
standalone on Windows NT/XP/2000/7 or as a Web Server running
under IIS.
* SFPs Sold Separately
ORDERInG InFORMATIOn
Model
NuMber
Fiber Fiber Ports raNge
iMcV-10g-Converter sFP+/sFP+*
860-12102
SFP+ 2 Various
ORDERInG InFORMATIOn
Model
NuMber
Fiber raNge
Fiber budget
(db)
ie-sFP+ Modules: 10 gbps ethernet (oC-192) with ddMi
808-38600
IE-SFP+ SR/10G-ED, MM850, LC 33 m 2.8
808-38601 IE-SFP+ LR/10G-ED, SM1310, LC 10 Km 8.4
i View
2
DEVICE MANAGEMENT APPLICATION
iView: Windows 2000/XP/Vista/Win7
iMcV-10G Converter SFP+_5013ds
